If your hot runner nozzles constantly suffer from heater burnouts or slow thermal recovery, switching to a Hongtai pressed-in brass Hot Runner heater solves the root cause: internal heat trapping.
By hydraulically pressing a heavy-duty heating coil into precision CNC-machined grooves inside a brass sleeve,Hongtai pressed-in brass Hot Runner heater eliminates micro-air gaps. The high thermal conductivity of brass (~115 W/m·K) transfers heat instantly into the nozzle body, preventing internal wire oxidation and stopping gate freeze-offs once and for all.
1.Why Do Standard Open Coils Keep Burning Out?
Air gaps kill heating elements. Air is a terrible heat conductor. When an open coil heater is clamped around an H13 tool steel nozzle, interfacial gaps larger than 0.1 mm block heat transfer.
- The Heat Trap: Your PID controller demands heat, but the energy can’t escape the coil quickly enough.
- Core Wire Breakdown: Internal NiCr 80/20 wire temperatures spike well past the 650°C continuous sheath limit, oxidizing the element in weeks.
- Moisture Breaker Trips: Trapped heat degrades the compacted MgO insulation. When the tool cools down over the weekend, the hygroscopic MgO draws in shop moisture, tripping your main ground breaker during Monday morning startup.
Pressing the coil tightly into a solid brass sleeve eliminates these air pockets, keeping internal wire temperatures well within safe operating margins.

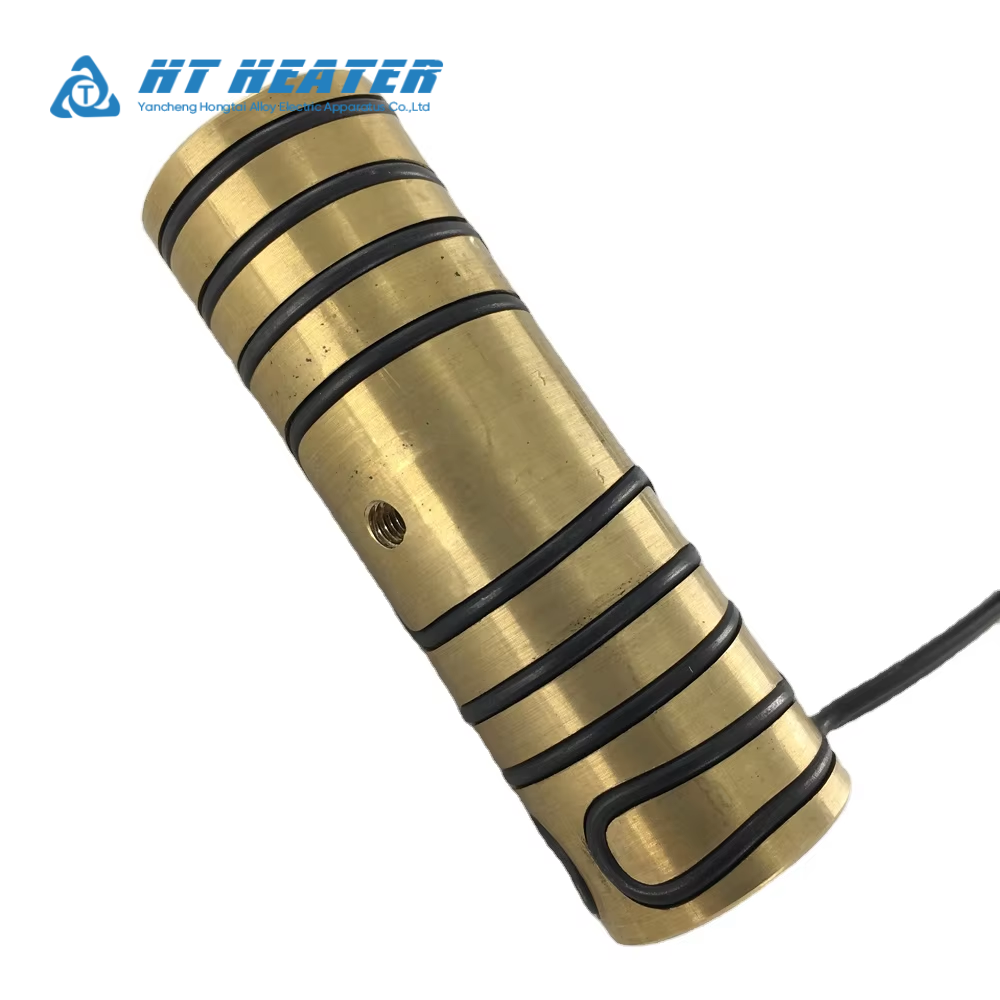

2.The Engineering Advantage of Pressed-in brass Hot Runner heater
A pressed-in brass coil heater combines precision CNC machining with mechanical tension to deliver superior thermal transfer:
1. ~8% Faster Thermal Response
Unlike cast-in brass units where molten metal can shift the coil pitch, a pressed-in brass sleeve features exact CNC-routed tracks. Holding the coil pitch consistent delivers precise heat distribution and ~8% faster thermal response—critical for high-speed PET preform or thin-wall packaging molds.
2. Zero Axial Coil Shift
Mechanical hydraulic pressing locks the coil permanently in place inside the brass sleeve. It won’t shift, stretch, or bunch up during thermal expansion cycles or mold maintenance.
3. Ingress Protection Against Plastic Leakage
When gate drool or cold-runner flash overflows an open coil, plastic seeps into the lead junction and carbonizes, causing immediate electrical short circuits. With an encapsulated brass sleeve, leaking resin stays on the outer brass jacket. Maintenance teams can easily scrape or burn off carbonized plastic without ruining the internal resistance wire.
3.Field Comparison: Open Coil vs. Cast-In vs. Hongtai Pressed-In Brass
| Engineering Metric | Standard Open Coil | Cast-In Brass Heater | Hongtai Pressed-In Brass Heater |
| Manufacturing Process | Wound spring coil | Molten liquid casting | CNC Machined Sleeve + Hydraulic Pressing |
| Air Gap Elimination | Poor (Relies on clamping) | Absolute | 100% Metal-to-Metal Interference Fit |
| Thermal Response Speed | Baseline (1x) | ~2.5x | ~3.2x (~8% advantage over cast-in) |
| Resin Leak Immunity | Low (Shorts out easily) | High | High (Heavy-duty brass sleeve barrier) |
| Coil Pitch Consistency | Variable (Hand wound / stretched) | Subject to molten shift | 100% Exact CNC Slot Repeatability |
| Max Sheath Rating | 450°C | 650°C | 650°C |

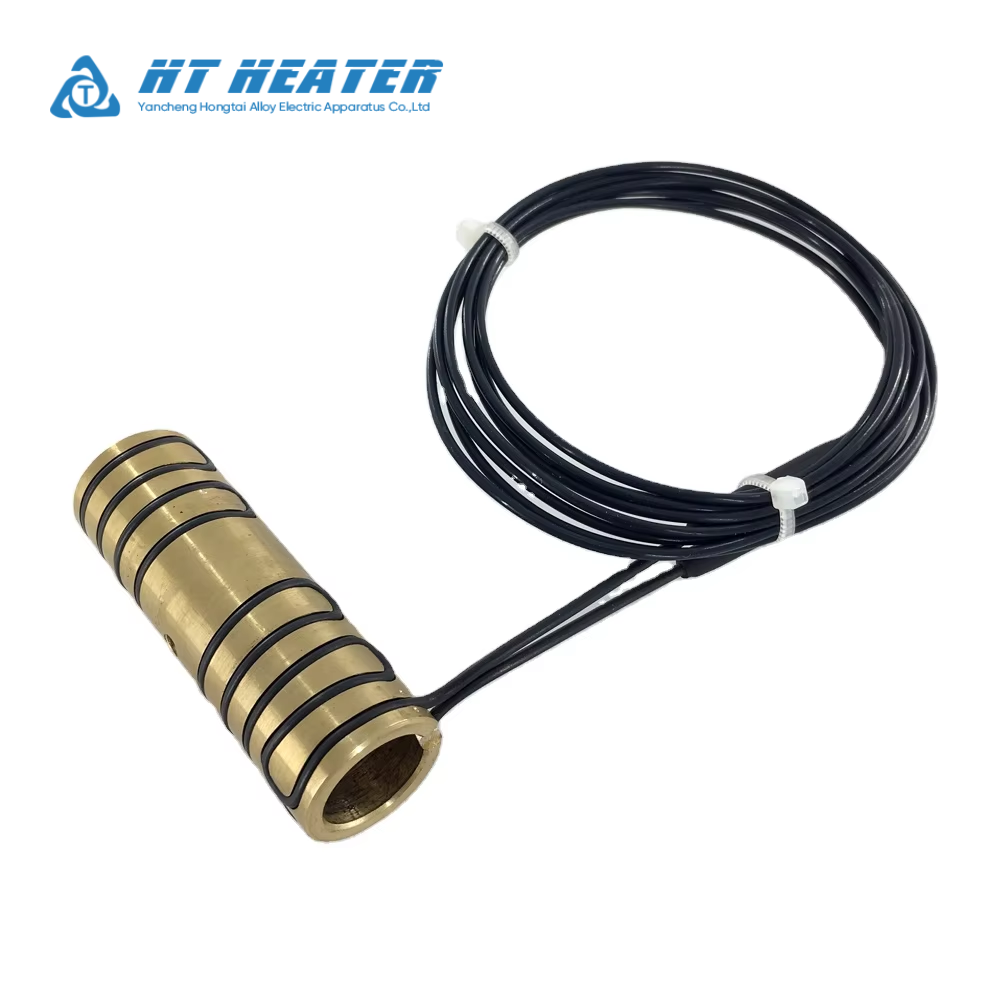

Hongtai Pressed-In Brass Heater:
5.Type J or Type K: How to Match Your Thermocouple Sensor
ccurate temperature control at the nozzle tip depends on choosing the correct thermocouple calibration integrated into the brass body:
- Type J Thermocouple (Fe-CuNi): Recommended for commodity resins (PP, PE, PS, ABS) running under 370°C. Its high voltage sensitivity (~50 to 55 µV/°C) gives your controller rapid, signal-stable feedback for tight gate temperature windows.
- Type K Thermocouple (NiCr-NiAl): Essential for high-temperature engineering polymers (PEEK, PEI, PPS, PA66) operating above 350°C. It resists continuous high-heat oxidation up to 1260°C sensor limits.
6.Source Custom HT-Series Brass Heaters for Your Next Tooling Project
Hongtai builds custom industrial heating elements engineered for high-cavitation molds, hot runner manifolds, and demanding injection molding setups.
Whether you need replacement HT-Series brass coil heaters or complete custom nozzle assemblies designed to your CAD drawings, we provide direct OEM manufacturing and fast global shipping.
- Browse our full product lineup on our Hongtai B2B Industrial Heater Solutions Page.
- Need custom CAD review or a fast quotation? Contact Hongtai Engineering Support today to get your mold running at peak efficiency.
