Core Value

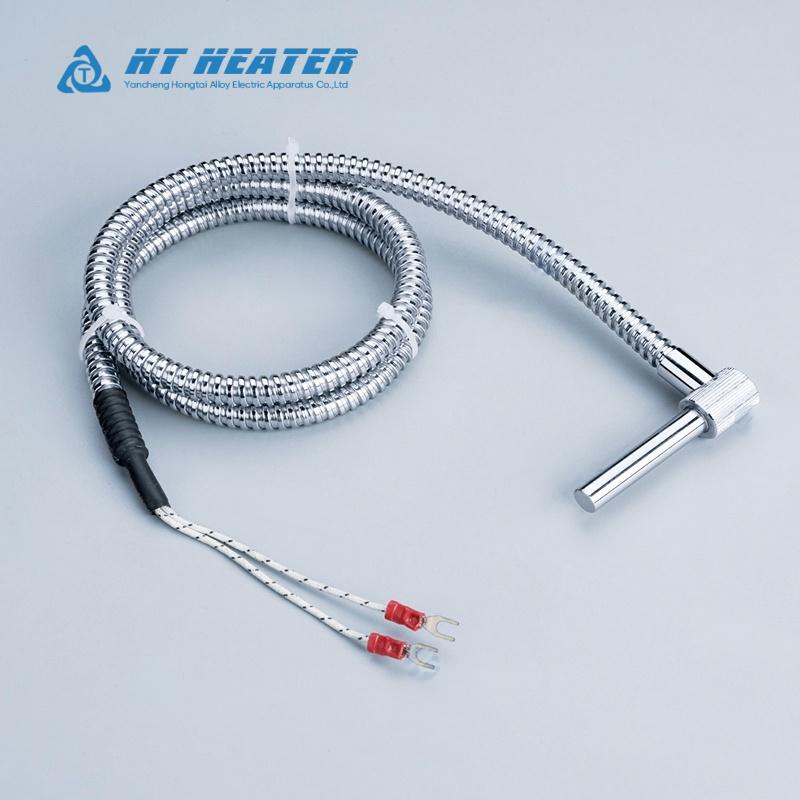

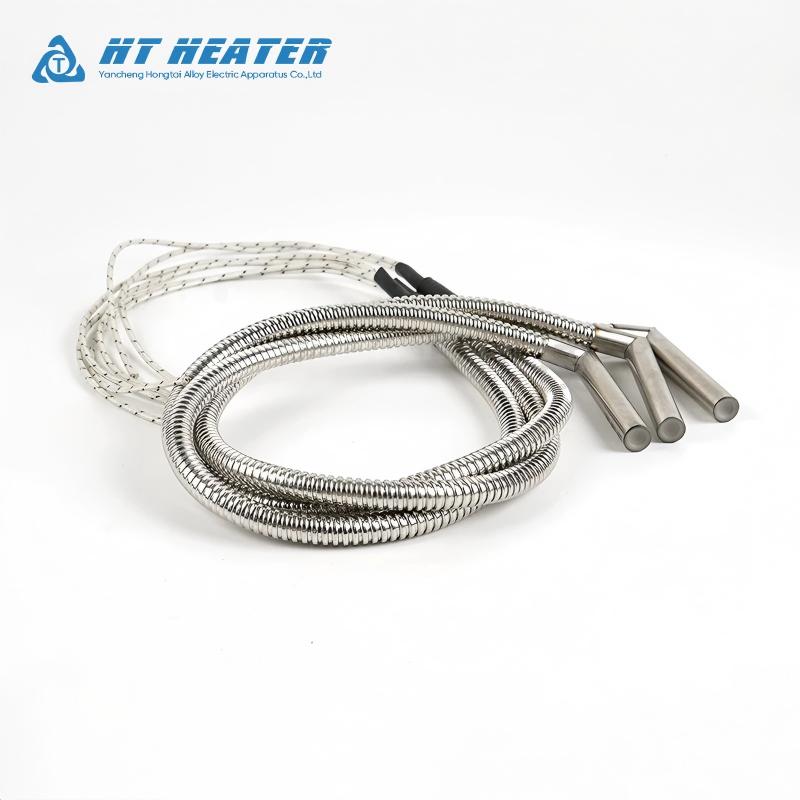

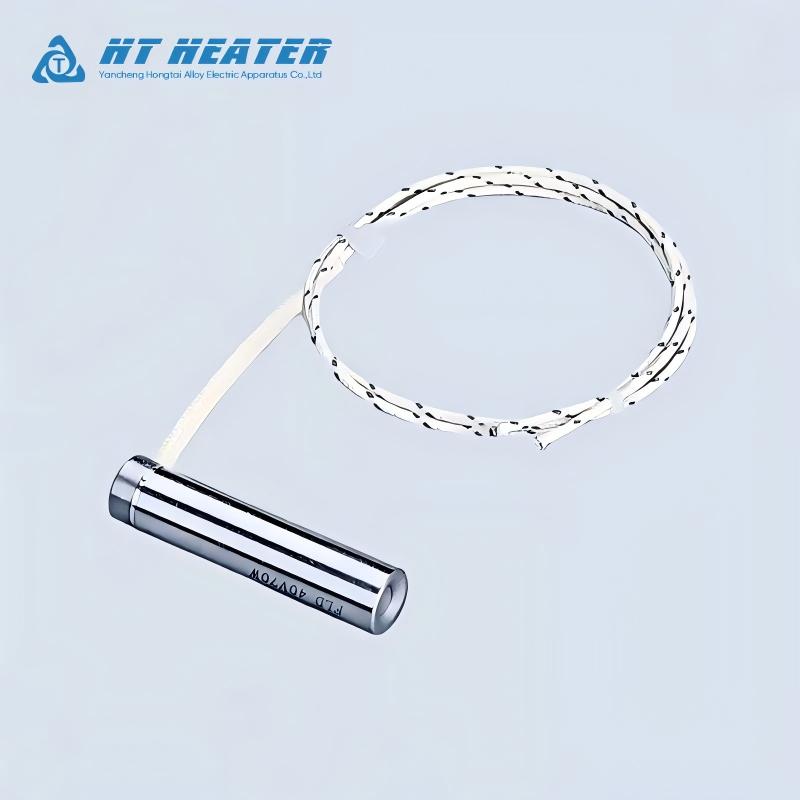

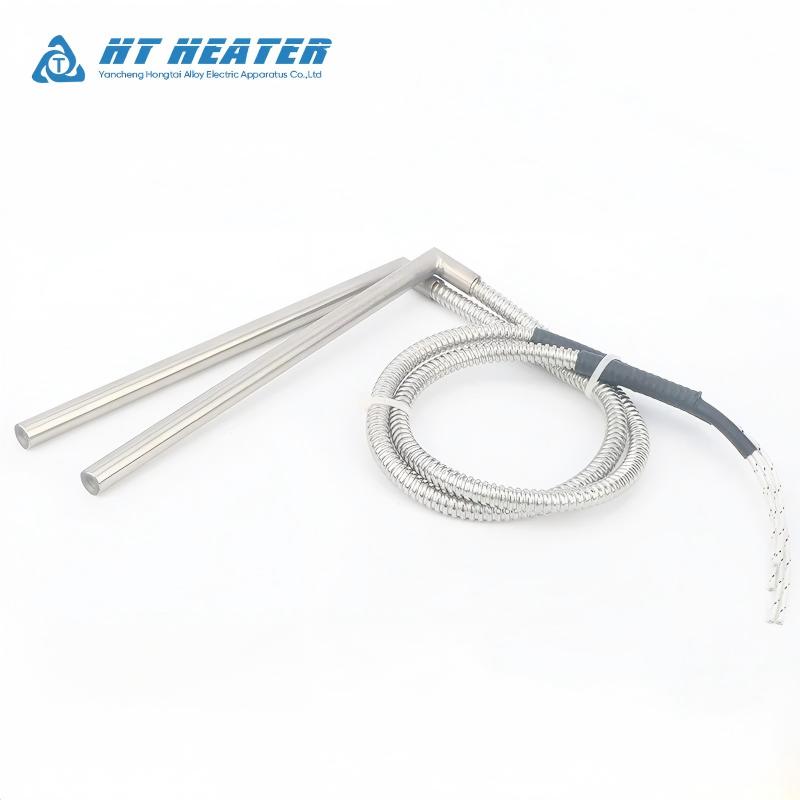

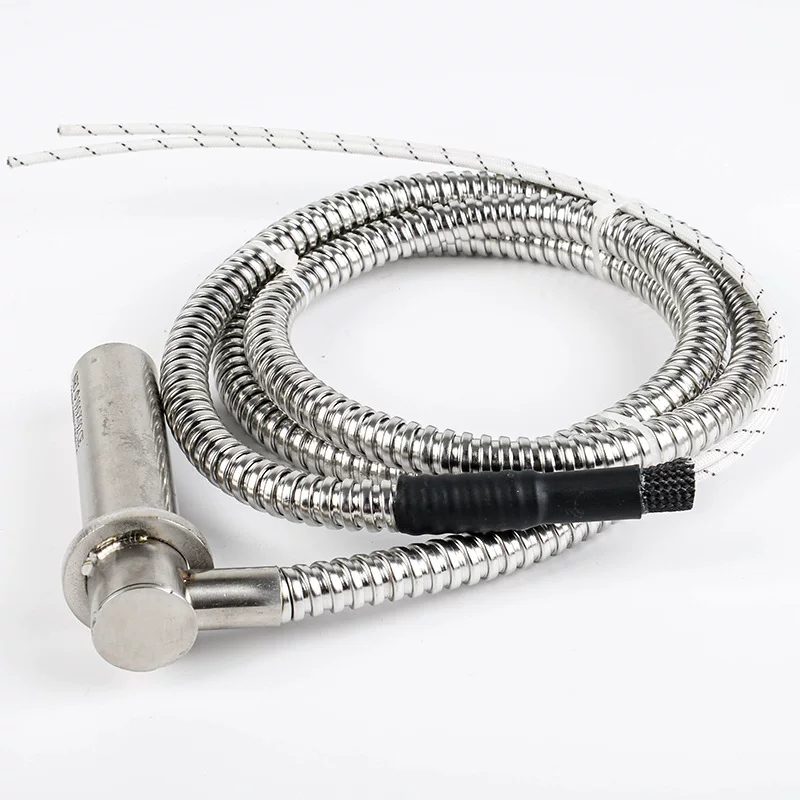

In complex injection molds, hot runner manifolds, and compact packaging jaws, engineers frequently face blind holes with minimal lateral clearance. Traditional straight heaters with external wiring elbows can still protrude too far, interfering with tie bars, slide cams, or machine casings. The Industrial L-Shape Cartridge Heater with Thermocouple solves this by physically bending the cold zone of the stainless steel sheath at a precise 90-degree angle, keeping the entire element flush with the mold profile.
Unlike standard heaters, this high-density L-shaped heater undergoes rigorous rotary swaging after the resistance wire and high-purity Magnesium Oxide (MgO) powder are loaded. This compaction ensures rapid thermal conductivity and dielectric strength.
Crucially, the integration of a built-in thermocouple (Type J or K) directly inside the heated tip eliminates the need to drill a secondary hole for a separate temperature probe. This guarantees that the PID controller receives instantaneous, accurate feedback directly from the heat source, preventing thermal lag and eliminating the risk of overheating sensitive plastics, rubber, or packaging films.
Industrial Applications & Solutions
This advanced L-shaped mold heater is the premier choice for high-cycle, space-constrained industrial machinery:
-
Hot Runner Systems & Injection Molds: Fits into narrow manifold plates and sprue bushings, ensuring uniform melt temperatures while clearing mold clamp plates.
-
Packaging & Heat Sealing Equipment: Embedded in horizontal flow-wrapper jaws where rotating mechanisms prevent the use of standard straight heaters.
-
Semiconductor & Medical Device Tooling: Provides localized, ultra-precise heating in micro-fluidic testing blocks and wafer processing plates.
-
Shoe Manufacturing Machinery: Installed in aluminum and steel sole-molding presses requiring compact lateral wiring exits.
-
Aerospace Composite Curing: Delivers targeted heat to complex contoured forming dies and composite layup tools.
Hongtai Heater Factory Advantage: Why Choose Our L-Shape Heaters?
| Feature | HT Heater L-Shape Heater | Generic Market Heaters | Your Operational Advantage |
| Bend Zone Integrity | Precision CNC mandrel bending with unheated cold zones | Heating wire stretched into the bend, causing localized burnout | Zero risk of sheath cracking or hot-spot burnouts at the 90-degree corner. |
| Thermocouple Accuracy | Calibrated Class 1 sensor wire accurately positioned at the tip | Recycled alloy wire placed randomly inside the tube | True closed-loop control; eliminates temperature overshoot and product defects. |
| Sheath Precision | Centerless ground to strict H7 bore tolerances | Uneven extrusion with surface burrs | Slides perfectly into mold holes for maximum conductive heat transfer and longer lifespan. |
| Lead Wire Anchoring | Internal nickel pin crimping with strain relief | External spot welds that snap under tension | Prevents wire detachment caused by machine vibration or routine maintenance handling. |
Installation & Handling Guidelines
- Keep the Bend Unheated: The 90-degree bent section of the Industrial L-Shape Cartridge Heater is engineered as a cold zone. Never attempt to force the bent section into the heated bore, and ensure the active heating zone is fully submerged in the straight metal tooling hole.
- Ream to H7 Tolerance: For maximum lifespan, the mold hole must be reamed to an H7 tolerance. The clearance between the heater outer diameter and the bore should not exceed 0.05 mm to 0.08 mm.
- Thermocouple Wiring Polarity: When connecting the built-in sensor to your PID controller, observe strict polarity. For Type K (Yellow/Red in ANSI), Yellow is positive (+). For Type J (White/Red in ANSI), White is positive (+). Reversing these will cause erratic controller behavior.
- Avoid Modifying the Bend: Never attempt to manually bend, straighten, or adjust the L-shape angle of the metal sheath in the field. This will fracture the internal compacted MgO insulation and sever the internal resistance wire.
Customer Success Stories
Case 1:
Automotive Connectors Injection Molder (Italy)
-
Application: Micro-injection molding hot runner system for polyamide (PA66) electrical connectors.
-
Challenge: The manifold design left only 15mm of clearance between the heater exit and the machine’s hydraulic ejector plates, making straight heaters impossible to wire. Furthermore, separate thermocouple holes could not be drilled due to limited steel mass.
-
Solution: HT Heater designed a custom Industrial L-Shape Cartridge Heater with an integrated Type J thermocouple, featuring a precise 12mm cold-zone bend.
-
Results: SEAMLESS INTEGRATION & PERFECT TEMPERATURE CONTROL. The L-shape profile easily cleared the ejector plates, and the built-in sensor maintained the PA66 melt temperature within ± 1°C, dropping the defect rate to near zero.
Case 2:
Pharmaceutical Blister Packaging OEM (USA)
-
Application: Rotating rotary drum sealing jaws operating at 150 cycles per minute.
-
Challenge: Centrifugal force and tight clearances caused standard straight cartridge heaters to back out of their bores, while external wiring was constantly subjected to shearing forces.
-
Solution: Adopted Hongtai’s L-shaped cartridge heaters with stainless steel braided leads and integrated Type K sensors, secured with custom mounting flanges.
-
Results: MAINTENANCE DOWNTIME REDUCED BY 90%. The rigid 90-degree metal bend hugged the rotating drum safely, and the internal sensor provided lightning-fast thermal feedback to the PLC.
Pricing & Procurement Options
-
Standard Production: MOQ 5 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact resistance matching and dimensional repeatability across production lots. Tiered volume discounts available for 50+ unit orders.
-
Lead Times: Standard Catalog Dimensions (Straight Rods OD 12–30 mm): In stock, 3-5 days. Custom Single/Double Spiral Shapes or Heavy Diameters (OD 35–54 mm): 7-10 days. Express air freight with protective wooden crating.
-
Global Logistics: Encased in individual shock-absorbing foam tubes within reinforced wooden export crates to prevent transportation breakage.
-
Sample Orders: Custom sample elements produced upon CAD drawing and electrical specification approval. Every shipment UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.
Global Certifications & Compliance
- CE Marking
Fully compliant with European safety and environmental standards. - LVD Compliance
Low Voltage Directive tested for continuous thermal load safety. - RoHS Compliant
Constructed using environmentally safe, lead-controlled brass alloys. - ISO 9001
Certified quality control covering CNC machining, coil pressing, and electrical testing.
Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.
Comprehensive After-Sales Support
-
- Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.
-
Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.
-
Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
Ready to Optimize Your Injection Molding?
Next Steps:
- 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
- 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
- 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
- 📞 Contact Hot Runner Experts – Response within 2 hours
-
