Core Value

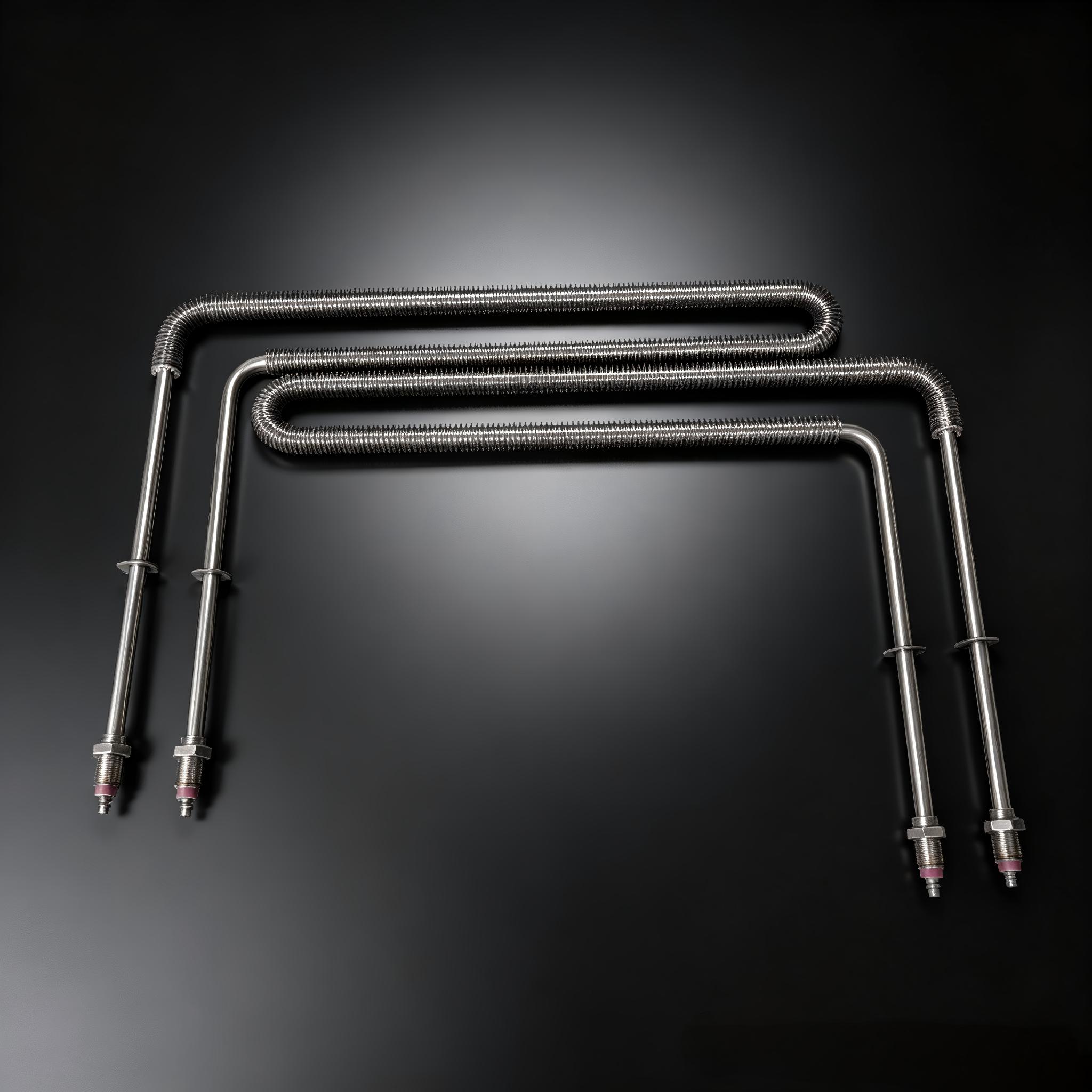

In forced-air heating applications like load banks, curing tunnels, and recirculation ducts, standard smooth tubular heaters often struggle to dissipate heat fast enough, leading to high sheath temperatures and premature element failure. The Industrial 220V 3KW L Shape Finned Tubular Air Heater solves this thermal bottleneck by helically wrapping continuous steel fins around the central heating tube. This increases the effective heat transfer surface area by 200% to 300%, drastically lowering the surface temperature of the element while instantly warming the passing air.

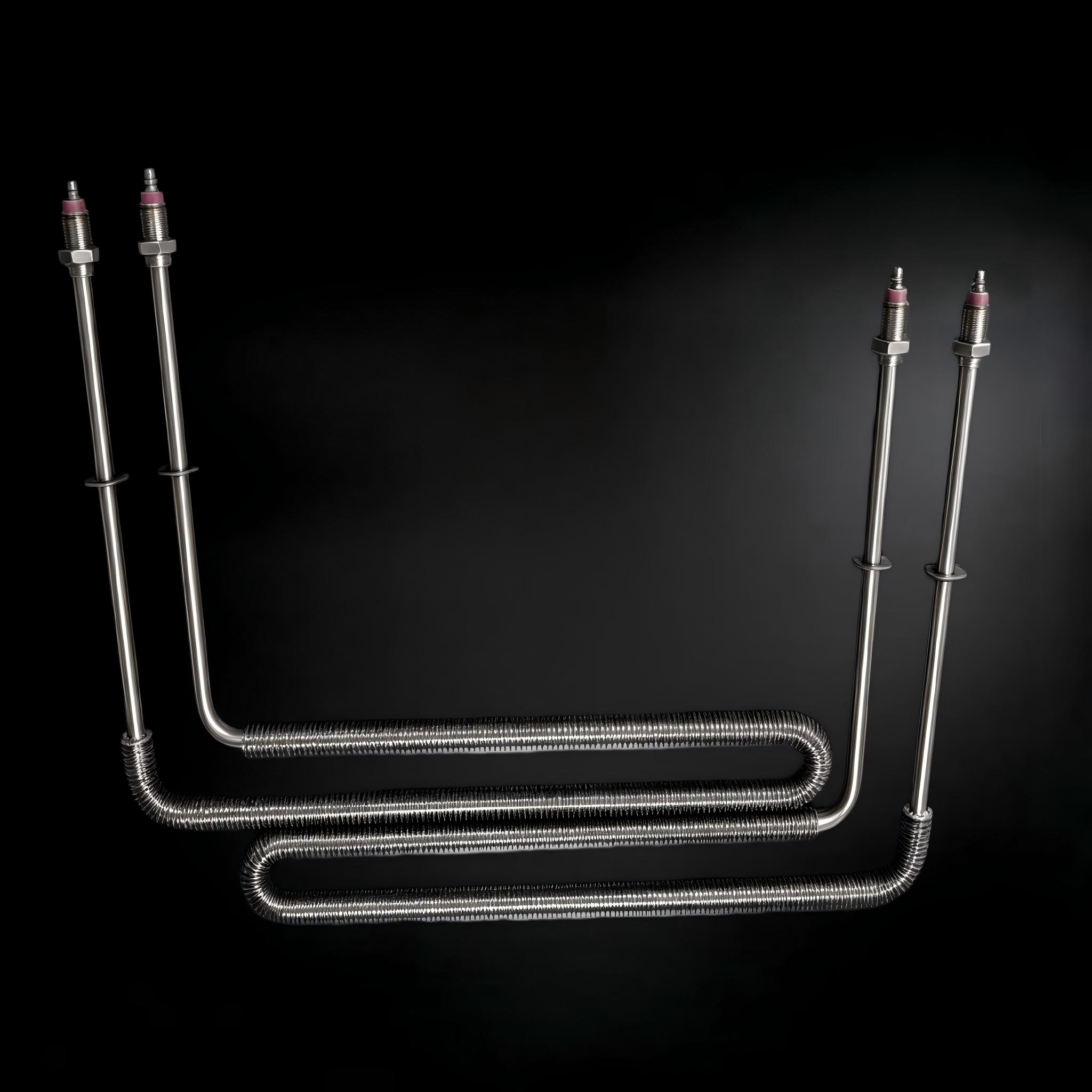

The strategic L-Shape (90-degree) geometry is specifically designed for side-mounting in square or rectangular air ducts. By bending the cold zone at a right angle, the threaded terminal connections and wiring are kept completely isolated on the exterior of the insulated duct wall. This prevents the high-temperature airstream from melting wire insulation, oxidizing terminal connections, or causing electrical shorts.
Filled with high-density, rotary-swaged Magnesium Oxide (MgO) powder and powered by premium Ni80Cr20 resistance wire, this 220V 3KW finned heater delivers rapid, continuous thermal output with zero power decay.
- ✓ Maximized Thermal Dissipation: Helically wound fins expand the surface area, ensuring rapid heat transfer and preventing element burnout in high-wattage (3KW) applications.
- ✓ Protective L-Shape Geometry: The 90-degree terminal exit keeps sensitive electrical wiring completely outside the high-temperature baking or HVAC chamber.

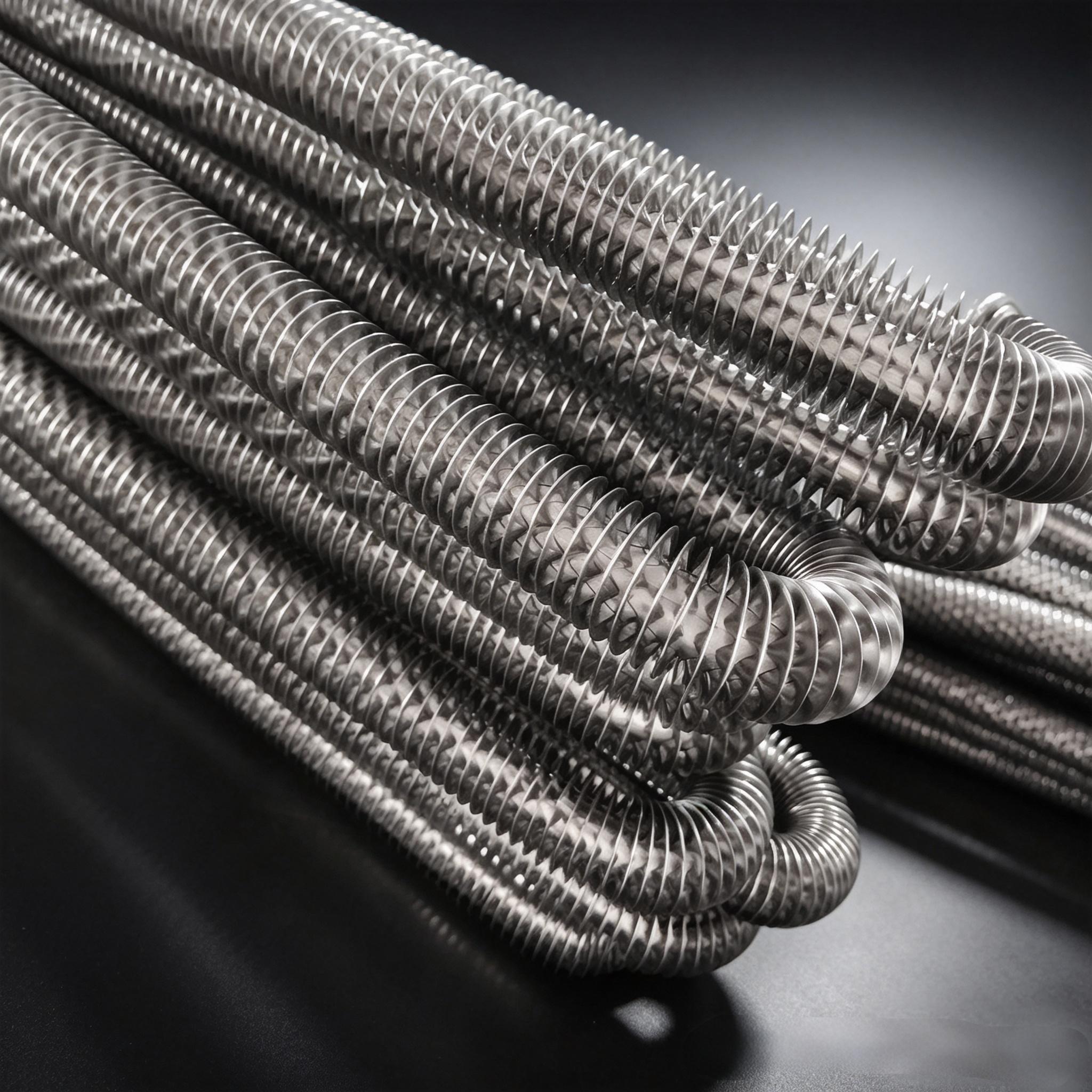

- ✓ Heavy-Duty Construction: Available in full SUS304 or SUS321 stainless steel (both tube and fins) to resist moisture, oxidation, and corrosive industrial air.
- ✓ Vibration-Resistant Design: Swaged MgO core and tightly brazed/crimped fins withstand the constant mechanical vibration of high-speed blower fans.
- ✓ Direct OEM Manufacturing: Fully customizable leg lengths, fin pitches, wattages, and voltages supplied directly by Hongtai Heater Factory.
Industrial Applications & Solutions
This high-efficiency finned tubular heater is widely deployed across forced-air and drying industries:
-

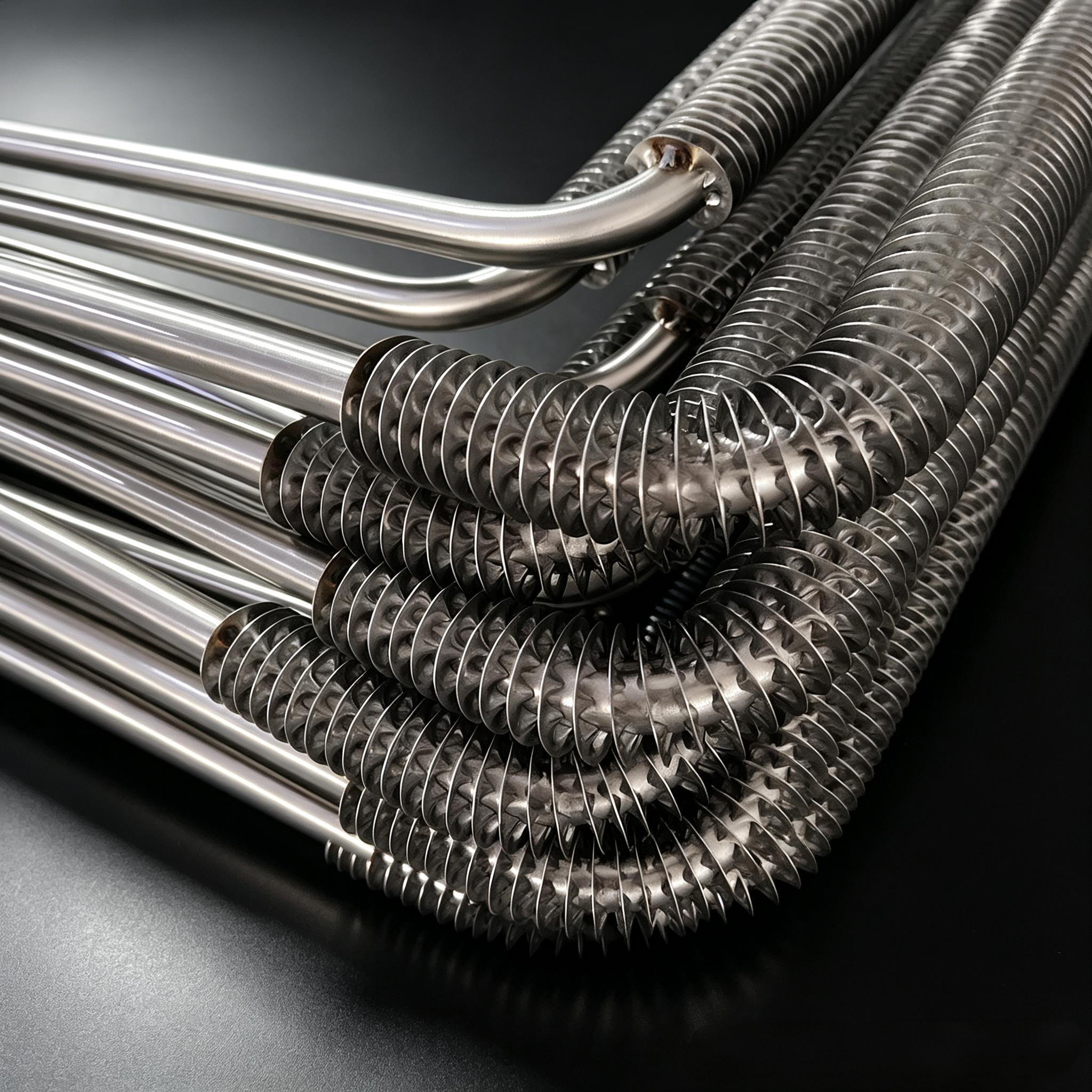

HVAC & Air Handling Units (AHUs): Side-mounted in rectangular ductwork for building space heating and industrial make-up air preheating.
-

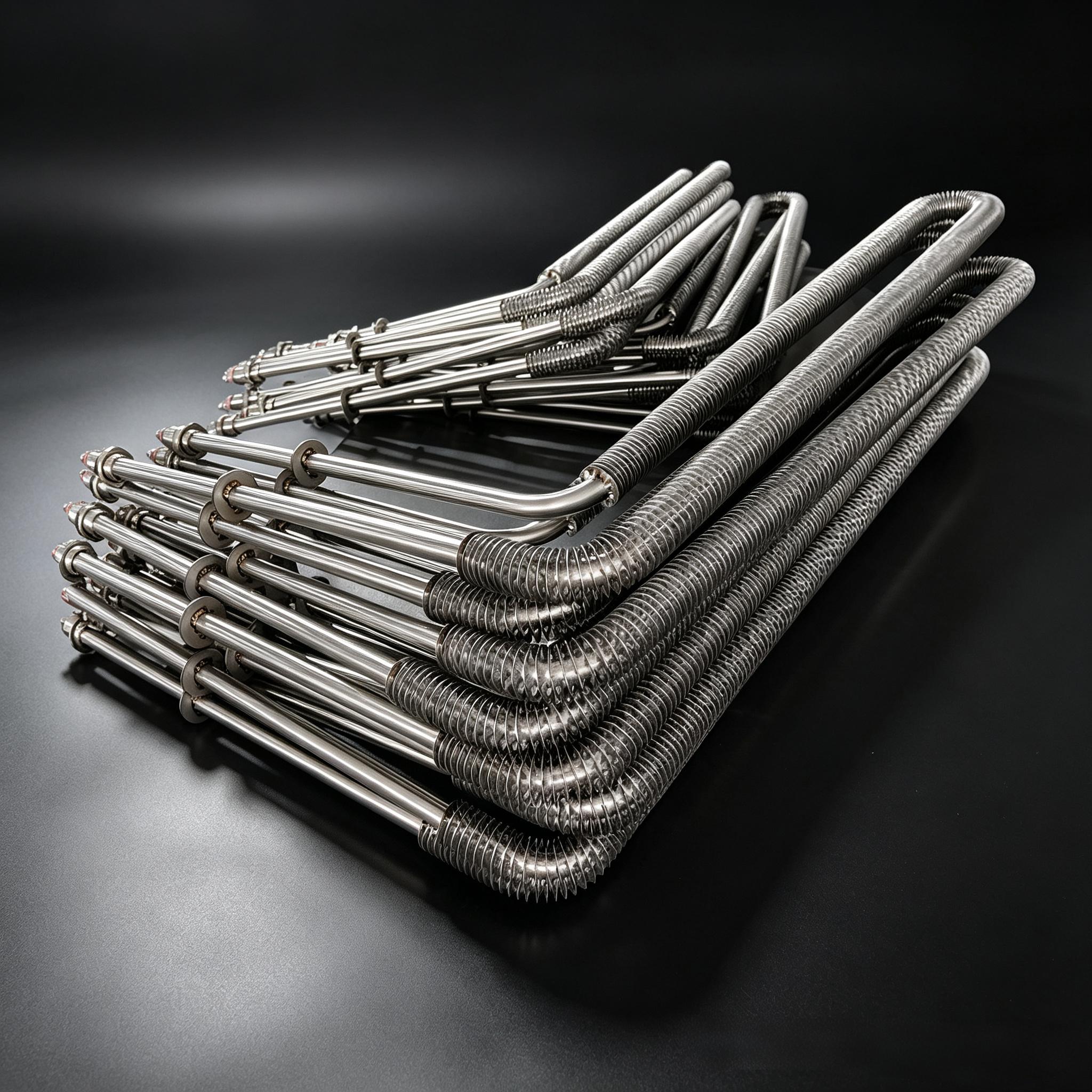

Industrial Drying Ovens: Provides rapid hot air circulation for paint curing, powder coating, and lumber drying kilns.
-
Load Banks & Testing Equipment: Acts as a high-wattage (3KW) resistive load for generator testing, safely dissipating massive amounts of electrical energy as heat.
-
Food Processing & Dehydration: Utilizes sanitary stainless steel fins to heat air in commercial food dehydrators and baking tunnels.
-
Shrink Packaging Tunnels: Delivers high-velocity hot air to instantly shrink plastic wrapping film on conveyor lines.
Hongtai Heater Factory Advantage: Why Choose Our Finned Heaters?
| Feature | HT Heater Finned Element | Low-Cost Generic Air Heaters | Your Operational Advantage |
| Fin Attachment | High-frequency continuous tension winding/brazing | Loose crimping that separates during thermal expansion | Fins stay tightly bound to the tube, maintaining 100% heat transfer efficiency over years of use. |
| Internal Insulation | Rotary-swaged high-purity MgO | Loose, uncompacted powder | Prevents the internal 3KW resistance wire from overheating and snapping. |
| Bend Precision | CNC mandrel bending | Manual bending causing tube crimping | The 90-degree corner maintains perfect wall thickness without restricting internal heat flow. |
| Cold Zone Isolation | Precisely calculated unheated zones at the L-bend | Heating wire extends into the duct wall | Prevents the equipment insulation panel from catching fire or scorching. |
Installation & Handling Guidelines
-
Mandatory Forced Airflow: A 3KW finned heater generates massive thermal energy. It must only be operated with an active blower/fan (forced convection). Operating this specific high-wattage element in static (still) air will cause the fins to glow red and destroy the heater within minutes.
-
Proper Terminal Clearance: When installing the L-Shape Finned Tubular Air Heater, ensure the 90-degree cold zone passes completely through the insulation wall. The threaded terminals must be exposed to ambient room air to prevent wiring failure.
-
Element Spacing: If installing multiple 3KW heaters in a single duct bank, maintain a minimum spacing of 20mm to 30mm between the fins of adjacent elements to allow unrestricted airflow and prevent localized overheating.
-
Airflow Direction: Mount the heater so that the airflow passes perpendicularly across the finned section to maximize turbulence and heat exchange efficiency.
-
Safety Interlocks: Always wire the heater into an airflow switch or fan contactor. If the blower fails, the heater must automatically shut off to prevent fire hazards.
Customer Success Stories
Case 1:
HVAC Commercial Duct Manufacturer (Canada)
-
Application: Supplemental make-up air heating units for commercial warehouses operating in extreme sub-zero winters.
-
Challenge: Straight finned heaters required terminal boxes to be mounted inside the airstream, which caused aerodynamic drag and frequent terminal oxidation.
-
Solution: Transitioned to Hongtai Heater Factory‘s custom 220V 3KW L Shape Finned Tubular Air Heaters.
-
Results: ZERO TERMINAL FAILURES & IMPROVED AIRFLOW. The 90-degree exit routed all electrical connections safely outside the duct, while the 3KW finned sections delivered instant, turbulence-free air heating.
Case 2:
Industrial Powder Coating Equipment Builder (Turkey)
-
Application: Recirculating hot air curing ovens requiring rapid ramp-up to 200°C.
-
Challenge: Existing plain tubular heaters could not transfer heat fast enough, leading to slow oven start times and high energy consumption.
-
Solution: Upgraded the oven plenums with a bank of Hongtai SUS304 finned L-shaped heaters.
-
Results: OVEN RAMP-UP TIME REDUCED BY 35%. The expanded fin surface area maximized heat transfer to the circulating air, cutting production cycle times and drastically lowering sheath fatigue.
Pricing & Procurement Options
-
Standard Production: MOQ 5 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact resistance matching and dimensional repeatability across production lots. Tiered volume discounts available for 50+ unit orders.
-
Lead Times: Standard Catalog Dimensions (Straight Rods OD 12–30 mm): In stock, 3-5 days. Custom Single/Double Spiral Shapes or Heavy Diameters (OD 35–54 mm): 7-10 days. Express air freight with protective wooden crating.
-
Global Logistics: Encased in individual shock-absorbing foam tubes within reinforced wooden export crates to prevent transportation breakage.
-
Sample Orders: Custom sample elements produced upon CAD drawing and electrical specification approval. Every shipment UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.
Global Certifications & Compliance
- CE Marking
Fully compliant with European safety and environmental standards. - LVD Compliance
Low Voltage Directive tested for continuous thermal load safety. - RoHS Compliant
Constructed using environmentally safe, lead-controlled brass alloys. - ISO 9001
Certified quality control covering CNC machining, coil pressing, and electrical testing.
Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.
Comprehensive After-Sales Support
-
- Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.
-
Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.
-
Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
Ready to Optimize Your Injection Molding?
Next Steps:
- 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
- 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
- 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
- 📞 Contact Hot Runner Experts – Response within 2 hours
-
