Sourcing custom thermal components is not as simple as buying off the shelf. When you ask, “How much is a silicone heater?”, the honest engineering answer is: “It depends.”
A heater designed for a 3D printer bed is radically different from one designed for a medical IV warmer, even if they are the same size. Missing a single parameter—like lead wire exit location or sensor type—can delay your quote by days or lead to a prototype that doesn’t fit your housing.
As a Factory-Direct Manufacturer with 30+ years of OEM experience, HT-Heater wants to help you fast-track your project. This guide outlines the 5 Core Specs needed for an accurate BOM quote, explains our “Refundable Sample” policy, and shows you how to go from a napkin sketch to mass production in under 3 weeks.

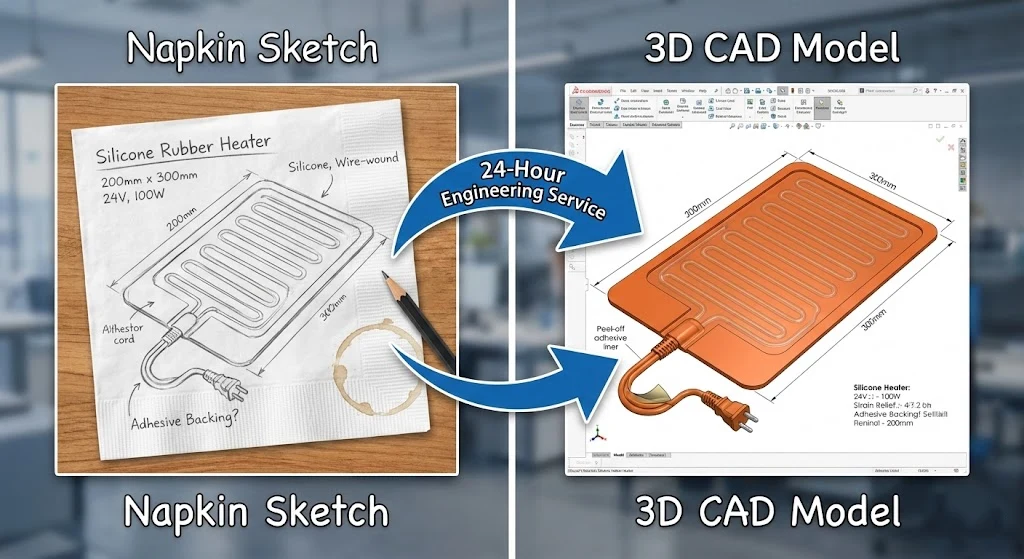

Don’t have a CAD file? No problem. Our engineers can digitize your hand-drawn sketches.
To provide a binding price within 24 hours, our engineers need to define the following variables.
A. Dimensions & Geometry
Basics: Length x Width (Rectangular) or Diameter (Circular).
Complex Shapes: We can manufacture “Odd-shaped” heaters with notches, angles, or cutouts.
Holes: If you need holes for mounting bolts, please specify the Diameter and X/Y Coordinates of the center point.
Engineering Note: We need at least a 3-5mm “No-Heat Zone” around any hole to seal the internal element.
B. Electrical Parameters (Voltage & Power)
Voltage: 12V/24V DC (Mobile/Battery), 120V AC (US), or 230V AC (EU/Industrial)?
Power: Specified in Watts.
Not sure? Tell us your Target Temperature and the Mass/Material of the object you are heating. Our engineers will calculate the required thermal energy (Joules) and recommend a wattage for you.
C. Lead Wire Configuration
Length: Standard is 200mm. We can provide any length (e.g., 2 meters).
Exit Position:
Face Exit: Wires come out of the flat surface (requires a hole in your pressure plate).
Edge Exit: Wires come out of the side (best for thin profiles).
Connectors: Do you need bare wires, or pre-terminated plugs (JST, Molex, Anderson, SAE)?
D. Mounting Method
PSA Adhesive: 3M 468MP (Standard).
Mechanical: Holes for springs, eyelets, or Velcro.
Factory Vulcanization: Bonded permanently to your metal part (Best heat transfer).
E. Sensor Integration
Do you need temperature control?
NTC 100K Thermistor: For digital control.
Thermocouple (Type K/J): For industrial PLC.
Thermostat: A simple bimetal switch (e.g., “Open at 80°C”) for overheat protection.
2. No Drawing? No Problem.
We offer Reverse Engineering services to replicate existing parts.
Many of our clients are startups or maintenance managers who don’t have a dedicated CAD team.
Hand Sketch to CAD
Simply draw your heater on a piece of paper. Mark the dimensions, wire exit location, and voltage/wattage. Take a photo with your phone and email it to us. Our engineering team will generate a DWG/PDF approval drawing for you before production begins.
Looking for a cost-effective alternative to a retail brand?
Send us the physical sample of the heater you are currently using. We will measure it, analyze the internal circuit density, and create a 1:1 Replica (often with improved materials) at a lower bulk price.
3. Commercial Terms: Samples, MOQ & Lead Time
We operate as an industrial partner, not a retail store. Here is how our business model works for you.
The “Refundable Sample” Policy
Q: Why do you charge for samples?
A: Custom heaters require Non-Recurring Engineering (NRE) costs: plotting the film, creating the silk screen or etching mask, and setting up the vulcanizing press.
The Promise: We treat the sample fee as a “Deposit.” When your subsequent mass production orders reach a certain value (typically $5,000 USD), we refund 100% of the sample tool cost.
Minimum Order Quantity (MOQ)
Prototype Phase: 1 – 5 pieces.
Pilot Run: 10 – 50 pieces.
Mass Production: 50+ pieces (Volume discounts apply).
Note: We are flexible. If you are a startup scaling up, we will grow with you.
Lead Time Expectations
Standard Samples: 5 – 7 Business Days.
Mass Production: 7 – 15 Business Days (depending on quantity).
Expedited Service: Available for urgent line-down situations (additional fee applies).
4. Why Choose HT-Heater? (The Factory Advantage)

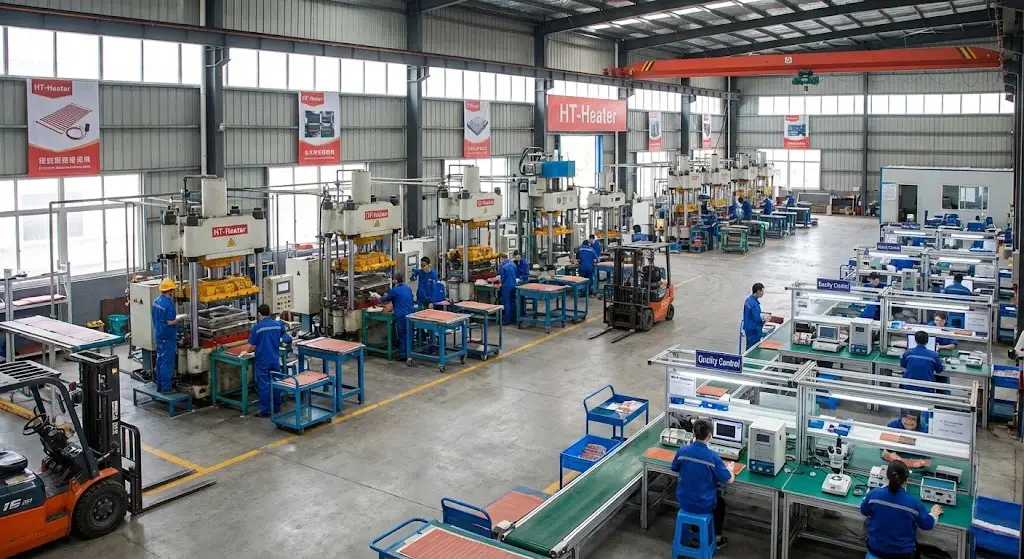

Buy directly from the source. No trading companies, no middleman markups.
Factory Direct = Engineering Direct
When you buy from a trader, your technical questions go through a game of “Telephone.” When you work with HT-Heater, you speak directly to the engineers who design the etched foil circuits. This eliminates errors and speeds up development.
30 Years of Compliance
We don’t just make heaters; we make certified components.
ISO 9001:2015 Quality Management.
UL / CE / RoHS material compliance for global export.
Trusted by OEMs in Medical (IVD), Automotive (EV Battery), and Semiconductor industries.
RFQ Quick-Check Table
Copy and paste this into your email to ensure a fast quote:
Parameter
Requirement (Example)
Dimensions
200mm x 200mm
Voltage
24V DC
Power
150 Watts
Target Temp
Maintain 80°C
Mounting
3M 468MP Adhesive
Sensor
NTC 100K 3950 (300mm leads)
Wire Length
500mm Silicone Wire
Quantity
10 pcs (Trial), 500 pcs (Annual)
Ready to get your project moving?
Don’t wait days for a generic price list. Get an engineering-verified quote in 24 hours.
