Standard Injection Molding Machine Heater Bands (Mica Series)
In the highly competitive plastics manufacturing sector, equipment downtime and slow heat-up cycles directly erode profit margins. Designed specifically for shop supervisors and MRO procurement teams, Hongtai Injection molding machine heater bands are the undisputed “Workhorse of Injection Molding.”
Engineered for standard plastic injection machines and small-scale blow molding equipment, this Mica band heater provides rapid thermal response and uniform heat distribution across the barrel. With its ultra-thin profile, it easily fits into the tight clearances between the barrel and the machine’s safety shrouds, making it the most cost-effective and reliable choice for bulk maintenance replacements.
1. The Anatomy of High-Performance Mica Heaters
The core of our Injection molding barrel heater relies on proven, robust materials. Heat is generated by a precision-wound Nickel-Chromium (NiCr 8020) resistance wire, carefully spaced to ensure an even thermal profile across the entire surface area.
This element is insulated by high-dielectric, high-temperature mica sheets. Mica is selected for its excellent electrical insulation properties and extremely low thermal mass. This allows the heat to transfer almost instantly from the internal wire, through the stainless steel outer sheath, and directly into the machine barrel.
The outer stainless steel sheath resists rust, prevents high-temperature oxidation, and provides the rigid mechanical support required to clamp the heater tightly against the cylinder.
2. Rapid Response & Efficiency
Because of the thin construction of these Mica heaters, they boast an incredibly fast heat-up and cool-down rate. When your PLC or PID controller calls for heat, the energy transfers immediately to the plastic melt. When the setpoint is reached, the lack of heavy thermal mass prevents temperature overshoot, protecting sensitive resins from degradation and burning.
3. Comprehensive Technical Specifications
Our standard bands are manufactured to strict tolerances, ensuring a perfect fit and prolonged lifespan.
| Parameter | Industrial Specification | Notes |
| Product Category | Injection molding machine heater bands | Standard 1-Piece Design |
| Resistance Wire | Nickel-Chromium (NiCr 8020) | High temp stability |
| Insulation Material | Premium Grade Mica Plate | Excellent dielectric strength |
| Sheath Material | Stainless Steel | Rust and oxidation resistant |
| Maximum Watt Density | 3 W/cm² (19 W/in²) | Wattage tolerance: +5% / -10% |
| Maximum Operating Temp | 340°C (644°F) | Surface temperature |
| Minimum Diameter | 25 mm (1 inch) | Fits small nozzles |
| Minimum Height | 25 mm (1 inch) | Narrow band configurations |
| Clearance Required | Ultra-Thin Profile | Minimizes space constraints |
4. Clamping and Termination Options
A heater band must be clamped tightly to transfer heat via conduction. A loose heater will burn itself out in a matter of days. We offer robust clamping mechanisms specifically designed for the vibration of injection molding:
-

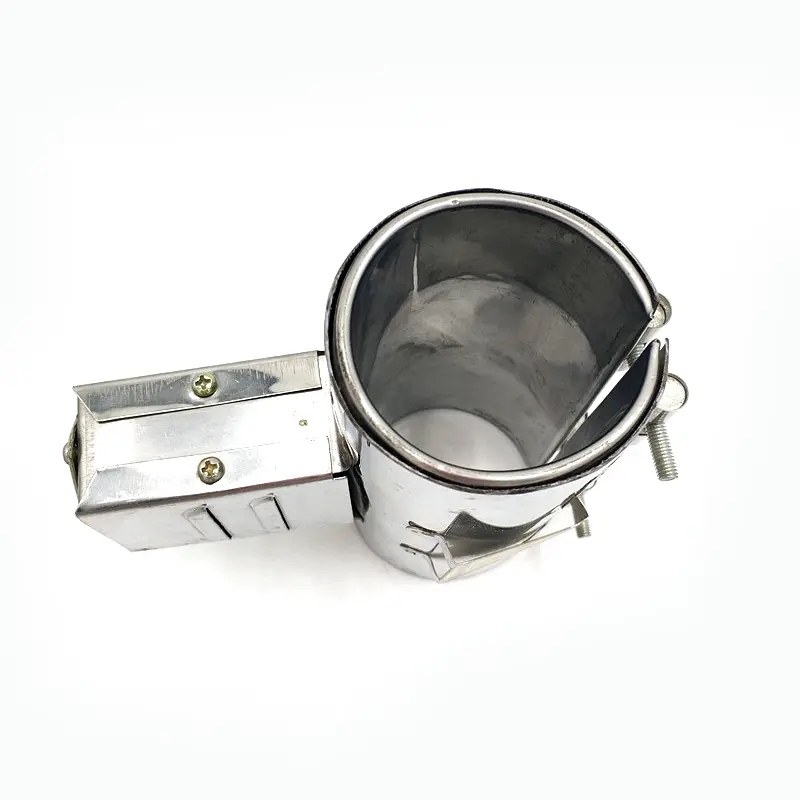

Built-in Barrel Nut: The industry standard. Low profile and provides high tension to keep the Mica band heater flush against the steel barrel.
-
Independent Strap: A separate stainless steel strap that wraps around the heater, allowing for maximum clamping force on smaller diameters.
Terminations:
-
Screw Terminals: Heavy-duty threaded posts (e.g., M4 or M5) for secure ring-terminal connections.
-
Fiberglass Leads: Straight-out flexible wires protected by high-temperature fiberglass insulation, perfect for tight spaces where terminal boxes won’t fit.
5. Target B2B Applications
-
Plastic Injection Molding: The primary heat source for plasticizing barrels and nozzles.
-
Blow Molding: Heating the extruder barrel to ensure consistent parison drop.
-
Plastic Extrusion: Ideal for smaller extrusion dies and crossheads.
-
Food & Pharmaceutical: Clean stainless steel construction is suitable for sanitary packaging machinery.
6. Frequently Asked Questions (FAQ)
Q: Why do my current heater bands keep burning out prematurely?
A: 90% of premature failures in Mica heaters are caused by poor installation. If the band is not clamped completely tight against the barrel, the heat cannot transfer into the steel. The heat gets trapped inside the heater, melting the internal NiCr wire. Always retighten the barrel nuts after the machine has reached operating temperature.

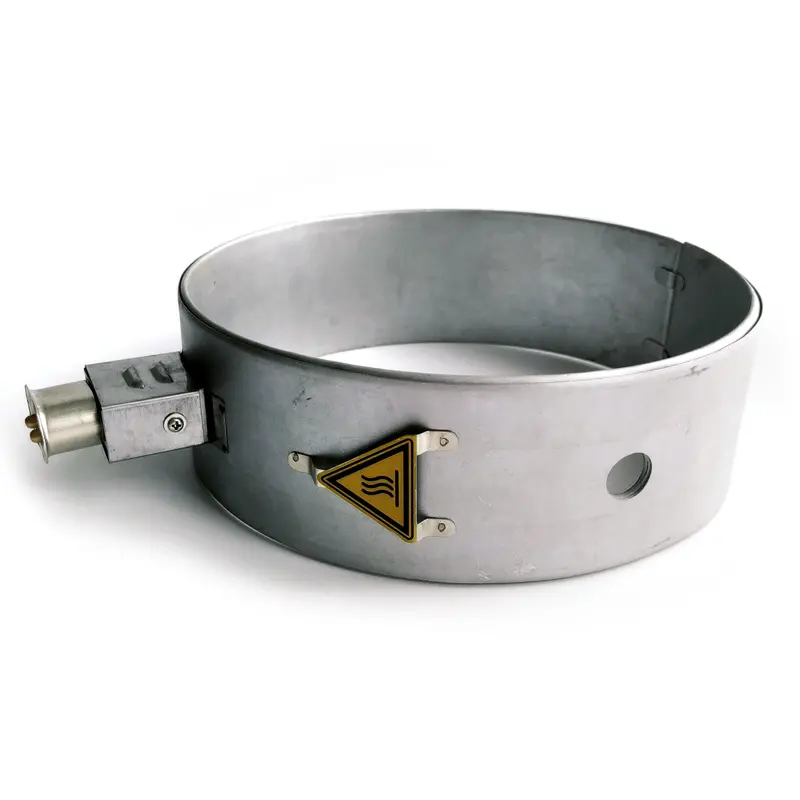

Q: Can you accommodate thermocouple holes?
A: Yes. We can manufacture your Injection molding barrel heater with custom cut-outs, slots, or holes to accommodate your existing Type J or Type K thermocouples without compromising the heating element path.
