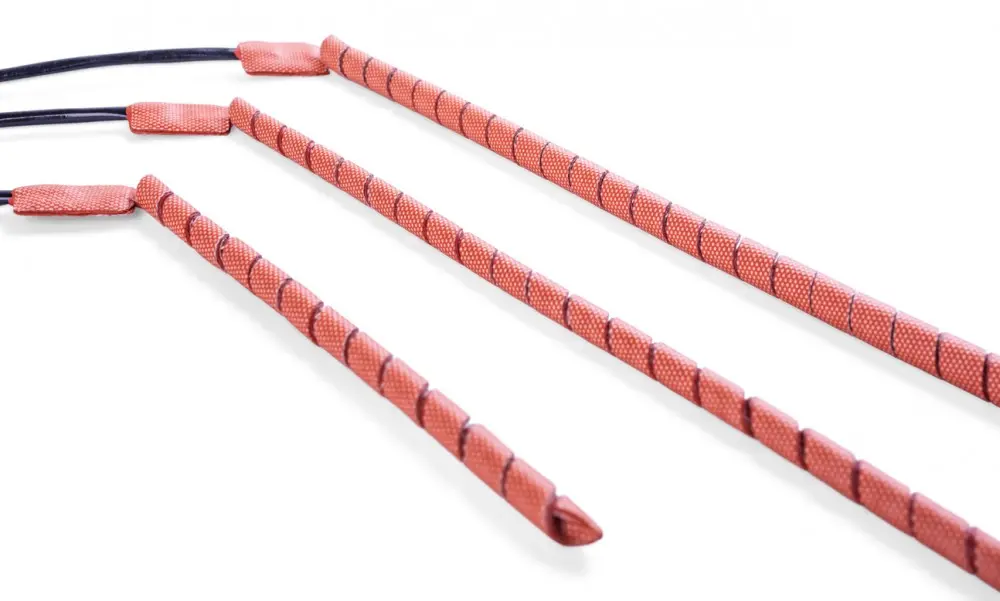

1. Pre-formed Spiral & Stretchable Silicone Heater for Pipe Line Heating

Hongtai Spiral Silicone Heaters are specialized thermal components engineered for heating small diameter pipes, tubes, and rigid fluid lines where standard heat tape is difficult to apply. Unlike standard flat strips, this silicone heater for pipe line heating is manufactured using a proprietary vulcanization process that gives it a “permanent memory” spiral shape.

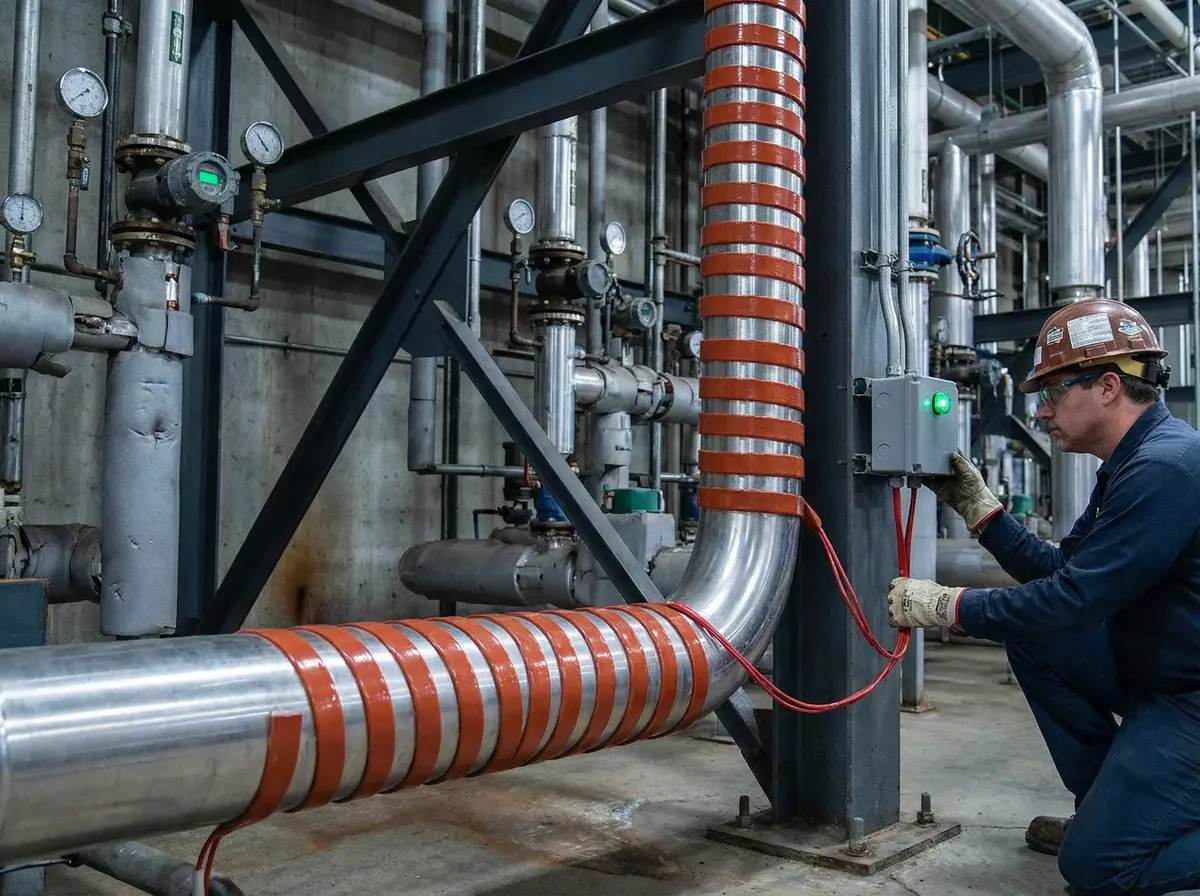

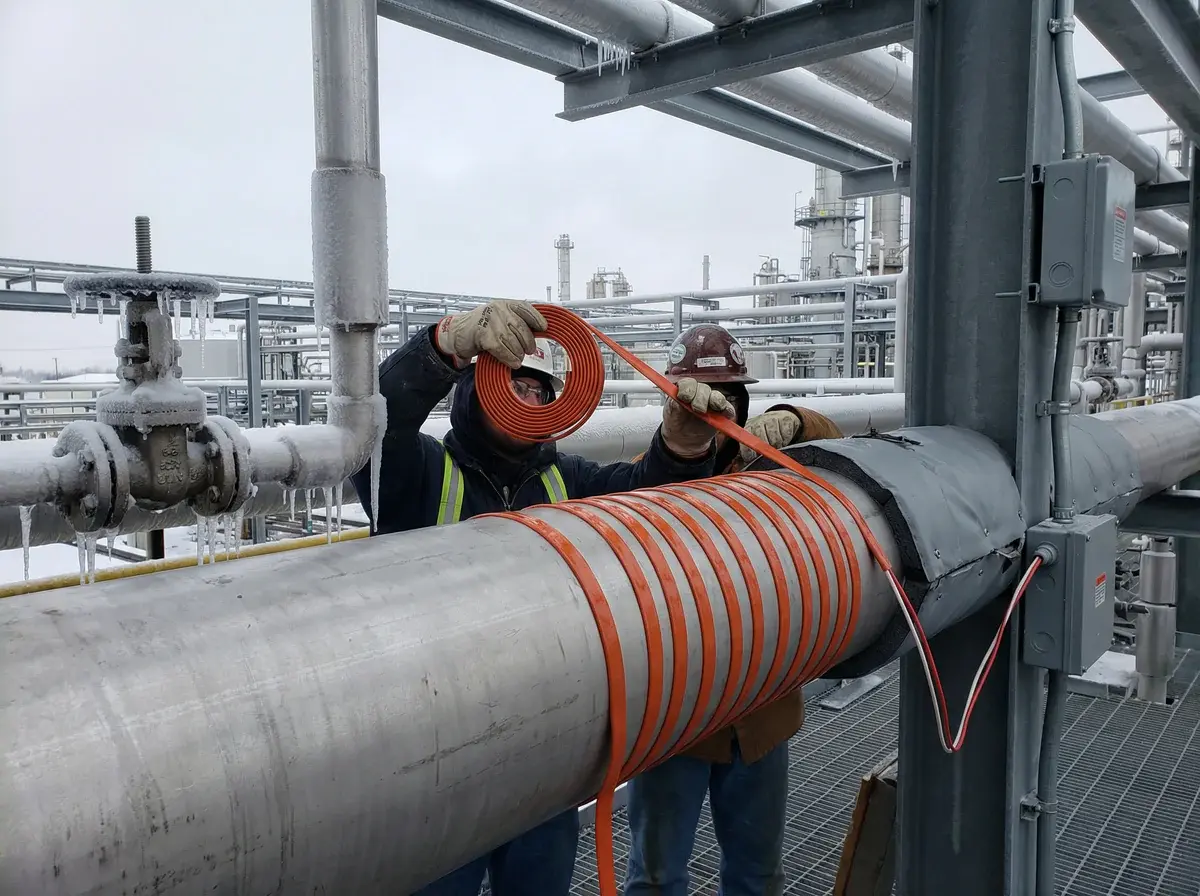

This flexible heater strip functions like a spring, allowing it to be stretched over valves, joints, or curved pipework and snap back tightly against the surface. This unique design ensures optimal thermal contact without the need for adhesive tape, zip ties, or complex lacing, making it the superior choice for semiconductor gas lines, pharmaceutical fluid transfer, and freeze protection in compact systems.

2. Key Technical Features

• Self-Clamping “Memory” Design: The Spiral Silicone Heater for Small Diameter Pipes and Tubing naturally hugs the pipe radius, eliminating air gaps and “hot spots” common with loose heat tape.

• Rapid Installation: The snap-on coil design reduces installation time by up to 70% compared to laced heaters.

• Robust Construction: Made from chemical-resistant fiberglass-reinforced silicone rubber, offering IP64 protection against moisture and dust.

• Safe Power Density: Optimized at 0.3 W/cm² to safely heat both metal and high-temperature plastic piping without damage.

• Chemical Resistance: Excellent resistance to Acetone, Formic Acid, 10% Hydrochloric Acid, and general industrial greases.

3. Technical Specifications & Dimensions

Our Spiral Pipe Heating Products for Pipework are manufactured to rigorous industrial standards. The spiral memory retention is tested to ensure longevity even after repeated stretching during maintenance.

4. Industrial Applications

The silicone Heater Strip Pipe Tube Line Heating Band Belt is critical for industries requiring precise viscosity control in small-bore tubing:

• Semiconductor Manufacturing: Heating gas delivery lines to prevent condensation of precursor gases in stainless steel tubing.

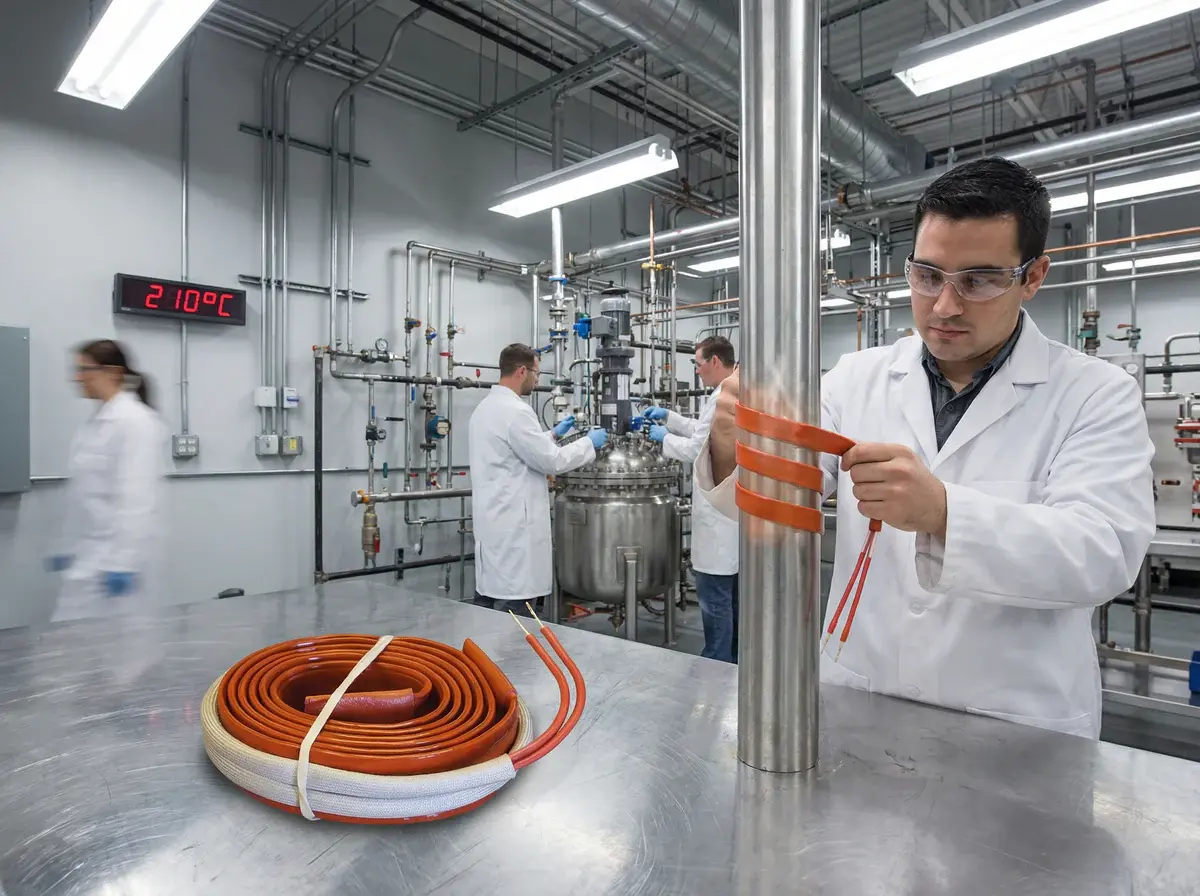

• Laboratory Fluidics: Maintaining temperature in chromatography columns or analyzer tubing.

• Food & Beverage: Preventing solidification of waxes, chocolates, or oils in small delivery nozzles.

• Pharmaceutical: Process temperature maintenance for sterile fluid transfer lines.

5. Why Choose Hongtai Spiral Heaters?

• Zero Air Gaps: The tension of the spiral ensures continuous contact, maximizing heat transfer efficiency.

• Maintenance Friendly: If a pipe section needs inspection, the heater can be slid off or expanded and removed in seconds, then reused. Standard adhesive heaters are often destroyed upon removal.

• Durability: The fiberglass reinforcement prevents the silicone strip heater from tearing during expansion.

6. FAQ

Q: Can I use this on plastic piping (PVC/PEX)? A: Yes. The watt density is regulated (approx 0.3 W/cm²), which is generally safe for high-temperature plastic piping. However, we recommend using a temperature controller to ensure the surface limit of the plastic is not exceeded.

Q: Can I cut the spiral heater to length? A: No. Cutting a silicone strip heater breaks the internal resistance wire circuit, rendering the unit non-functional. You must order the correct length for your pipe section.

Q: Do these require a thermostat? A: While they are designed to not overheat the element itself, for process control (e.g., maintaining exactly 40°C), an external sensor and controller are required. We can integrate a sensor (PT100 or Thermocouple) into the manufacturing process upon request.
