Hongtai manufactures professional-grade silicone heater mats designed to solve cold-weather challenges for energy storage systems and automotive machinery. Whether you need a lithium battery heater pad 12V to prevent plating during cold charging, or a heavy-duty Silicone Car Engine Heater Pad to improve cold starts, our flexible heating solutions provide reliable thermal management.
Engineered with multi-strand nickel-chrome alloy wire and rugged silicone rubber insulation, these pads feature integrated thermostats to automatically regulate temperature, ensuring safety for sensitive battery electrolytes and efficient heating for engine oil sumps.
Key Technical Features:
-
Product Type: Silicone Battery Pad Heaters and Oil Pan Heaters.
-
Control: Silicone Battery Heater Pad with Thermostatically Controlled switches (e.g., Maintain 80°F for batteries).
-
Safety: Self-Adhesive Oil Pan Heater Pad with 194°F Thermal Protector options to prevent overheating.
-
Voltage: 12V / 24V DC for off-grid/mobile; 120V / 220V AC for shore power.
-
Installation: 3M™ Pressure Sensitive Adhesive (PSA) for rapid bonding to metal or plastic cases.
-
Standard Model: Engine Block Heater Pad with 70″ Long Power Cord (150W 120V) available for immediate shipping.
1.Technical Specifications & Thermostat Options
Our silicone pad battery heaters are customizable. The table below outlines the standard parameters for both battery warming (Low Temp) and engine/oil heating (High Temp).
| Parameter | Battery Heater Spec (Low Temp) | Oil Pan / Engine Spec (High Temp) |
| Target Application | LiFePO4 / Lead Acid Batteries | Engine Block / Hydraulic Tank |
| Material | Fiberglass Reinforced Silicone Rubber | Fiberglass Reinforced Silicone Rubber |
| Watt Density | Low (0.1 – 0.2 W/cm²) | Medium/High (0.4 – 0.6 W/cm²) |
| Voltage Options | battery heater pad 12V, 24V, 48V | 120V, 220V, 240V |
| Integrated Thermostat | Keep battery > 0°C / 5°C | Keep oil warm (e.g., 90°C cut-off) |
| Attachment | 3M™ 468MP Adhesive | 3M™ VHB™ High-Temp Adhesive |
| Power Cord | 300mm – 1000mm Silicone Wire | 70″ Long Power Cord (Standard) |
| Safety Features | Thermal Fuse / Digital Controller | 194°F Thermal Protector |
2.Industrial Applications

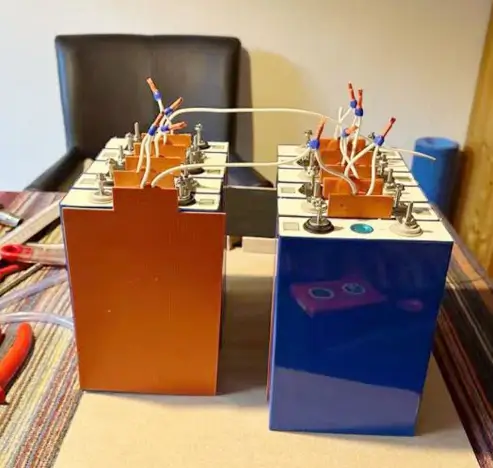

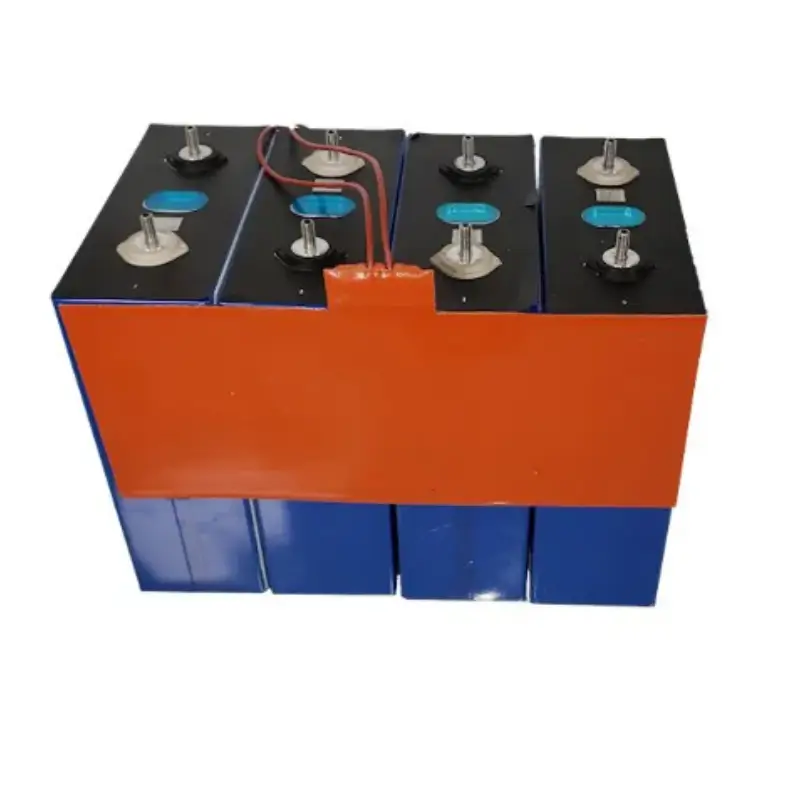

I. Lithium & Lead Acid Battery Warming
Cold temperatures significantly degrade battery performance. For Lithium-ion (LiFePO4) batteries, charging below freezing (0°C) causes irreversible lithium plating.
-
Solution: Our lithium battery heater pad 12V is designed to gently raise the core temperature of the battery pack.
-
Thermostat Logic: Typically configured to turn ON at 5°C (41°F) and turn OFF at 15°C (59°F). This automated cycle ensures the battery is always ready to accept a charge without wasting energy.

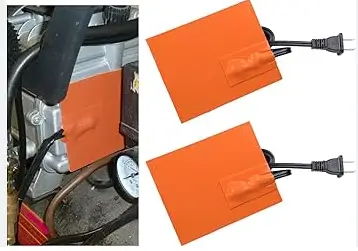

II. Automotive Engine & Oil Pan Heating
Cold oil turns into a thick sludge, causing engine wear during start-up.
-
Solution: A Self-Adhesive Oil Pan Heater Pad with 194°F Thermal Protector attaches directly to the bottom of the metal oil pan.
-
Heat Transfer: The silicone heater mat conducts heat through the metal pan, warming the oil by convection. This allows for easier cranking and immediate lubrication in winter conditions.
-
Advantage: Unlike immersion block heaters, these external pads do not require draining coolant or removing freeze plugs.
3.Installation Guide (Critical for Longevity)
The reliability of a silicone heater pad depends entirely on the installation quality.
-
Clean Surface: The battery case or oil pan must be completely free of grease, oil, and dirt. Use a degreaser followed by Isopropyl Alcohol.
-
Adhesion: Peel the backing of the silicone pad battery heater and press firmly.
-
Curing: For engine applications, allow the adhesive to cure for 24 hours before the first heating cycle to ensure the bond strength of the Battery Heater Pad withstands vibration.
-
Sealing: For automotive undercarriage applications, we recommend applying a bead of high-temp RTV silicone around the edges of the pad to seal against road salt and moisture.
4.FAQ
Q: Can I cut the silicone heater pad to fit my battery?
A: No. Cutting a silicone heater for battery will sever the internal resistance wire circuit and permanently destroy the unit. You must order the correct size or a slightly smaller size that fits within the flat area of your battery or oil pan.
Q: What is the difference between a battery heater and an oil pan heater?
A: The difference lies in Watt Density and Thermostat Settings.
-
Battery Heater: Low power density to gently warm plastic cases without melting them.
-
Oil Pan Heater: High power density to heat heavy metal masses. Warning: Never use a high-wattage oil pan heater on a plastic battery case.
Q: Can I leave the battery heater plugged in overnight?
A: Yes, provided it is a Silicone Battery Heater Pad with Thermostatically Controlled switch. The integrated thermostat will cycle the power on and off to maintain the set temperature range, preventing overheating and conserving energy.
