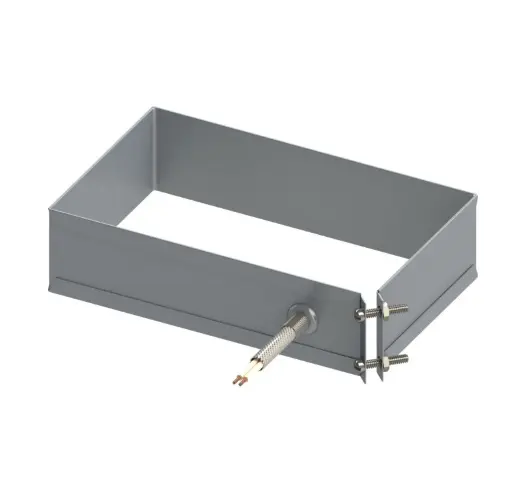

Rectangular Band Heater for Custom Extrusion Dies

In complex plastic processing and packaging machinery, not all heated components are perfectly cylindrical. When mold design engineers encounter flat surfaces, hex-shaped nozzles, or block-style dies, standard round heaters cannot provide the necessary thermal contact. The Hongtai Rectangular band heater is the definitive thermodynamic solution for non-cylindrical heating applications.

Designed specifically for OEM packaging machinery manufacturers and die engineers, this Custom formed band heater is manufactured to perfectly conform to the specific geometry of your equipment. By tightly wrapping around square, rectangular, or hex-shaped tooling, it eliminates the dangerous “air gaps” that plague improperly fitted heaters, ensuring absolute temperature uniformity and preventing dead zones in your material extrusion flow.

1. Engineered to Fit Any Geometry

Flat and rectangular extrusion dies inherently suffer from rapid thermal loss at their sharp edges and corners. If the plastic melt drops in temperature at the edges of the die, it causes flow imbalances, resulting in defective film profiles or blocked nozzles.

• Edge Loss Compensation: Our Square mica heater can be wound with variable wattage density. By concentrating more heat at the corners and outer edges of the rectangular profile, we actively compensate for ambient heat loss, ensuring the core of your extrusion die maintains a perfectly flat temperature profile.

• Precision Contact: A heater only works through conductive heat transfer. Our customized clamping mechanisms (including wedge locks and flange lock-ups) ensure the flat inner surface of the heater maintains extreme pressure against the die, maximizing heat transfer efficiency and prolonging the life of the internal NiCr 2080 resistance wire.

2. Extreme Customization (Holes, Cutouts & Slots)

Extrusion dies are crowded spaces, often covered in mounting bolts, pressure transducers, and temperature sensors. A standard heater will not clear these obstacles.

We manufacture every Rectangular band heater with CAD-level precision to accommodate complex machine features. We can seamlessly integrate:

• Clearances for mounting brackets.

• Precision slots for melt-pressure transducers.

• Dedicated cutouts for Type J or Type K thermocouple probes.

• Two-piece or multi-piece hinged designs for easy installation around fixed piping.

3. Comprehensive Technical Specifications

Built on our proven high-dielectric mica platform, these custom shapes do not sacrifice power or durability.

4. Target B2B Industry Applications

This specialized Extrusion die heating component is the go-to solution for:

• Blown Film & Profile Extrusion: Heating non-cylindrical die heads and screen changers to maintain consistent polymer melt viscosity.

• Packaging Machinery: Sealing jaws and flat heating plates in horizontal form-fill-seal (HFFS) equipment.

• Vending Machines: Custom heated tracks and delivery chutes.

• Rubber & Silicone Processing: Rectangular mold heating zones.

5. Frequently Asked Questions (FAQ)

Q: How do you ensure the flat sides don’t bow outward when heated?

A: This is a common failure point in poorly designed rectangular heaters. Steel expands when heated, which can cause the long flat sides to bow outward, breaking contact with the die. We utilize heavy-gauge stainless steel outer sheaths and reinforced clamping pads (such as Wedge Locks) to mechanically force the Square mica heater flush against the flat surface, regardless of thermal expansion.

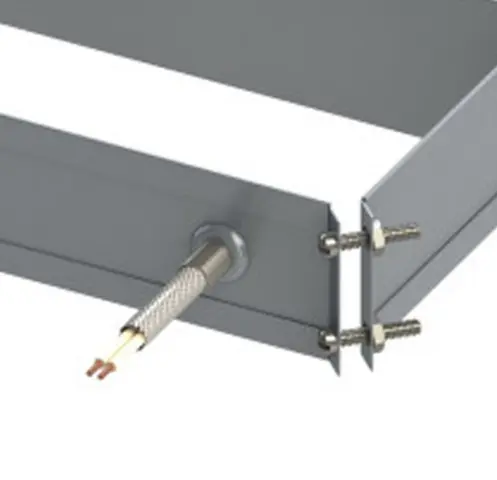

Q: Can I specify exactly where the lead wires exit?

A: Yes. In tight machine frames, wire routing is critical. You can specify whether the fiberglass leads or screw terminals exit from the top, the side, or the face of the heater, allowing for clean and safe wiring harnesses.
