Plug-and-Play Infrared Heating Module Cassette Assembly

In traditional manufacturing, expanding a drying line or upgrading a convection oven requires massive capital expenditure, extensive downtime, and complex engineering. The Hongtai Infrared heating module eliminates these hurdles. Designed as a highly prefabricated, all-in-one thermal solution, this complete cassette assembly allows plant managers and equipment builders to instantly deploy high-intensity radiant heat exactly where it is needed.

Whether you are looking to retrofit a flash-off zone in a powder coating shop or construct a brand new IR booster oven from scratch, this plug-and-play assembly is the ultimate shortcut. By integrating the quartz heating tubes, highly polished reflectors, structural housing, and rear thermal insulation into one pre-wired unit, we help our clients achieve up to a 30% increase in production capacity with minimal installation labor.

1. The Ultimate IR Heater Cassette Design

Building an efficient infrared oven is not just about mounting bare lamps to a metal frame. Without proper reflection and insulation, up to 40% of the radiant energy is lost to the ambient factory air. Our IR heater cassette solves this thermodynamic challenge through expert prefabrication:

• High-Temperature Housing: The robust outer casing is constructed from specialized aluminized zinc (Galvalume) or heavy-duty Stainless Steel (SS304/SS316). This ensures the structural integrity of the module even under continuous extreme heat.

• Integrated Polished Reflectors: Behind the quartz emitters sits a precision-formed, highly polished aluminum or gold-plated reflector array. This directs 95% of the thermal radiation straight forward into the heating zone, maximizing energy efficiency.

• Rear Thermal Insulation: The back of the cassette is packed with high-density ceramic fiber insulation. This prevents heat from migrating to the outer casing, protecting external wiring and significantly reducing your overall energy consumption.

• Sensor Integration: Every module comes standard with a built-in thermocouple or RTD interface (Type K/J or PT100), allowing for immediate, closed-loop PID temperature control upon installation.

2. Why Build an IR Booster Oven?

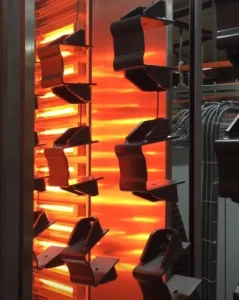

For existing powder coating or liquid paint lines, conveyor speeds are often limited by the curing time of the convection oven. By installing a pre-wired Infrared heating module array right at the entrance of your existing oven, you create an IR booster oven. This booster zone utilizes rapid short-wave or medium-wave infrared to instantly gel the powder or flash off solvents before the product enters the slower convection zone. The result? You can significantly speed up your conveyor belt, increasing overall factory throughput by 30% without needing to buy a massive new convection oven.

3. Comprehensive Technical Specifications

Our module assemblies are completely scalable. From small conveyor sections to massive industrial drying tunnels, we custom-build the kW output to match your thermal load requirements.

4. Target B2B Industry Applications

This pre-wired IR heater cassette is the preferred upgrade solution for OEMs and facility engineers in:

• Powder Coating & Painting: Creating flash-off zones to gel powder quickly, preventing cross-contamination and dust adhesion.

• Textile & Web Drying: Modular arrays suspended over moving webs to evaporate moisture instantly.

• Plastics Thermoforming: Creating highly uniform heating banks to soften large, thick plastic sheets prior to vacuum molding.

• Food Processing: Stainless steel modules used in commercial baking tunnels for surface browning and moisture reduction.

5. Frequently Asked Questions (FAQ)

Q: How difficult is the installation process? A: It is truly “Plug-and-Play.” The Infrared heating module arrives fully assembled with internal wiring consolidated to a high-temperature terminal block. Your electricians simply need to bolt the cassette to your machine frame and run the main power supply to the terminal block.

Q: Can I replace individual lamps if one burns out? A: Yes. The cassette is designed for easy MRO access. The front protective grille or mounting clips can be quickly detached, allowing you to swap out a single quartz tube in minutes without removing the entire module from the oven line.

Q: Which type of infrared tube is inside the module? A: It depends entirely on your process. We can populate the IR heater cassette with clear short-wave halogen lamps for rapid heat-up, medium-wave carbon fiber for gentle moisture drying, or twin-tube emitters for maximum watt density. Our engineering team will match the spectrum to your specific material.
