In the high-volume beverage packaging industry, high-speed rotary PET stretch blow molding machines are the undisputed heartbeat of the production line. When a heating lamp in the preform oven fails, the PET preforms heat unevenly. This instantly results in blown bottle defects, wall-thickness variations, pearlescence, and catastrophic line downtime. The Hongtai PET blow molding heater is explicitly engineered to survive and thrive in this extreme industrial environment.

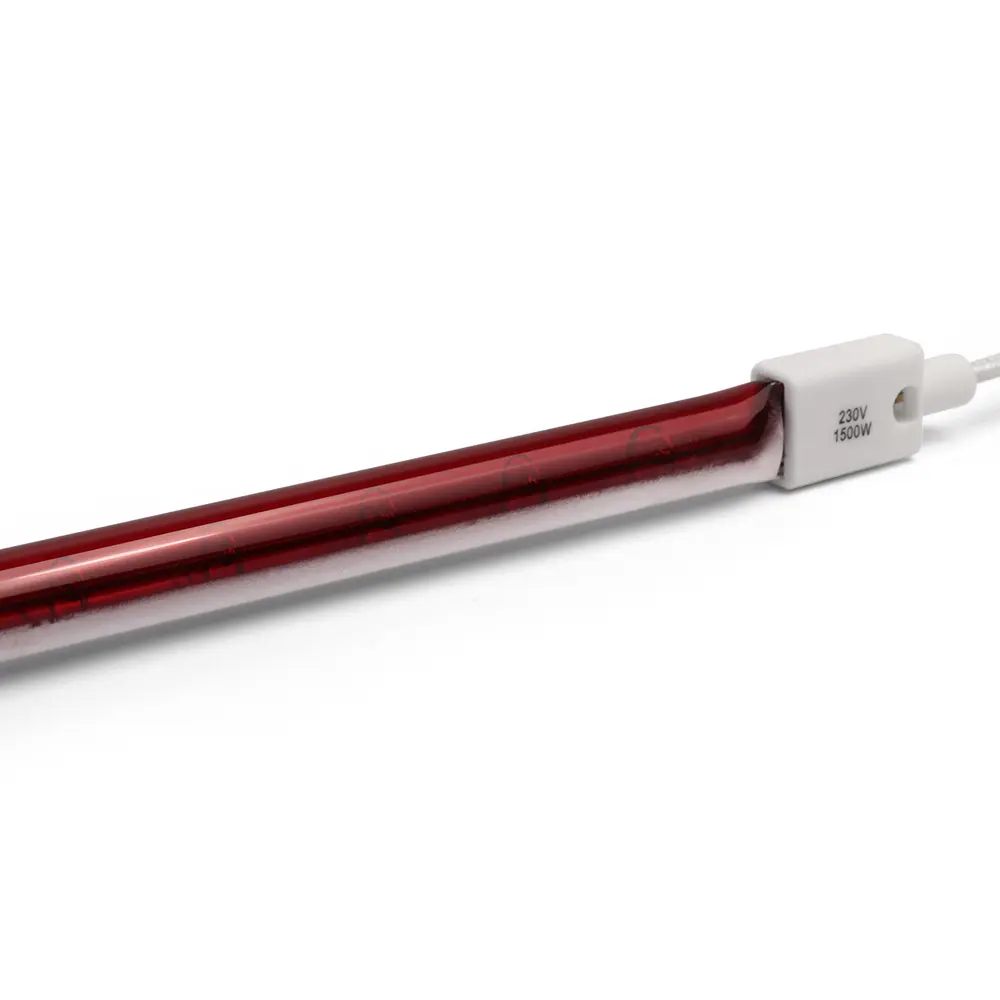

Designed as a premium, direct-fit Sidel replacement infrared lamp and Krones heater tube, this short-wave halogen emitter is perfectly calibrated to the absorption characteristics of Polyethylene Terephthalate (PET). It delivers intense, deeply penetrating infrared radiation to soften the polymer uniformly from the inside out, ensuring flawless material distribution during the high-pressure blowing phase.

1. The Engineering Secret: Dense Molybdenum Supports

High-speed rotary blow molders (producing 20,000 to 80,000+ bottles per hour) generate massive, continuous high-frequency mechanical vibration. Standard commercial infrared lamps fail rapidly in these machines because the brittle tungsten filament snaps under the relentless shaking.

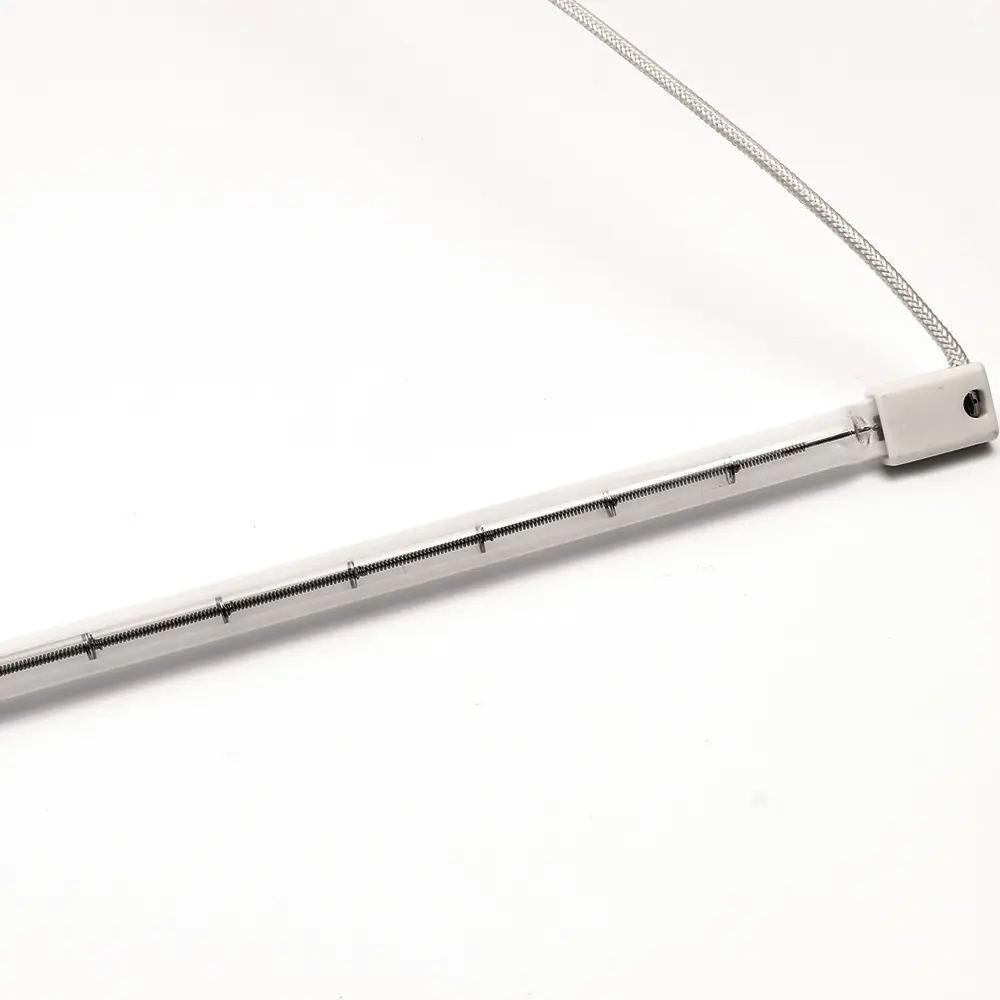

• The Hongtai MRO Solution: Our PET blow molding heater is constructed with a highly specialized array of dense molybdenum support rings spaced closely along the entire length of the internal tungsten coil.

• Maximum Durability: Molybdenum is an exotic refractory metal highly resistant to extreme heat and mechanical fatigue. These internal supports act as microscopic shock absorbers, holding the glowing tungsten filament perfectly centered within the quartz tube. This prevents filament sag and completely eliminates breakage, guaranteeing a stable 5000-hour operating lifespan even in the most aggressive rotary blow molders.

2. Comprehensive Technical Specifications

We manufacture and stock the exact lengths, wattages, and voltages required by the leading European blow molding equipment manufacturers, ensuring a seamless upgrade path for your maintenance team.

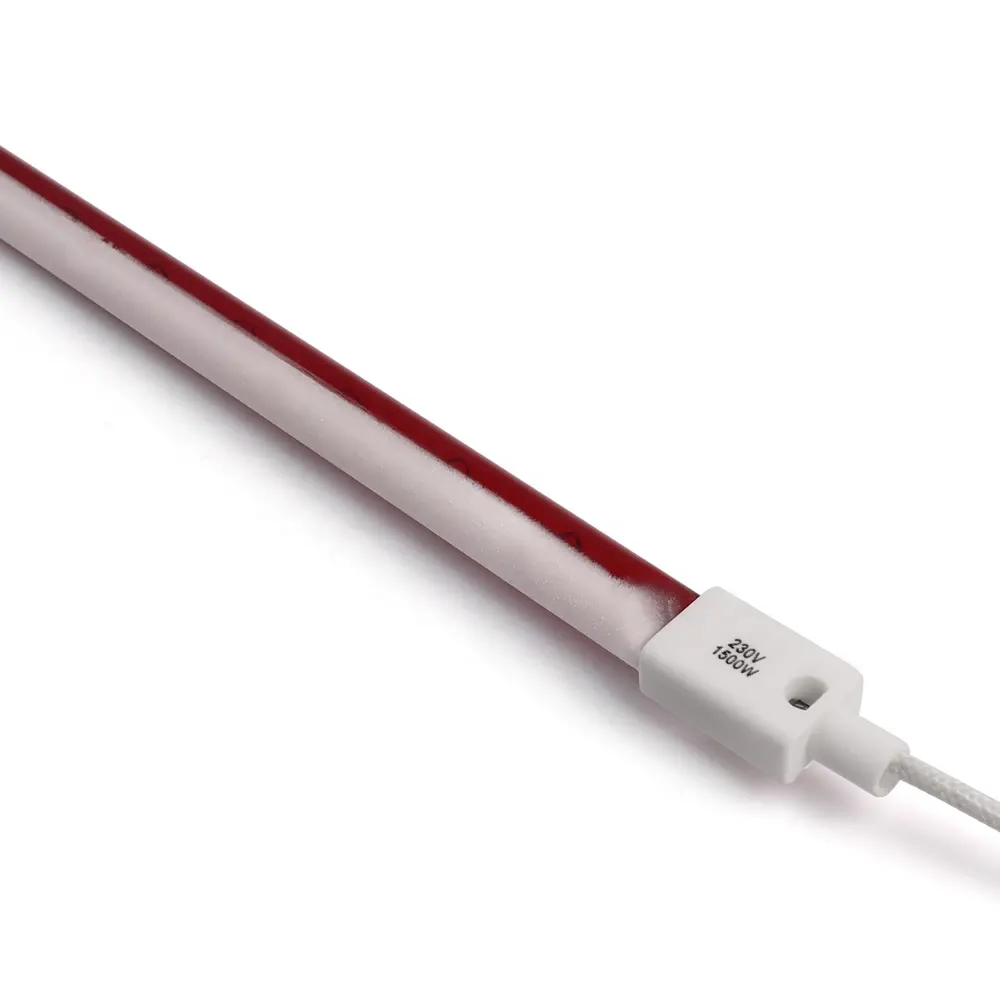

3. Why Ceramic White Reflectors for PET Preforms?

Unlike flat printing webs that benefit from the harsh, highly focused beam of a gold reflector, rotating cylindrical PET preforms require omnidirectional, soaking heat to achieve the perfect glass transition temperature. Our Krones heater tube replacements utilize a proprietary Ceramic White half-coating. This specific coating diffuses the infrared energy, wrapping the radiant heat smoothly around the rotating preform. This eliminates thermal “hot spots” and ensures the plastic softens with absolute uniformity, which is the most critical factor in preventing blow-outs or material thinning during the mechanical stretching process.

4. Target Industrial Applications

This Sidel replacement infrared lamp is a mandatory inventory item for MRO (Maintenance, Repair, and Operations) departments in:

• Beverage Packaging: High-speed bottling plants for mineral water, carbonated soft drinks (CSD), and juices.

• Hot Fill PET Applications: Specialized heating profiles for heat-set PET bottles requiring exacting temperature zones.

• Cosmetics & Pharma Packaging: Blow molding of small, complex PET containers requiring highly precise thermal zoning in linear ovens.

• Packaging Machinery OEMs: Reliable, vibration-resistant thermal components for domestic and international blow molder machine builders.

5. Frequently Asked Questions (FAQ)

Q: My current OEM lamps burn out after only 2 months of continuous operation. Will the Hongtai lamps last longer? A: Absolutely. Premature failure in stretch blow molders is almost always caused by mechanical vibration snapping the hot filament, not by the filament simply “burning out” from age. Our dense molybdenum support structure is specifically designed to isolate the tungsten filament from the machine’s harmonic vibration, ensuring the lamp reaches its full 5000+ hour design life.

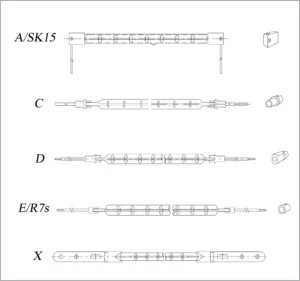

Q: Can you match the specific SK15 PTFE cable length for my Sidel oven carriage? A: Yes. Sidel machines often require very specific PTFE (Teflon) lead wire lengths to route through the oven carriage blocks correctly. Please specify your required wire length (e.g., 150mm, 250mm) and the specific terminal connector (O-ring, Spade, or Bare wire) when requesting a quote.
