Core Value

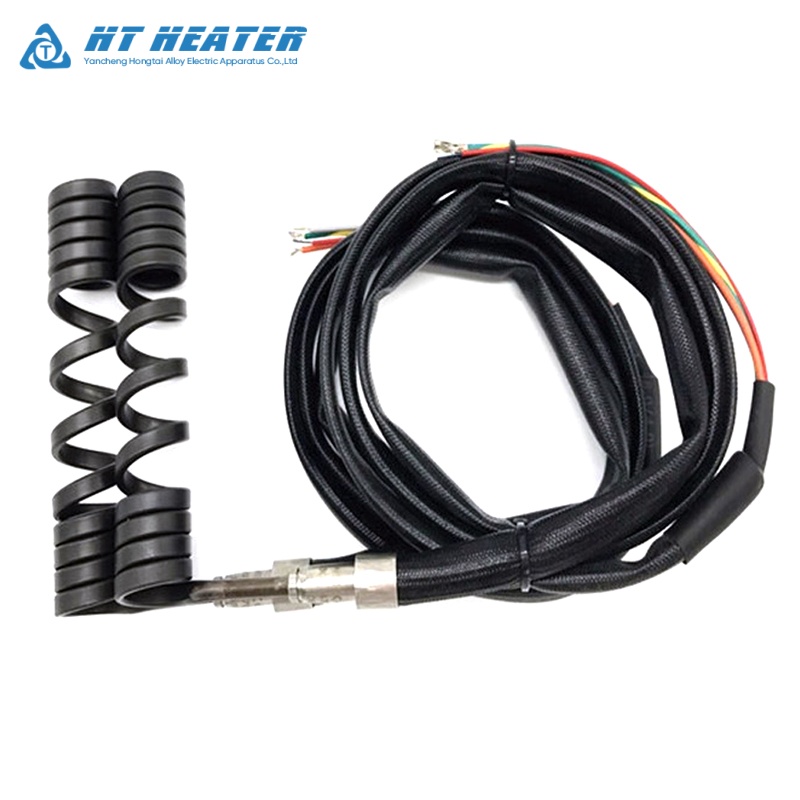

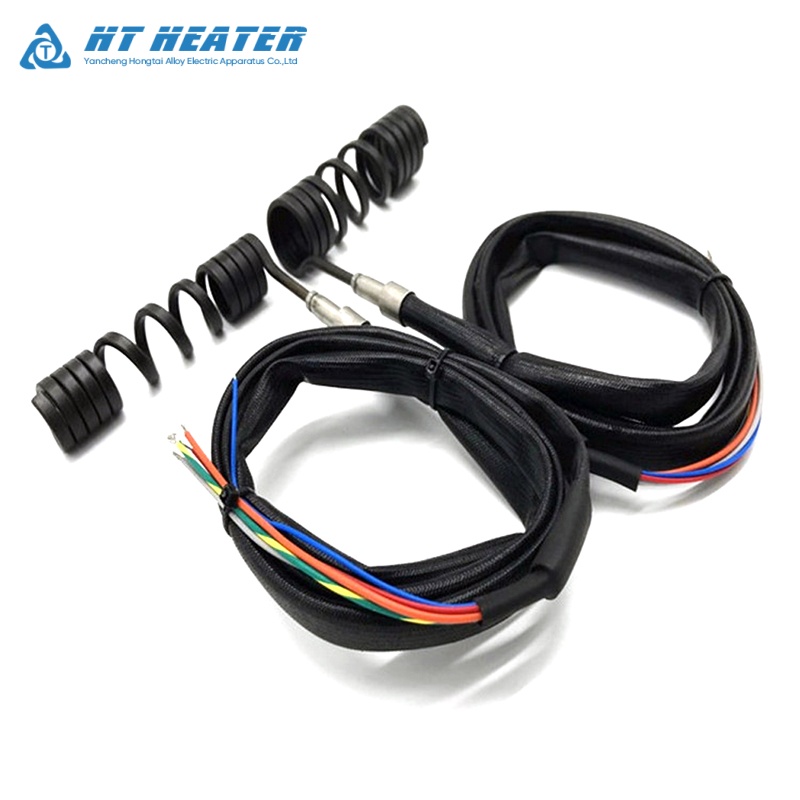

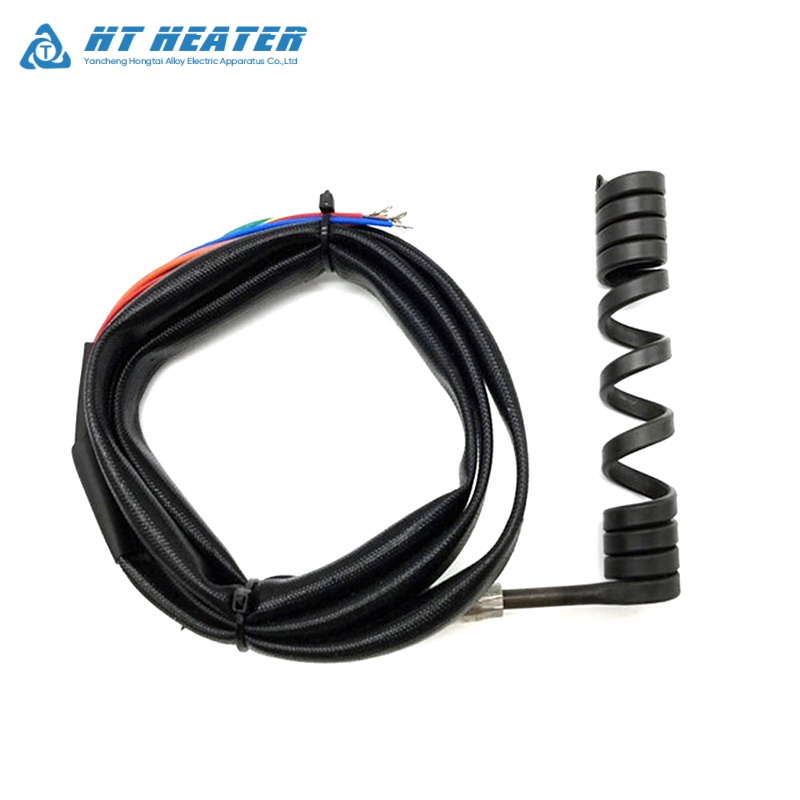

The 35mm ID Moisture-Proof Black Sleeved Coil Heater for Hot Runner Injection Molding is engineered specifically to prevent electrical insulation failure and short circuits caused by ambient humidity, condensation, and plastic melt ingress in hot runner injection molding systems. Featuring a high-density compacted MgO heating element encased in a premium stainless steel sheath, this coil heater is protected by a heavy-duty Black Moisture-Proof Silicone Fiberglass Sleeve. This specialized black casing forms an impenetrable barrier against oil, water-glycol coolant spray, and liquid resin, while providing superior dielectric strength and abrasion resistance in tight mold wire channels. Operating continuously at temperatures up to 650°C (1202°F), it delivers 360° uniform thermal distribution and rapid PID heat recovery, guaranteeing zero moisture-related startup trippings. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS for continuous, maintenance-free operation.
- ✓ Moisture & Fluid Ingress Barrier: Heavy-duty black silicone-coated sleeving seals leads against ambient humidity, mold condensation, and oil contamination.
-
✓ Zero Hydroscopic Tripping: Sealed terminal transition design prevents MgO insulation moisture absorption during machine idle periods.
-
✓ High Thermal Density Performance: Compacted stainless steel coil structure ensures instantaneous thermal transfer to the nozzle core.
-
✓ Extreme Temperature Resilience: Operates continuously up to 650°C (1202°F) for processing demanding engineering resins.
-
✓ Integrated Thermocouple Support: Available with built-in Type J or Type K thermocouples for precise closed-loop PID control.
-
✓ Abrasion-Resistant Flexible Casing: Tough black outer sleeve prevents wire fraying and mechanical damage in narrow mold wiring slots.
-
✓ Reliable Quality: 30+ YEARS MANUFACTURING EXPERIENCE guarantees long operational lifespan.
-
✓ Quality Assured: UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including high-voltage dielectric and insulation resistance testing.
-
✓ Global Compliance: CE, LVD, RoHS, and ISO 9001 certified.
Technical Specifications & Performance Data
| Parameter | Standard Value | Customizable Range | Notes |
| Voltage Rating | 220V / 230V AC (Single Phase) | 110V / 240V / 380V | Compatible with standard industrial mold temperature controllers |
| Wattage Range | 200W – 1200W | Built to nozzle specifications | Custom wattage distribution per coil length |
| Sheath Material | Stainless Steel 304 / 316L | Incoloy 800 / High-Temp Alloys | High oxidation resistance under repeated thermal cycling |
| Lead Protection | Moisture-Proof Black Silicone Glass Sleeve | SS Armor / Kevlar / PTFE | Flame-retardant, high dielectric strength, fluid-resistant |
| Max Operating Temp | 650°C (1202°F) | Up to 700°C short-term peak | Resists sheath warping and element burnout |
| Watt Density | 5.0 – 8.0 W/cm² | Up to 12.0 W/cm² | Engineered for ultra-fast thermal response |
| Thermocouple Type | Optional Built-in Type J / K | Ungrounded / Grounded | Enables real-time PID feedback control |
| Cross Section | 2.2 × 4.2 mm / 3.0 × 3.0 mm | Flat, Square, or Round profiles | Custom cross-section for maximum surface contact |
| Coil Inner Diameter | Ø10 mm – Ø50 mm | Built to nozzle drawings | Precision lathe coiled (±0.02 mm) |
| Warranty | 1 Year Standard | Extended coverage available | Guaranteed against manufacturing defects |
Industrial Applications & Solutions
- Hot Runner Injection Nozzles: Concentrated thermal profile management for single and multi-cavity injection molds, eliminating nozzle freeze-off and gate drooling.
- Chilled Mold & High-Humidity Cleanrooms: Ideal for molding environments prone to surface condensation and high atmospheric humidity.
- PET Preform Mold Systems: Maintains precise, balanced temperature control across high-cavitation PET bottle preform nozzle tips.
- Engineering Plastic Processing: Efficiently handles high-temperature resins including PEEK, PEI, PPS, and glass-filled Nylon.
- Packaging Sealing Jaws & Form-Fill-Seal Machinery: Direct continuous heating in packaging lines requiring flexible lead movement and fluid-proof wire protection.
HT-Heater vs Standard Market Heaters
| Feature | HT-Heater (Factory) | Standard Market | Your Advantage |
| Lead Wire Protection | Heavy-Duty Black Moisture-Proof Sleeve | Basic White Fiberglass Sleeve | Complete protection against moisture, condensation, and oil |
| Startup Reliability | Zero Moisture Absorption / Leakage | Frequent Ground Trips on Startup | Eliminates mold pre-heating delays and breaker trips |
| Thermal Limit | Continuous operation up to 650°C | Burnout / warps above 400°C | Handles extreme watt densities safely |
| Transition Joint | Reinforced Hermetically Sealed Crimp | Open Loose Crimp Connection | Prevents lead wire breakage and plastic melt contamination |
| Manufacturing Exp. | 30+ YEARS EXPERIENCE | Unverified Workshops | Proven moisture-sealed heating engineering |
| Quality Assurance | MULTIPLE RIGOROUS QUALITY CHECKS | Basic Resistance Test Only | ZERO DEFECT DELIVERY |
Installation & Integration Guidelines
- Nozzle Surface Cleaning: Thoroughly clean the nozzle mating surface to remove old plastic residue, carbonization, and grease before installing the coil heater.
- Smooth Slide Fitting: Gently slide or expand the coiled heater onto the nozzle body. Never hit the element with a metal hammer to prevent damaging internal MgO insulation.
- Black Sleeved Lead Routing: Route the moisture-proof black sleeved leads smoothly through mold wire channels. Ensure wires are secured with clamping plates without sharp 90° pinching.
- Thermocouple Polarity (If Equipped): Connect built-in thermocouple leads using correct color code polarity (Type J: White = Positive, Red = Negative) directly to your PID controller.
- Initial Warm-up Cycle: Thanks to the moisture-proof black sleeving, standard soft-start routines are minimized, though a brief 5-minute pre-heat at 100°C ensures optimal thermal stabilization before full 220V ramping.
Customer Success Stories
Case 1:
Beverage Closure Mold Manufacturer (Brazil)
-
Application: High-speed 64-cavity cap injection mold operating in a humid coastal facility.
-
Challenge: Daily humidity absorption caused grounding trips and heater burnouts during morning machine startups.
-
Solution: Moisture-Proof Black Sleeved Coil Heaters with sealed transition crimps.
-
Results: MORNING STARTUP FAULTS REDUCED TO 0%. “The black moisture-proof sleeving completely solved our humidity leakage issues. HT-Heater UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS, and their product reliability is unmatched.”
Case 2:
Medical Device Component Molder (Germany)
-
Application: Cleanroom PEEK resin hot runner nozzle system with active water cooling lines.
-
Challenge: Minor coolant mist caused electrical short-circuiting on standard fiberglass lead wires.
-
Solution: Custom 220V Coil Heaters with Moisture-Proof Black Sleeving and integrated Type J thermocouples.
-
Results: HEATER SERVICE LIFE EXTENDED BY 300%. “30+ YEARS MANUFACTURING EXPERIENCE shows in their sealing technology. Our mold lines run 24/7 without wire degradation.”
Pricing & Procurement Options
-
Standard Production: MOQ 10 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact dimension repeatability across production runs. Tiered OEM volume discounts available for 50+ units.
-
Lead Times: Standard Stock Sizes: 3-5 days. Custom Coiling & Black Sleeve Runs: 7-10 days. Express sample dispatch available for urgent mold repairs.
-
Global Logistics: Express delivery via DHL, FedEx, UPS, or air freight. Securely packed in anti-static bags and protective export cartons.
-
Sample Orders: Custom samples manufactured upon CAD drawing approval. Every unit UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.
Global Certifications & Compliance
- CE Marking
Fully compliant with European safety and environmental standards. - LVD Compliance
Low Voltage Directive tested for continuous thermal load safety. - RoHS Compliant
Constructed using environmentally safe, lead-controlled brass alloys. - ISO 9001
Certified quality control covering CNC machining, coil pressing, and electrical testing.
Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.
Comprehensive After-Sales Support
-
- Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.
-
Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.
-
Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
Ready to Optimize Your Injection Molding?
Next Steps:
- 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
- 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
- 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
- 📞 Contact Hot Runner Experts – Response within 2 hours
-
