Core Value
In complex automated machinery and multi-cavity injection molds, routing power cables is a major engineering challenge. Standard straight-exit cartridge heaters force technicians to bend the lead wires sharply against the mold plates, creating severe mechanical stress that quickly fractures the internal conductors.

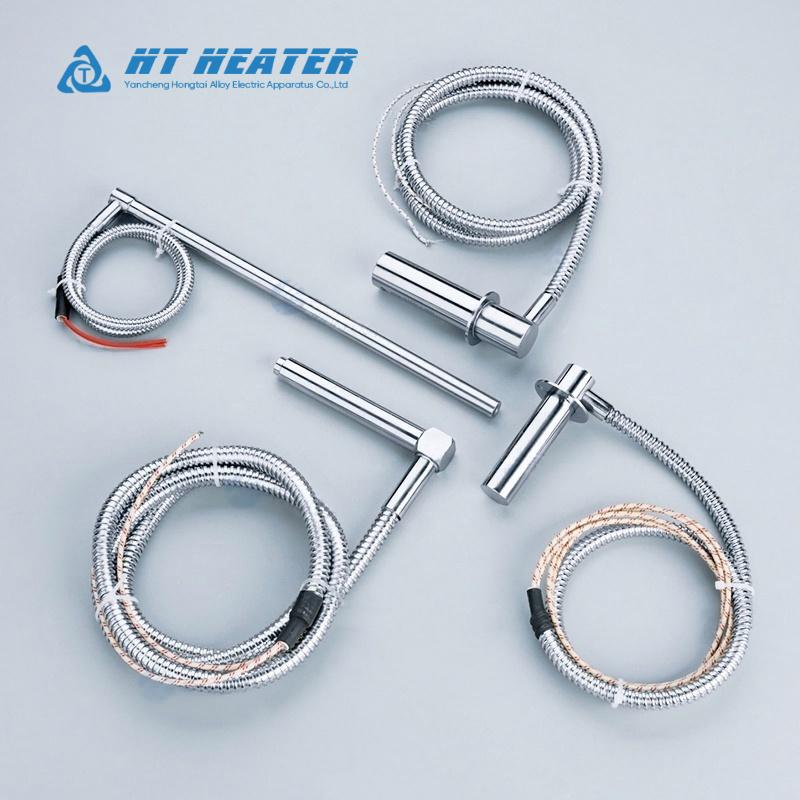

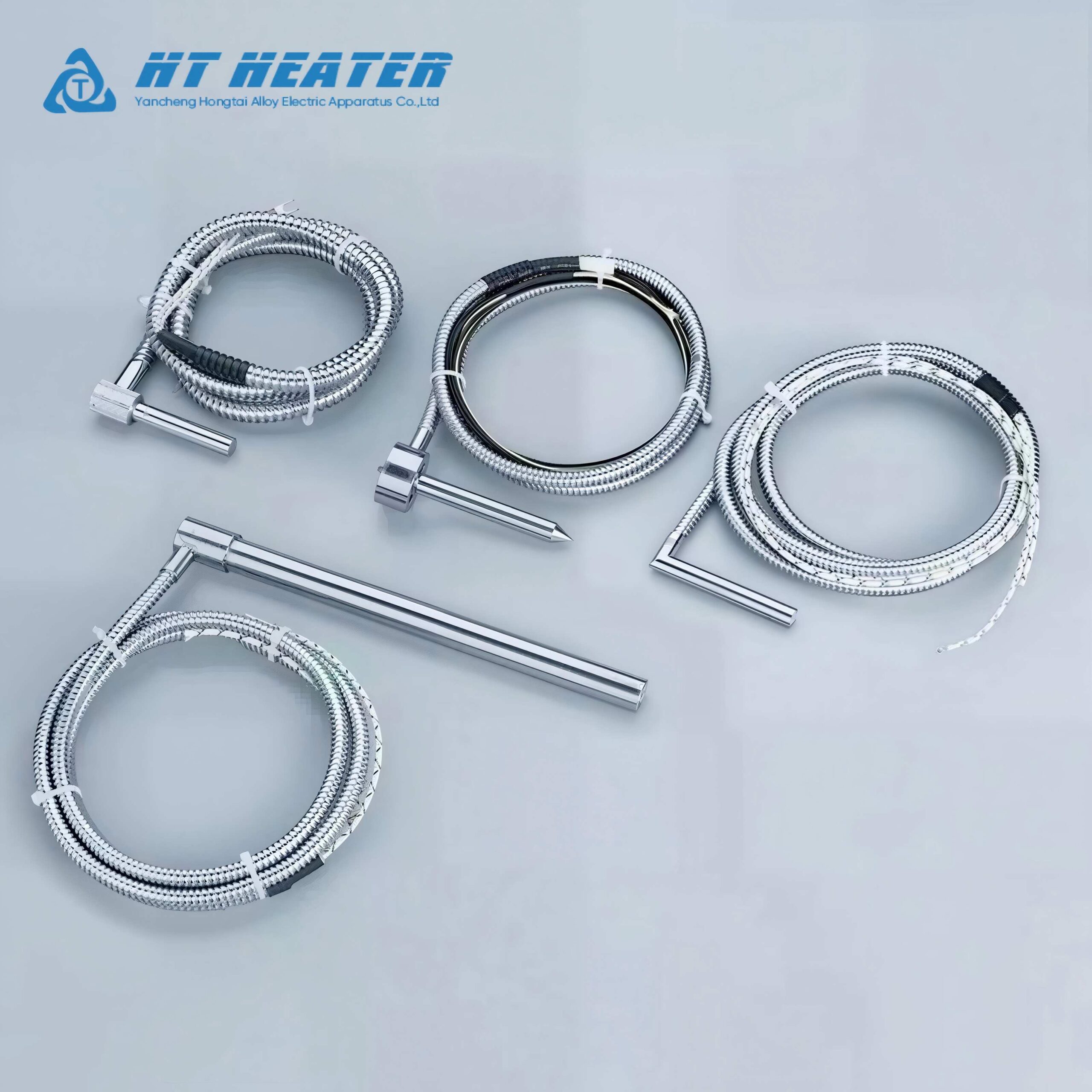

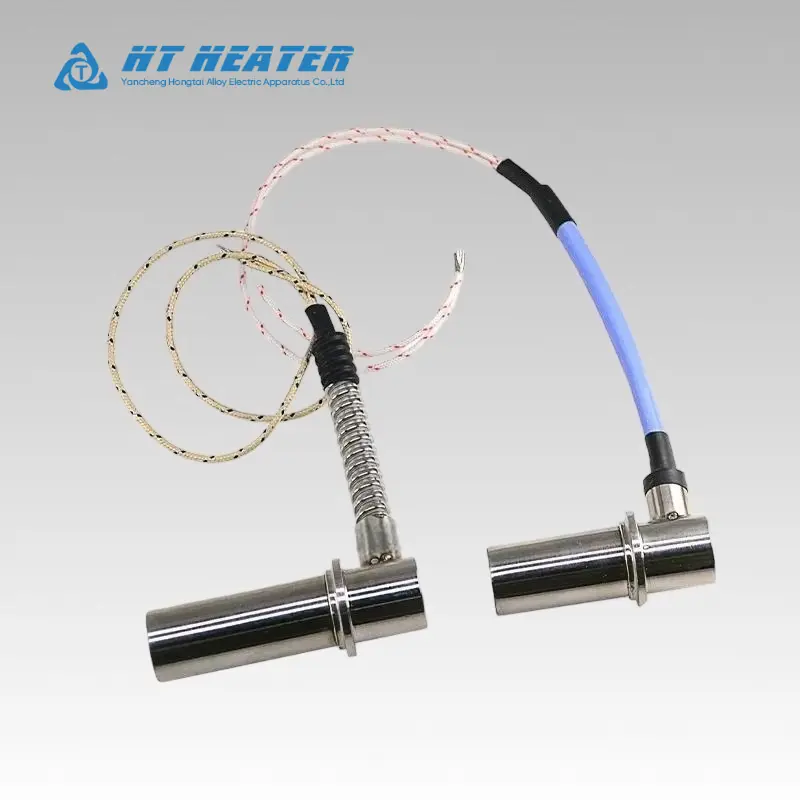

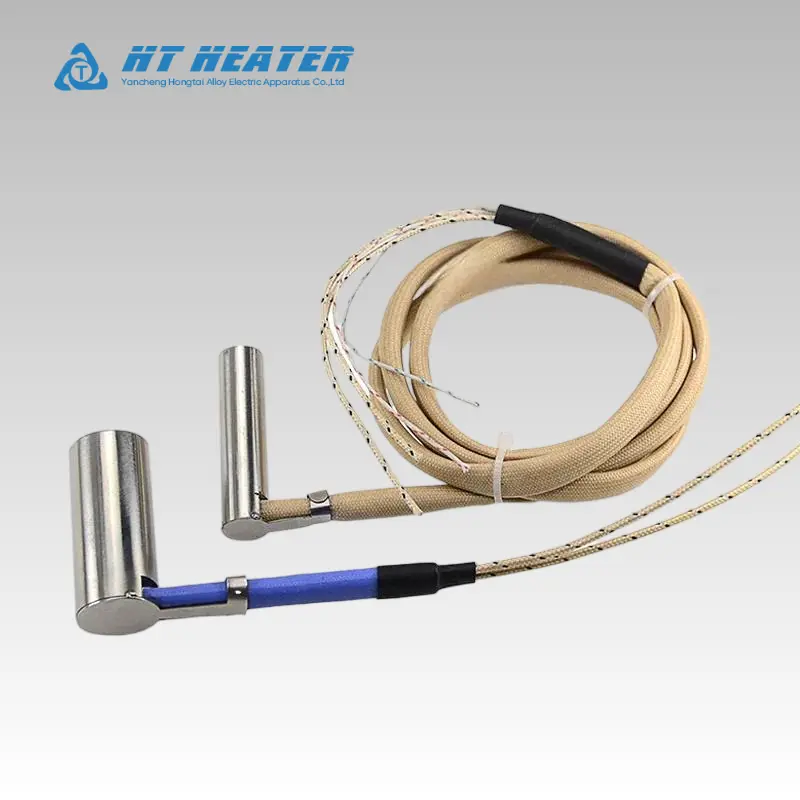

The Industrial Right Angle Cartridge Heater with Metal Braid solves this problem at the root. By utilizing a factory-welded 90-degree transition block or a precision-bent tubular elbow, the heater routes the cables parallel to the mold surface, completely eliminating sharp bending stresses at the exit port.
To combat external mechanical damage, the lead wires are sheathed in a heavy-duty Stainless Steel Metal Braid. Unlike rigid interlocking armor conduit, the metal braid offers exceptional flexibility while still providing a tough, cut-resistant barrier. This makes it ideal for dynamic applications—such as moving heat-sealing jaws or sliding mold cores—where the cable must bend and flex continuously without rubbing through its insulation against sharp steel edges.
Internally, these heaters are rotary-swaged. High-purity Magnesium Oxide (MgO) powder is compacted around a premium Ni80Cr20 resistance coil, creating a dense thermal mass that supports high surface loads (up to 25 W/cm²) and ensures rapid, uniform heat transfer.
- ✓ Low-Profile 90° Exit: Solves tight clearance issues by routing cables flat along the tooling surface, preventing wire kinking and breakage.
- ✓ Flexible Metal Braid Protection: Densely woven stainless steel braid protects internal fiberglass/PTFE insulation from abrasion, sharp edges, and molten plastic splatter.
- ✓ Swaged High Watt Density: Compacted MgO core maximizes dielectric strength and thermal conductivity for rapid ramp-up times.
- ✓ Centerless Ground Sheath: Outer diameters are precision-ground to strict H7 tolerances, ensuring maximum metal-to-metal contact inside the mold bore.
- ✓ Direct Factory OEM Supply: Fully customizable diameters, heated lengths, cold zones, and wattage profiles directly from Hongtai Heater Factory.
Industrial Applications & Solutions
This flexible and durable braided right-angle heater is widely deployed across high-cycle industrial automation:
-
Plastic Injection Molding: Fits perfectly into side-action slide cores and manifold plates where straight wires would be crushed by the mold closing mechanism.
-

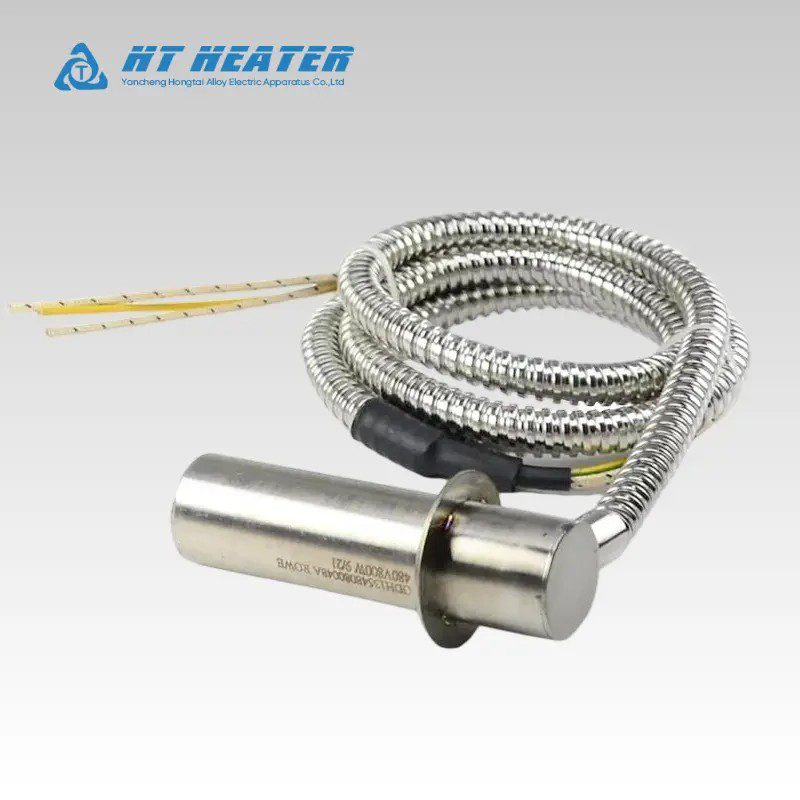

Form-Fill-Seal (FFS) Packaging: Powers horizontal and vertical heat-sealing jaws; the metal braid easily handles the continuous reciprocating motion without snapping.
-
Rubber & Silicone Press Tooling: Withstands the heavy vibration and mechanical shock of multi-day hydraulic vulcanization presses.
-
Medical Device Manufacturing: Provides precise, localized heating in compact thermoforming dies and catheter bonding equipment.
-
Hot Stamping & Labeling Machines: Embedded in moving stamping heads where flexible, abrasion-resistant wiring is mandatory.
Hongtai Heater Factory Advantage: Why Choose Our L-Shape Heaters?
| eature | HT Heater Right Angle Heater | Generic Low-Cost Heaters | Your Operational Advantage |
| Metal Braid Density | High-density, tightly woven stainless steel braid | Loose, sparse wire mesh that easily frays | Superior resistance to sharp edges and fraying; protects operators from exposed live wires. |
| Exit Joint Strength | Full TIG-welded solid metal transition block | Weak spot welds or crimped sheet metal | Withstands heavy pulling forces and rough installation handling without the exit head snapping off. |
| Conductor Crimping | Internal solid nickel pins mechanically crimped | External connections that oxidize and break | Eliminates electrical shorts and wire breakage directly at the 90-degree exit port. |
| Internal Compaction | High-tonnage rotary swaged MgO | Loose, uncompacted powder | Transfers heat instantly to the sheath; avoids internal wire burnout and extends heater lifespan 5x. |
Installation & Handling Guidelines
-
Ream to H7 Tolerance: For high-density heaters, the mold bore must be reamed to an exact H7 tolerance. The clearance between the heater sheath and the hole should ideally be within $0.05\text{ mm}$ to $0.08\text{ mm}$. Loose holes trap heat internally and destroy the heater.
-
Full Insertion: Ensure the entire active heating section is fully inserted into the mold block. If your heater has a welded locating stop collar, seat it completely flush against the mold surface.
-
Route Braid Carefully: While the metal braid is highly flexible, it should not be subjected to sharp 90-degree kinks. Route the braided cable along smooth pathways and secure it with cable clamps to prevent it from snagging on moving machine parts.
-
Avoid Anti-Seize on Exits: If applying thermal paste or anti-seize compound to the heater sheath, keep it away from the 90-degree exit block and the braided leads. Conductive pastes can wick into the insulation and cause electrical tracking.
Customer Success Stories
Case 1:
Automated Packaging Machinery Builder (Turkey)
- Application: High-speed horizontal flow wrapper sealing jaws operating at 120 cycles per minute.
- Challenge: The rapid reciprocating motion caused standard fiberglass-insulated wires to rub against the machine frame, fraying the insulation and causing electrical shorts within 3 weeks.
- Solution: Switched to Hongtai Heater Factory‘s Industrial Right Angle Cartridge Heater with Metal Braid. The 90-degree exit directed the wires safely away from the jaw, while the stainless steel braid protected the insulation.
- Results: HEATER LIFESPAN EXTENDED TO 14 MONTHS. The high-density metal braid absorbed the abrasive friction, completely eliminating unplanned machine downtime due to short circuits.
Case 2:
Multi-Cavity Mold Maker (South Korea)
-
Application: Hot runner manifold with severely restricted lateral clearance due to hydraulic ejector pins.
-
Challenge: Straight heaters could not be wired without being crushed by the ejector plates, and thick armor conduit was too bulky to fit in the wire routing channels.
-
Solution: Deployed HT Heater’s swaged right-angle cartridge heaters featuring the ultra-low-profile flexible metal braid.
-
Results: SEAMLESS INTEGRATION & PERFECT FIT. The flat 90-degree exit cleared the ejector plates perfectly, and the slim metal braid routed easily through the narrow mold channels, ensuring safe and reliable 24/7 operation.
Pricing & Procurement Options
-
Standard Production: MOQ 5 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact resistance matching and dimensional repeatability across production lots. Tiered volume discounts available for 50+ unit orders.
-
Lead Times: Standard Catalog Dimensions (Straight Rods OD 12–30 mm): In stock, 3-5 days. Custom Single/Double Spiral Shapes or Heavy Diameters (OD 35–54 mm): 7-10 days. Express air freight with protective wooden crating.
-
Global Logistics: Encased in individual shock-absorbing foam tubes within reinforced wooden export crates to prevent transportation breakage.
-
Sample Orders: Custom sample elements produced upon CAD drawing and electrical specification approval. Every shipment UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.
Global Certifications & Compliance
- CE Marking
Fully compliant with European safety and environmental standards. - LVD Compliance
Low Voltage Directive tested for continuous thermal load safety. - RoHS Compliant
Constructed using environmentally safe, lead-controlled brass alloys. - ISO 9001
Certified quality control covering CNC machining, coil pressing, and electrical testing.
Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.
Comprehensive After-Sales Support
-
- Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.
-
Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.
-
Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
