Core Value
The 500W Industrial Hot Runner Nozzle Coil Heaters with Metallic Braided Lead Wires is engineered for high-density, precise thermal management in demanding plastic injection molding nozzles, hot runner manifolds, and die systems. Built with a high-purity compacted MgO insulation core encased in a premium stainless steel sheath, this industrial coil heater features heavy-duty Metallic Braided Lead Wires.
The flexible metal armor sleeve provides superior mechanical protection for both power and integrated thermocouple leads, guarding against wire crushing, sharp mold plate edges, high flexure stress, and plastic melt contamination.
Operating continuously at temperatures up to 650°C (1202°F), it delivers 360° uniform thermal distribution, rapid heat recovery, and exceptional PID temperature stability to eliminate nozzle freezing and resin degradation. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS for continuous, maintenance-free industrial operation.

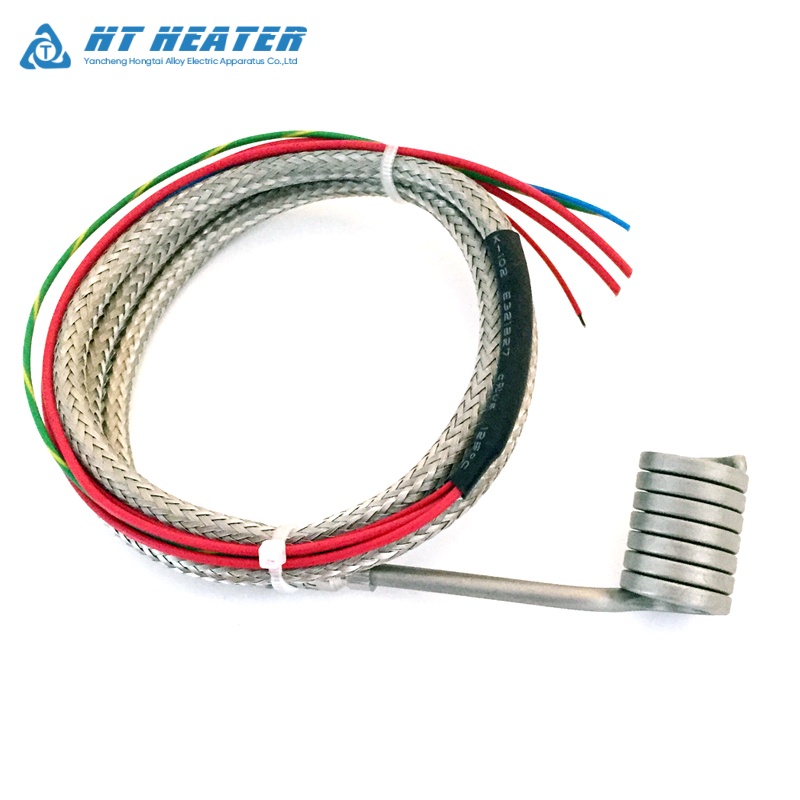

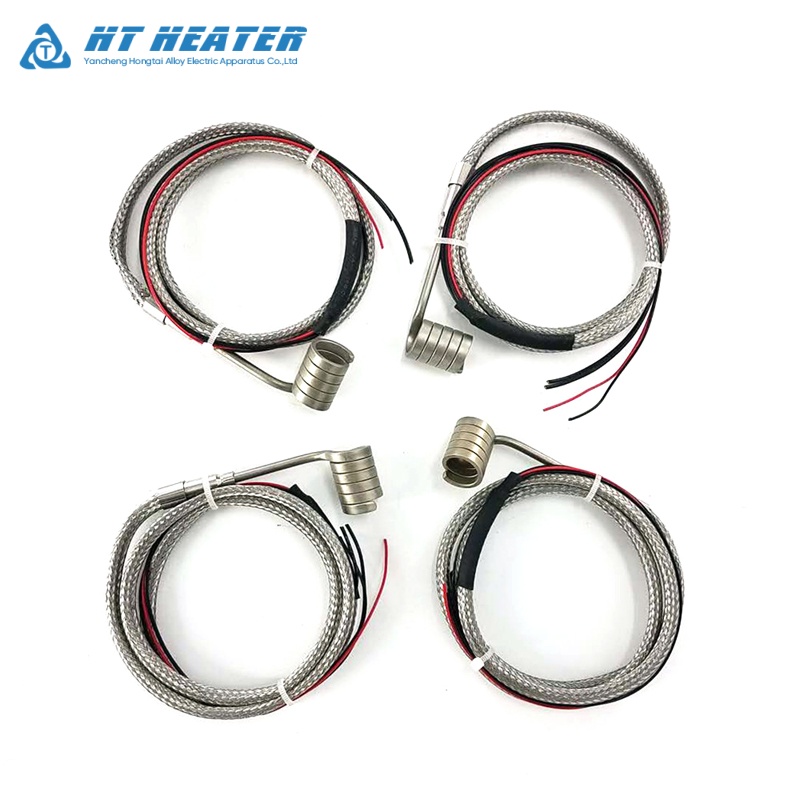

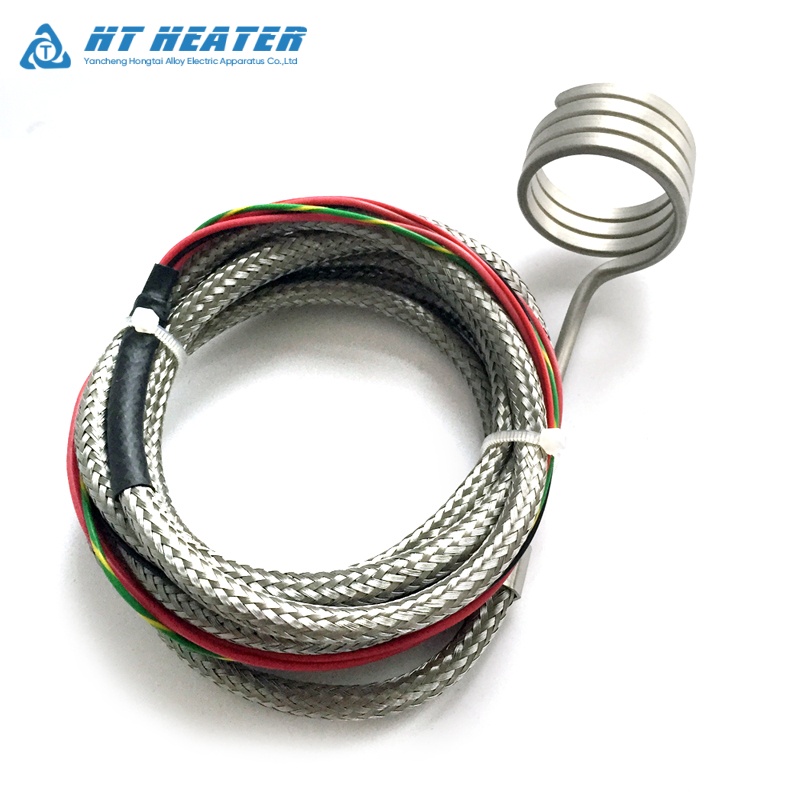

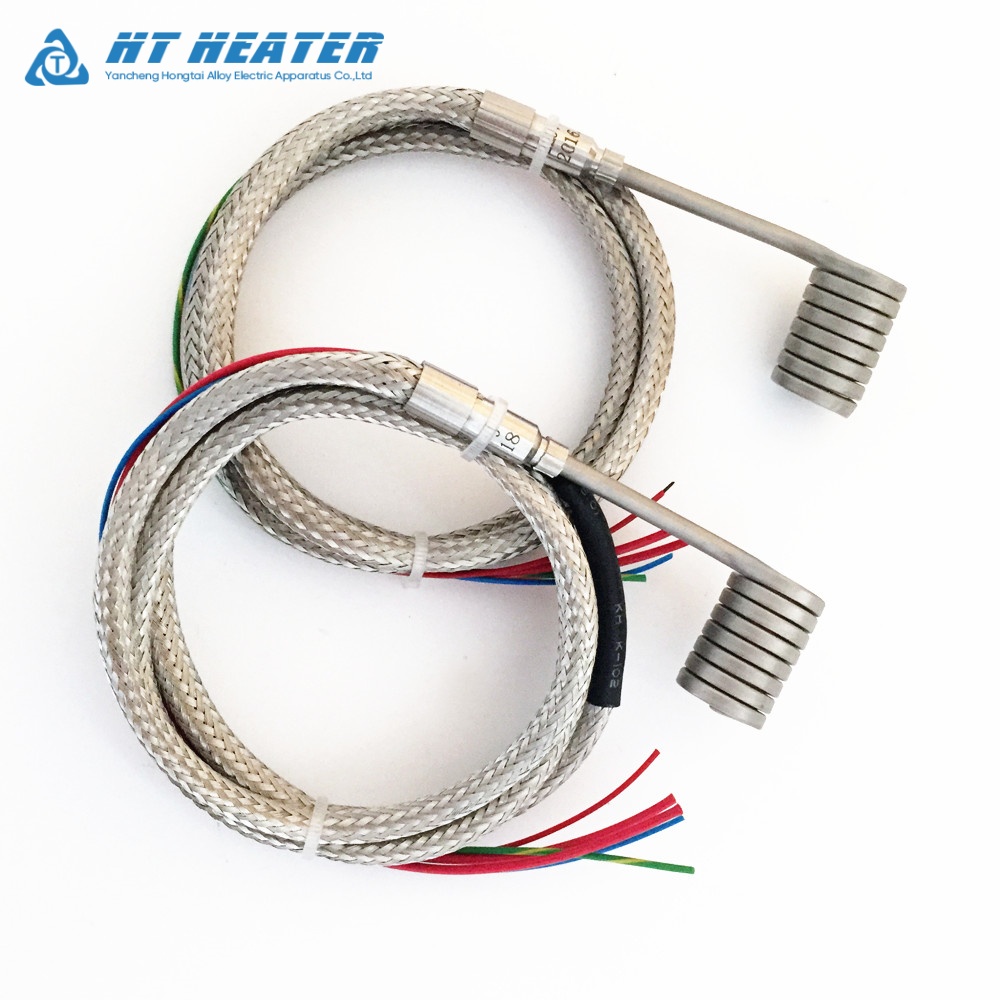

- ✓Metallic Braided Lead Armor: Stainless steel wire braid guards lead wires from abrasion, sharp bends, and crushing during mold installation.
-
✓ Uniform 360° Heat Distribution: Precision compacted stainless steel coil eliminates hot spots and thermal lag across the nozzle.
-
✓ Extreme Temperature Capability: Operates continuously up to 650°C (1202°F) for processing high-temperature engineering polymers.
-
✓ Integrated Thermocouple Options: Available with built-in Type J or Type K thermocouples for real-time closed-loop PID control.
-
✓ Moisture & Contamination Guard: Heavy-duty sealed transition junction prevents plastic melt leakage into internal terminal wiring.
-
✓ Precision CNC Coiling: Tight dimensional tolerance ensures zero internal air gaps and maximum contact area with nozzle walls.
-
✓ Reliable Quality: 30+ YEARS MANUFACTURING EXPERIENCE guarantees long operational lifespan.
-
✓ Quality Assured: UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including high-voltage insulation and grounding continuity tests.
-
✓ Global Compliance: CE, LVD, RoHS, and ISO 9001 certified.
Technical Specifications & Performance Data
| Parameter | Standard Value | Customizable Range | Notes |
| Voltage Rating | 220V / 230V AC (Single Phase) | 110V / 240V / 380V / 480V | Standard industrial mold controller compatibility |
| Wattage Range | 200W – 1200W | Built to nozzle specifications | Custom wattage distribution per coil pitch |
| Sheath Material | Stainless Steel 304 / 316L | Incoloy 800 / Custom Alloys | Excellent oxidation and corrosion resistance |
| Lead Wire Style | Metallic Braided Lead Wires | Kevlar Sleeve / PTFE / Armor | High flexibility with max mechanical armor protection |
| Max Operating Temp | 650°C (1202°F) | Up to 700°C short-term peak | Resists sheath warping and element burnout |
| Watt Density | 5.0 – 8.0 W/cm² | Up to 12.0 W/cm² | Engineered for ultra-fast thermal response |
| Thermocouple Type | Optional Built-in Type J / K | Ungrounded / Grounded | Enables precise real-time PID feedback control |
| Cross Section | 2.2 × 4.2 mm / 3.0 × 3.0 mm | Flat, Square, or Round profiles | Custom cross-section for maximum thermal contact |
| Inner Diameter (ID) | Ø10 mm – Ø50 mm | Built to nozzle drawings | Precision lathe coiled (±0.02 mm) |
| Warranty | 1 Year Standard | Extended coverage available | Guaranteed against manufacturing defects |
Industrial Applications & Solutions
-
Hot Runner Injection Nozzles: Concentrated thermal profile management for single and multi-cavity injection molds, eliminating nozzle drooling and gate stringing.
-
Plastic Injection Molding Manifolds: Custom coiled or straight elements integrated into manifold blocks for uniform melt viscosity control.
-
PET Preform Mold Systems: Maintains precise, balanced temperature control across high-cavitation PET bottle preform nozzle tips.
-
Engineering Plastic Processing: Efficiently processes demanding resins including PEEK, PEI, PPS, and glass-filled Nylon.
-
Packaging Sealing Jaws & Form-Fill-Seal Machinery: Direct continuous heating in high-speed packaging equipment requiring flexible lead movement and tough metal wire protection.
HT-Heater vs Standard Market Heaters
| Feature | HT-Heater (Factory) | Standard Market | Your Advantage |
| Lead Wire Protection | Heavy-Duty SS Metallic Braid | Basic Thin Fiberglass Sleeve | High resistance to pinching, abrasion, and oil |
| Thermal Limit | Continuous operation up to 650°C | Burnout / warps above 400°C | Handles extreme watt densities safely |
| Transition Joint | Reinforced Sealed Strain Relief Crimp | Open Loose Crimp Connection | Prevents lead wire breakage and resin leakage |
| Coil Precision | CNC Precision Formed & Coiled | Hand-Wound / Loose Fit | Zero internal air gap, rapid heat transfer |
| Manufacturing Exp. | 30+ YEARS EXPERIENCE | Unverified Workshops | Proven nozzle heating engineering |
| Quality Assurance | MULTIPLE RIGOROUS QUALITY CHECKS | Basic Resistance Test Only | ZERO DEFECT DELIVERY |
Installation & Integration Guidelines
-
Nozzle Mating Surface Cleaning: Clean the nozzle surface thoroughly to remove carbonized plastic, oil, and debris prior to mounting the coil heater.
-
Smooth Slide Fitting: Gently slide or expand the coiled heater onto the nozzle body. Never strike the element with a metal hammer to prevent cracking internal MgO insulation.
-
Metallic Braided Wire Routing: Route the metallic braided leads through mold wire channels. Secure wires with clamping plates to prevent sharp 90° bends or pinching under mold plates.
-
Thermocouple Wiring (If Equipped): Connect thermocouple leads using correct color polarity (For Type J: White = Positive, Red = Negative) directly to your PID controller.
-
Pre-Heating Bake-Out: Perform a low-voltage pre-heating cycle at 100°C for 10 minutes to clear ambient moisture absorbed during storage prior to ramping up to full operational voltage.
Customer Success Stories
Case 1:
Automotive Interior Mold Manufacturer (Germany)
-
Application: Multi-cavity hot runner mold producing glass-filled nylon (PA6-GF30) interior trims.
-
Challenge: Standard wire leads were frequently severed or crushed during fast mold clamping actions.
-
Solution: Industrial Hot Runner Nozzle Coil Heaters with Metallic Braided Lead Wires.
-
Results: WIRE FAILURE RATE REDUCED TO 0%. “The metallic braided leads withstand severe abrasion in our tight mold channels. HT-Heater UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS, and their batch repeatability is outstanding.”
Case 2:
Precision Medical Component Molder (USA)
-
Application: 32-cavity hot runner mold for medical syringe components using PEEK resin.
-
Challenge: Temperature drops at nozzle tips caused uneven cavity filling and high reject rates.
-
Solution: Custom 220V Coil Heaters with metallic braided wire protection and integrated Type J thermocouples.
-
Results: REJECT RATE DROPPED BY 16%. “30+ YEARS MANUFACTURING EXPERIENCE is evident in their thermal design. Heat distribution across all 32 nozzles is perfectly balanced.”
Pricing & Procurement Options
- Standard Production: MOQ 10 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact dimension repeatability across production runs. Tiered OEM volume discounts available for 50+ units.
- Lead Times: Standard Stock Sizes: 3-5 days. Custom Coiling & Wire Configurations: 7-10 days. Express sample dispatch available for urgent mold repairs.
- Global Logistics: Express delivery via DHL, FedEx, UPS, or air freight. Securely packed in anti-static bags and protective export cartons.
- Sample Orders: Custom samples manufactured upon CAD drawing approval. Every unit UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.
Global Certifications & Compliance
- CE Marking
Fully compliant with European safety and environmental standards. - LVD Compliance
Low Voltage Directive tested for continuous thermal load safety. - RoHS Compliant
Constructed using environmentally safe, lead-controlled brass alloys. - ISO 9001
Certified quality control covering CNC machining, coil pressing, and electrical testing.
Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.
Comprehensive After-Sales Support
-
- Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.
-
Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.
-
Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
Ready to Optimize Your Injection Molding?
Next Steps:
- 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
- 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
- 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
- 📞 Contact Hot Runner Experts – Response within 2 hours
-
