Core Value

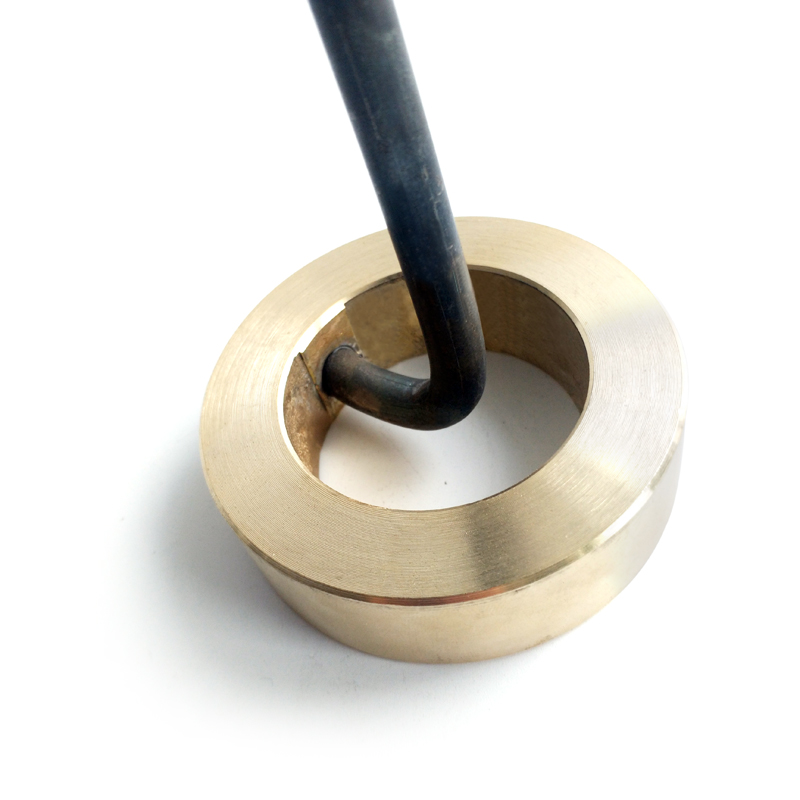

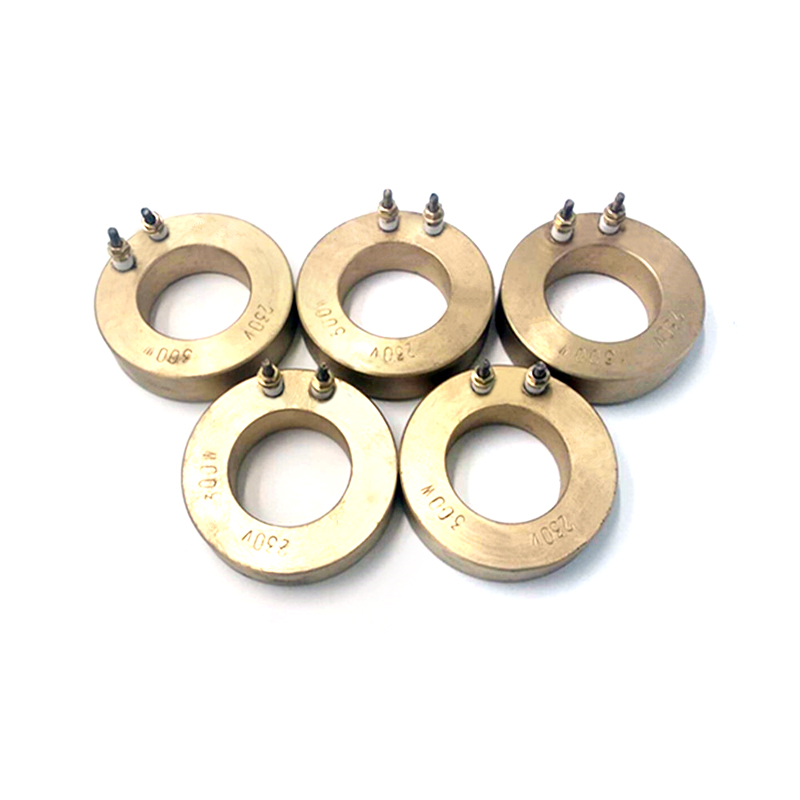

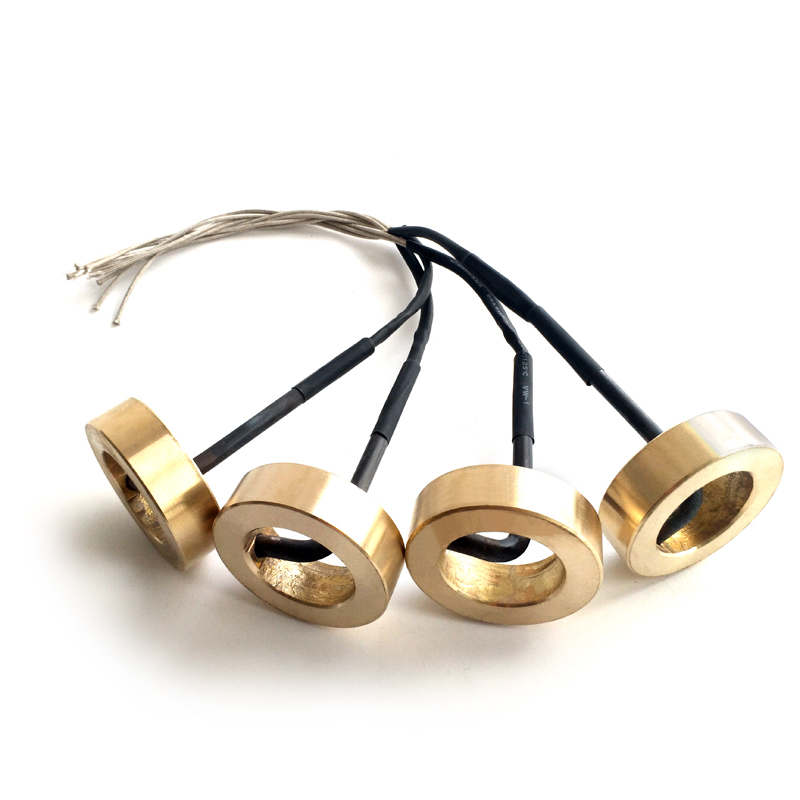

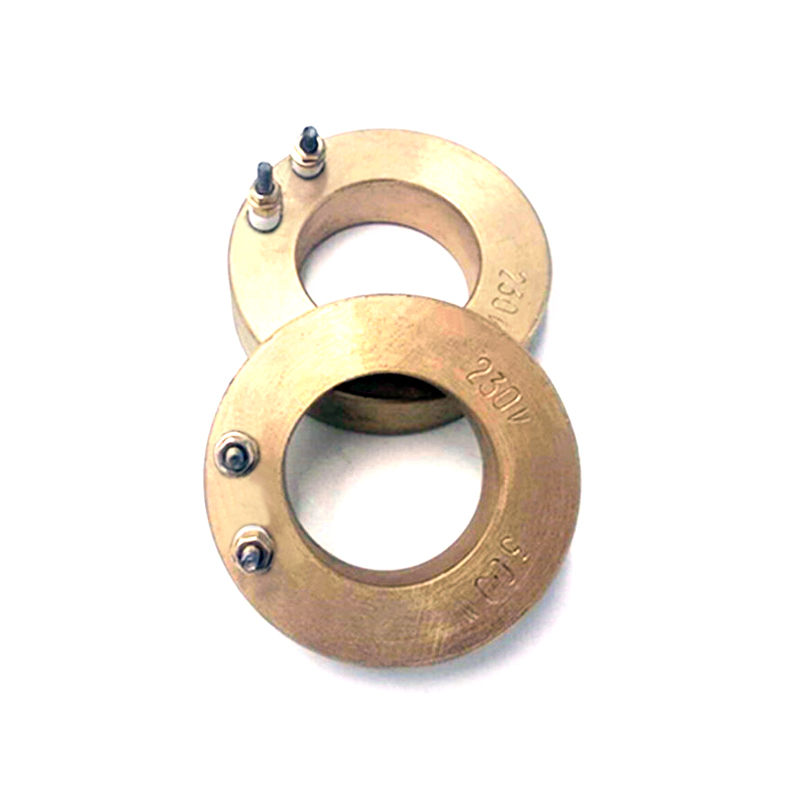

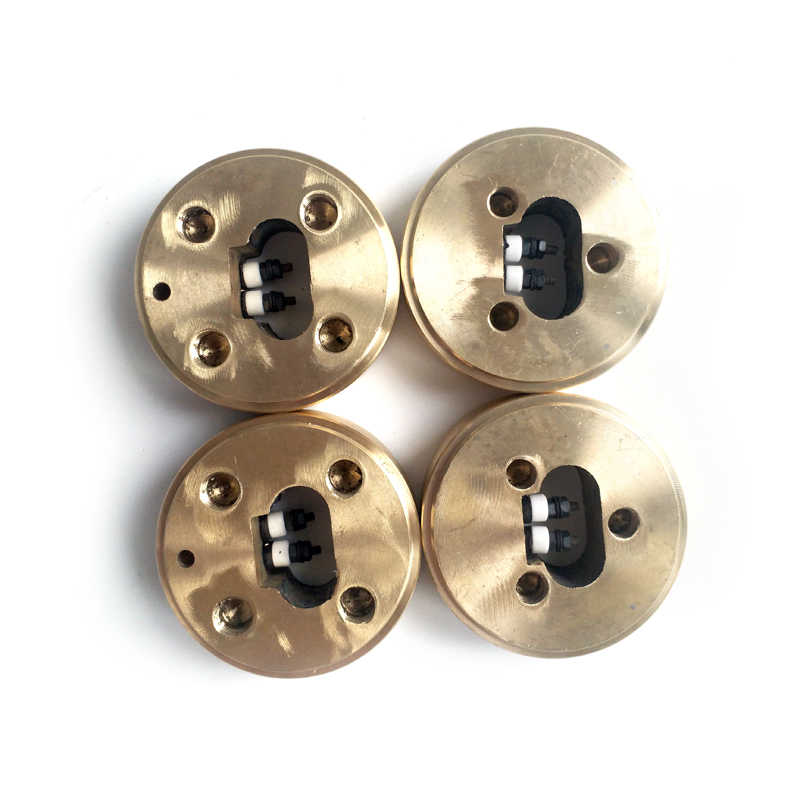

HT cast bronze heaters for high-speed packaging sealing jaws is engineered for continuous, ultra-high-temperature thermal transfer in heavy-duty automated packaging, vertical form-fill-seal (VFFS), and pouch sealing equipment. By casting heavy-duty tubular heating elements directly into a precision-machined, high-density bronze alloy, this unit completely eliminates internal air gaps and withstands intense thermal shock and high-frequency mechanical impact. Capable of operating continuously at temperatures up to 600°C (1112°F), cast bronze offers superior mechanical strength and thermal stability compared to aluminum, ensuring flat sealing jaw surfaces do not warp under relentless clamping pressure. This guarantees tight, leak-proof film seals, zero hot spots, and maximized packaging cycle speeds. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS for round-the-clock industrial reliability.

• ✓Extreme Temperature Capability: Operates reliably up to 600°C (1112°F) for high-speed film sealing applications.

• ✓ Warp-Free Structural Integrity: Premium bronze alloy withstands high mechanical clamping force without structural deformation.

• ✓ Precision CNC Machined: Milled to micro-inch tolerances to ensure perfect parallelism and direct thermal contact with sealing dies.

• ✓ Rapid Thermal Recovery: High thermal mass and conductivity ensure instantaneous temperature recovery during high-speed sealing cycles.

• ✓ Vibration & Shock Resistant: Solid cast structure easily handles high-frequency reciprocating jaw movement.

• ✓ Corrosion & Wear Resistant: Exceptional resistance to chemical exposure, plastic off-gassing, and harsh washdown environments.

• ✓ Reliable Quality: 30+ YEARS MANUFACTURING EXPERIENCE guarantees exceptional operational longevity.

• ✓ Quality Assured: UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including high-voltage dielectric and insulation resistance testing.

• ✓ Global Compliance: CE, LVD, RoHS, and ISO 9001 certified.

Technical Specifications & Performance Data

Industrial Applications & Solutions

1. • • High-Speed Vertical Form-Fill-Seal (VFFS) Machines: Provides instant, uniform heat to end-seal jaws for snack foods, grains, and hardware packaging lines.

     • Horizontal Flow Wrappers (HFFS): Delivers constant, precise thermal energy across rotary and reciprocating seal jaws operating at hundreds of cycles per minute.

     • Medical Pouch & Sterile Packaging Sealing: Maintains strict temperature tolerances ($\pm 1^\circ\text{C}$) across the sealing bar to guarantee validatable, tamper-evident seals.

     • Heavy-Duty Laminate & Foil Sealing: Handles high thermal demand required to melt multi-layer barrier films, foil pouches, and thick gusseted bags.

     • Thermoforming & Tray Sealing Platens: Provides robust, non-warping heat distribution for perimeter die sealing in food packaging tray sealers.

     • Bag Making & Cut-Off Jaws: Combined impulse-heat/continuous-heat sealing jaws for high-volume plastic bag conversion lines.

HT-Heater vs Standard Market Heaters

• Feature	HT-Heater (Factory)	Standard Market	Your Advantage
  Material Grade	High-Density Dense Bronze Alloy	Recycled / Porous Brass Alloys	Higher temperature resistance, zero internal warping
  Casting Integrity	Porosity-Free Vacuum / Die Casting	Basic Sand Casting	Uniform heat distribution, zero cold spots
  Machining Precision	CNC Precision Ground Surface ($\pm 0.02\text{ mm}$)	Standard Milling / Manual Polishing	Flawless jaw alignment, perfectly leak-proof seals
  Thermal Limit	Continuous operating up to 600°C	Fails / warps above 300°C	Enables ultra-fast machine speeds without jaw flex
  Manufacturing Experience	30+ YEARS EXPERIENCE	Unverified / General Foundries	Specialized packaging heat-seal engineering
  Quality Assurance	MULTIPLE RIGOROUS QUALITY CHECKS	Basic Resistance Test Only	ZERO DEFECT DELIVERY

Installation & Integration Guidelines

• • • Surface Mating & Alignment: Clean the jaw mounting interface meticulously. Ensure flat, parallel alignment with the opposing sealing surface to prevent uneven clamping pressure.

    • Torque Uniformity & Thermal Expansion: Tighten mounting bolts in a diagonal, crosswise pattern to specified torque levels. Re-torque after the initial warm-up cycle at operating temperature ($>200^\circ\text{C}$) to account for thermal expansion.

    • High-Temp Thermal Interface Compounds: Apply a thin layer of high-temperature thermal transfer compound (rated $>600^\circ\text{C}$) to eliminate micro-air gaps between the heater block and jaw baseplate.

    • Wiring & Flexible Lead Protection: Use flexible nickel-plated conductors with high-temperature silicone-fiberglass sleeving. Ensure wire routing accounts for continuous reciprocating jaw motion to prevent strain fatigue.

    • Sensor Placement & PID Tuning: Insert thermocouples fully into the designated deep-well pocket close to the sealing face. Tune PID controllers with tight proportional bands to manage quick thermal recovery during continuous film contact.

Customer Success Stories

• Case 1: Snack Food Packaging Equipment OEM (USA)

  • Application: High-speed VFFS potato chip bag sealing jaws operating at 120 bags/min.

  • Challenge: Aluminum heaters were bowing under continuous clamping force at $220^\circ\text{C}$, causing micro-leaks in seal seams.

  • Solution: Custom CNC-ground Cast Bronze Sealing Jaw Heaters with integrated Type K thermowells.

  • Results: SEAL LEAKAGE DROPPED TO 0%. “The structural rigidity of HT-Heater’s bronze units eliminated jaw flexing completely. UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS is evident in their batch consistency.”

Case 2: Medical Device Pouch Sealing Line (Ireland)

• Application: Sterile Tyvek pouch rotary heat sealing machine.

• Challenge: Strict regulatory requirements required seal temperature uniformity within $\pm 1.5^\circ\text{C}$ across a 400 mm jaw bar.

• Solution: Precision Cast Bronze Bar Heaters with dual-zone heated element cores.

• Results: TEMPERATURE DEVIATION REDUCED TO $<\pm 0.8^\circ\text{C}$. “Their 30+ YEARS MANUFACTURING EXPERIENCE shows in the thermal balance. We passed validation on the first attempt.”

Case 3: Coffee & Pet Food Foil Pouch Supplier (Japan)

• Application: Heavy multi-layer foil pouch reciprocating sealer.

• Challenge: Fast heat dissipation during thick foil contact caused temperature drops, slowing down machine speed.

• Solution: High-watt-density ($7.5\text{ W/cm}^2$) Cast Bronze Jaw Heaters.

• Results: PACKAGING LINE SPEED INCREASED BY 35%. “Thermal recovery is virtually instant. Excellent build quality and incredible durability under high mechanical cycle rates.”

Pricing & Procurement Options

• Standard Production: MOQ 5 pieces per batch. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact dimension repeatability across production runs. Tiered OEM discounts available for $20+$ units.

• Lead Times: Standard Bronze Castings: 10-12 production days. Custom CNC Mold & Machining: 12-15 days. Express sample dispatch available for urgent machine retrofits.

• Global Logistics: Worldwide express shipping via DHL, FedEx, UPS, or air/ocean freight. Packed in export-grade, impact-resistant wooden cases with customized foam inserts.

• Sample Orders: Custom samples produced upon CAD drawing approval. Every sample UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including X-ray density verification and insulation testing prior to delivery.

Global Certifications & Compliance

• CE Marking: Fully compliant with relevant European directive standards for industrial electric heating equipment.

• LVD Compliance: Low Voltage Directive tested for safety under continuous thermal load.

• RoHS Compliant: Constructed using environmentally safe, lead-controlled copper alloys.

• ISO 9001:2015: Certified quality control system covering casting, machining, and final electrical testing.

• Quality Documentation: Certificate of Conformity (COC), insulation resistance test certificates, and dimensional inspection reports included with every shipment.

Comprehensive After-Sales Support

• Warranty: 1-Year Comprehensive Warranty covering internal heating element and casting integrity.

• Technical Support: Dedicated packaging application engineers available for thermal mass calculation, watt density selection, and CAD design assistance.

• Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with guaranteed technical response within 2 hours.
