Core Value

The High Temp Silicon Carbide SiC Heater Rods for Furnaces are high-performance non-metallic heating elements designed for demanding high-temperature thermal processing systems, heat treatment furnaces, ceramic kilns, and glass forehearths. Manufactured from high-purity, recrystallized Green Silicon Carbide ($\alpha\text{-SiC}$) grains through high-temperature reaction sintering, these ceramic heater rods spontaneously generate a protective silicon dioxide ($\text{SiO}_2$) surface film under thermal loads. This self-healing glass layer shields the internal matrix from atmospheric oxidation and chemical corrosion during continuous operation at temperatures up to 1400°C (2552°F).

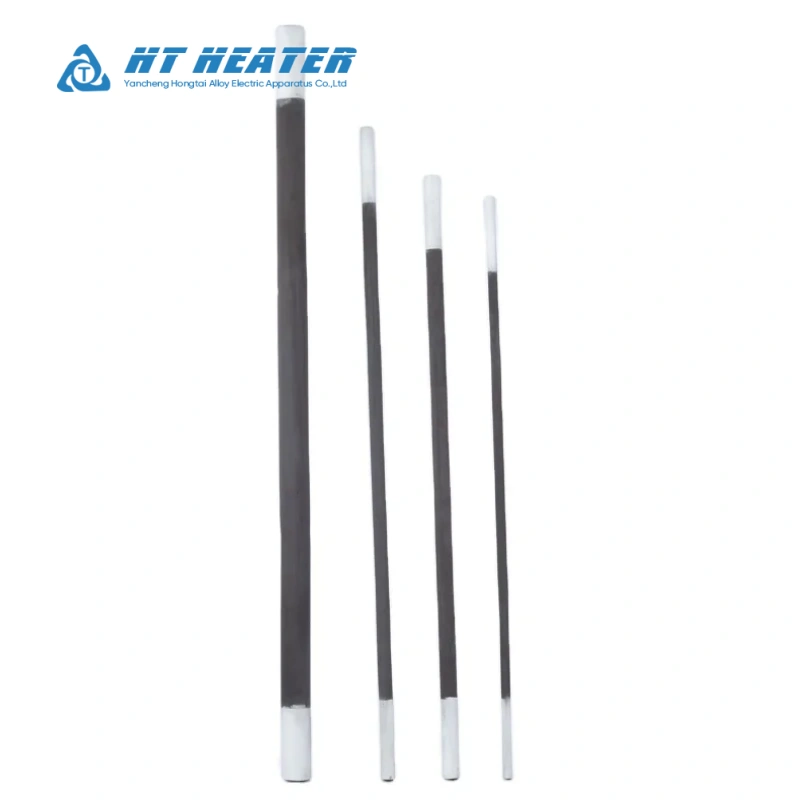

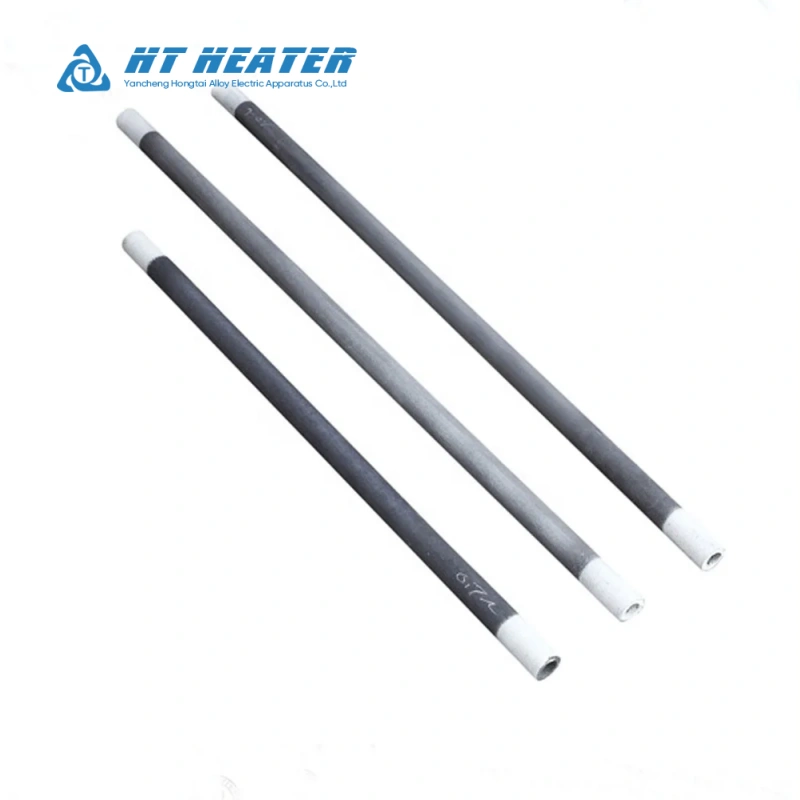

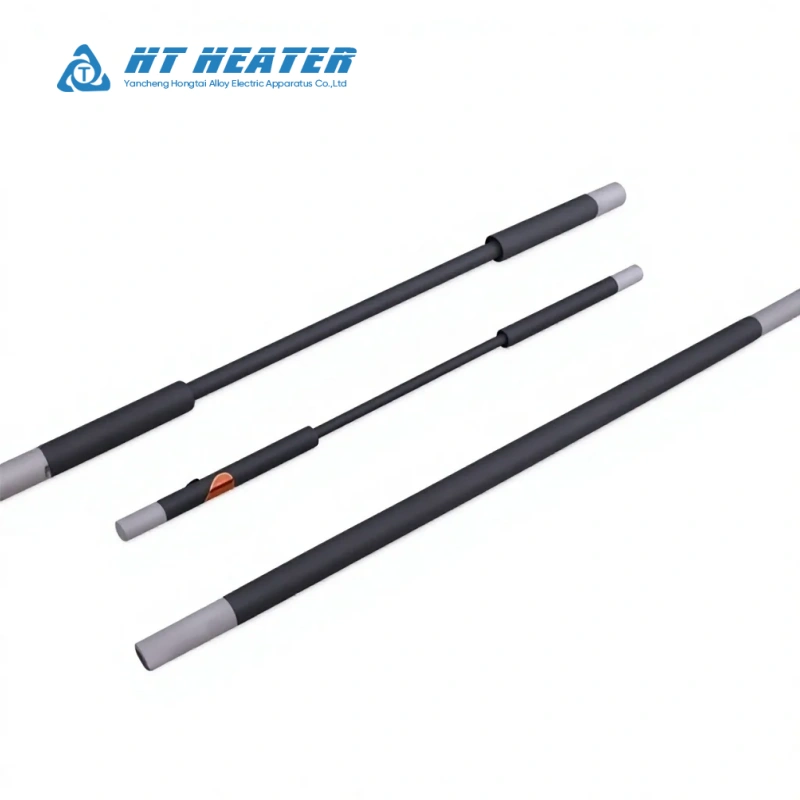

Engineered in standard Equal Diameter (ED/GD) and Dumbbell (DB) rod geometries, these SiC heater rods deliver high power output and rapid thermal response without structural sagging or thermal fatigue. Featuring low-resistance cold terminal ends to minimize electrical power losses through furnace wall penetrations, SiC heater rods provide uniform radiant heating and high mechanical rigidity. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS for precise electrical resistance consistency and long service life.

• ✓ 1400°C High-Temperature Stability: Operates continuously up to 1400°C (2552°F) in air and protective neutral atmospheres without deformation or thermal shock failure.
• ✓ High Watt Density & Fast Ramp-Up: Handles high surface loading (up to 15–20 W/cm²), enabling rapid heating ramps and increased process efficiency.
• ✓ Protective Anti-Oxidation Layer: Self-forming $\text{SiO}_2$ film retards internal oxidation and extends element life in harsh industrial atmospheres.
• ✓ Low Cold-End Power Loss: Formulated low-resistance cold terminals remain cool at furnace wall passthroughs, protecting connection clamps and wiring.
• ✓ Rigid Structural Integrity: Recrystallized high-density ceramic structure eliminates element sagging or bowing during long high-heat cycles.

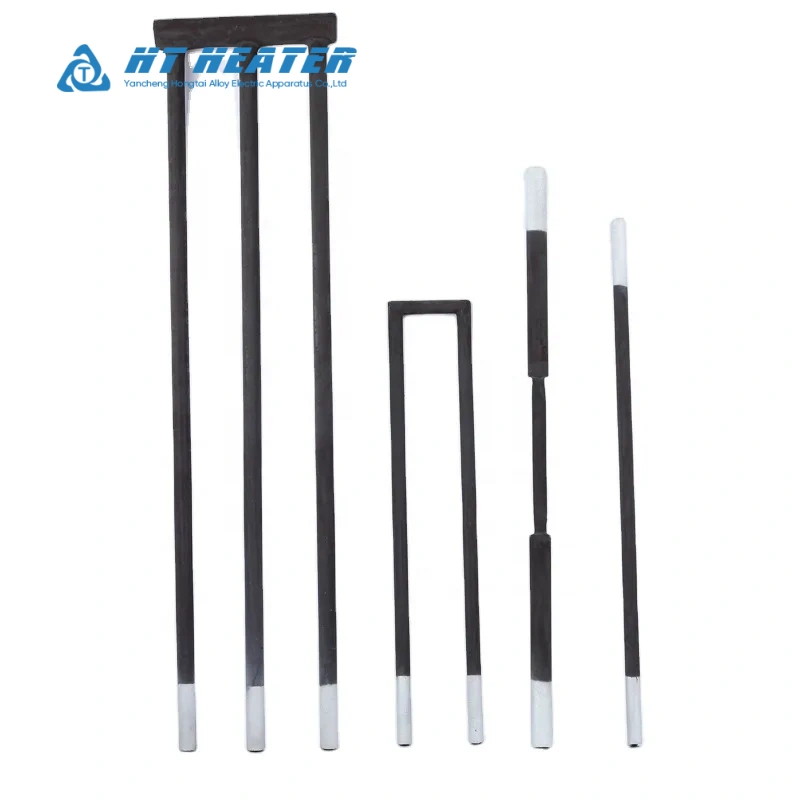

• ✓ Flexible Geometry Options: Available in Equal Diameter (ED), Dumbbell (DB), and custom cold-end length configurations to match any furnace lining.
• ✓ Reliable Quality: 30+ YEARS MANUFACTURING EXPERIENCE guarantees precise ceramic sintering, uniform resistance per unit length, and tight dimensional control.
• ✓ Quality Assured: UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including hot and cold state resistance testing, density verification, and dimensional tolerance checks.
• ✓ Global Compliance: CE, RoHS, ISO 9001, and ISO 14001 certified.

Technical Specifications & Performance Data

Industrial Applications & Solutions

• Heat Treatment Furnaces: Annealing, hardening, tempering, and forging furnaces operating in air or controlled neutral gas atmospheres.
• Ceramic & Refractory Kilns: Primary heating rods for firing porcelain, technical ceramics, and high-alumina refractories in shuttle and roller kilns.
• Glass Industry Forehearths & Feeders: High-radiance top-heating elements for precise temperature conditioning in glass container and tableware forehearths.
• Powder Metallurgy & Sintering: Sintering structural steel components, tungsten carbide tools, and ferrite cores in push-rod and belt furnaces.
• Laboratory Muffle Furnaces: High-efficiency benchtop box and tube muffle furnaces requiring fast thermal response and uniform heating up to 1400°C.

HT-Heater vs Standard Market Heating Coils

Installation & Handling Guidelines

• Resistance Batch Matching: When replacing SiC rods in a multi-element furnace zone, install rods from the same resistance calibration group ($\pm 5\%$) to maintain uniform current draw across parallel and series branches.
• Handle with Care: SiC heater rods are hard but brittle ceramics at room temperature. Avoid bending, impact, or mechanical stress during unpacking and installation.
• Flexible Connection Straps: Always connect cold-end terminals to power busbars using flexible aluminum braided connection straps. Do not clamp rigid solid copper wires directly to the terminals, as thermal expansion will cause terminal cracking.
• Thermal Expansion Clearance: Ensure adequate radial and axial clearance in ceramic wall passage sleeves (cut holes 5–10 mm larger than the rod OD) to allow free thermal expansion without binding.
• Managing Resistance Aging: Over hundreds of operating hours, SiC elements gradually increase in electrical resistance (aging). Use a multi-tap transformer or SCR power regulator to gradually increase voltage and maintain constant power output over time.

Customer Success Stories

Case 1:

Heat Treatment Plant Operator (USA)

• Application: High-temperature hardening furnaces operating continuously at 1300°C.

• Challenge: Premature rod cracking and high resistance drift with standard market SiC elements required frequent power recalibrations.

• Solution: HT-Heater High-Purity Green SiC Heater Rods (ED Type Ø 25/250/300 mm).

• Results: ELEMENT OPERATIONAL LIFE EXTENDED BY 50%. “HT-Heater’s SiC rods show remarkably slow resistance drift. HT-Heater UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS, and electrical resistance matching from batch to batch is exceptionally precise.”

Case 2:

Technical Ceramics Kiln Builder (South Korea)

• Application: Shuttle kiln firing alumina ceramic substrates at 1380°C.

• Challenge: Cold end overheating on former rods caused connection clamp failure and furnace wall insulation degradation.

• Solution: Dumbbell Type SiC Heater Rods (DB Type) with low-resistance cold ends.

• Results: TERMINAL OVERHEATING ELIMINATED. “30+ YEARS MANUFACTURING EXPERIENCE is apparent in their cold-end joint technology. Terminal temperatures dropped by 120°C, completely protecting our busbars and wiring.”

Pricing & Procurement Options

• Standard Production: MOQ 5 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact resistance matching and dimensional repeatability across production lots. Tiered volume discounts available for 50+ unit orders.

• Lead Times: Standard Catalog Dimensions (Straight Rods OD 12–30 mm): In stock, 3-5 days. Custom Dumbbell Shapes or Heavy Diameters (OD 35–54 mm): 7-10 days. Express air freight with protective wooden crating.

• Global Logistics: Encased in individual shock-absorbing foam tubes within reinforced wooden export crates to prevent transportation breakage.

• Sample Orders: Custom sample elements produced upon CAD drawing and electrical specification approval. Every shipment UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.

Global Certifications & Compliance

• CE Marking
  Fully compliant with European safety and environmental standards.
• LVD Compliance
  Low Voltage Directive tested for continuous thermal load safety.
• RoHS Compliant
  Constructed using environmentally safe, lead-controlled brass alloys.
• ISO 9001
  Certified quality control covering CNC machining, coil pressing, and electrical testing.

Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.

Comprehensive After-Sales Support

• • Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.

  • Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.

  • Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.

Ready to Optimize Your Injection Molding?

Next Steps:

• 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
• 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
• 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
• 📞 Contact Hot Runner Experts – Response within 2 hours
