Core Value

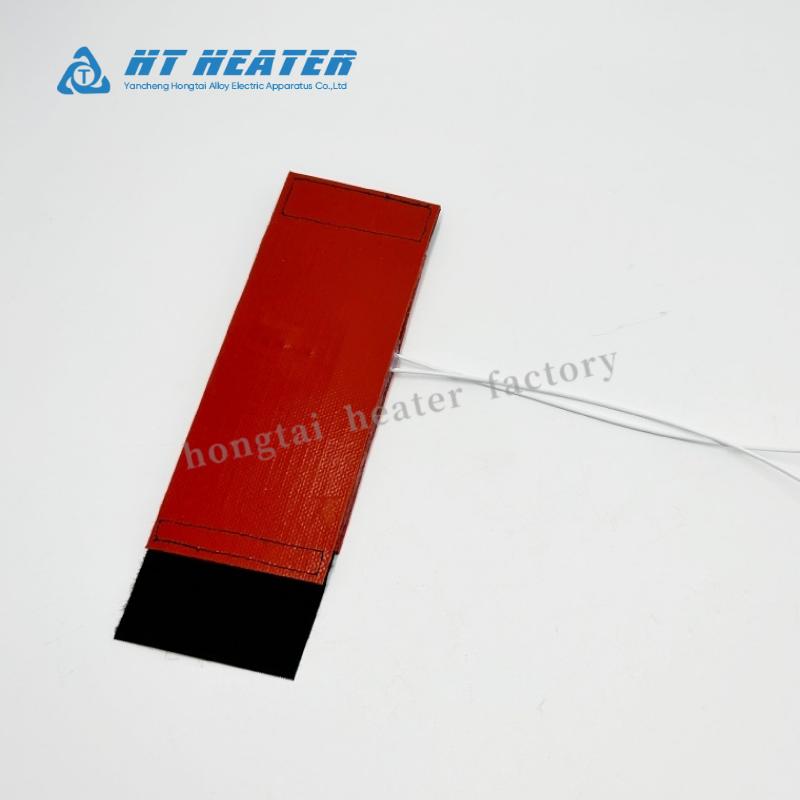

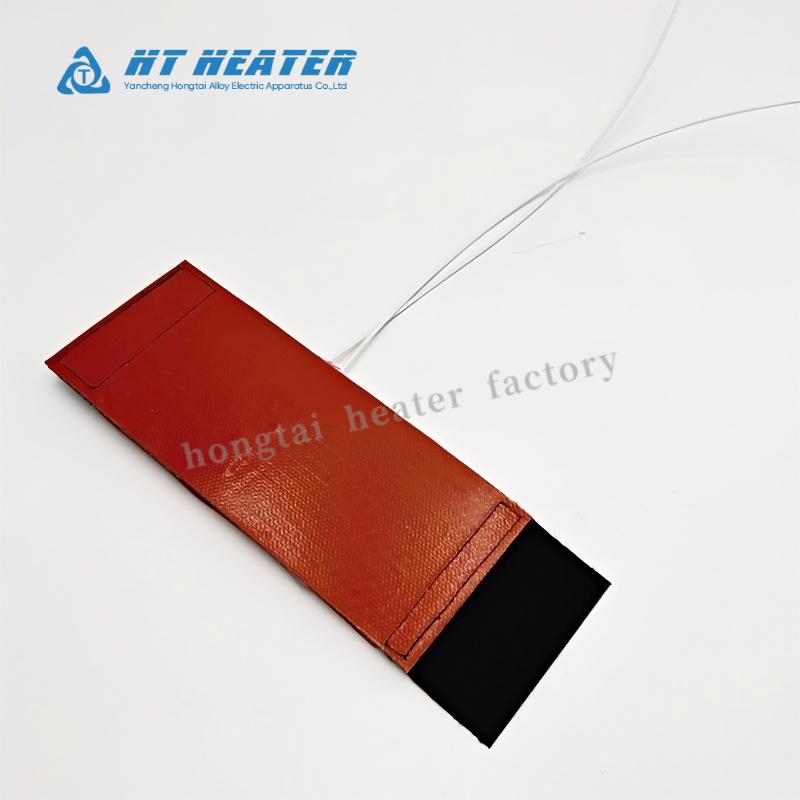

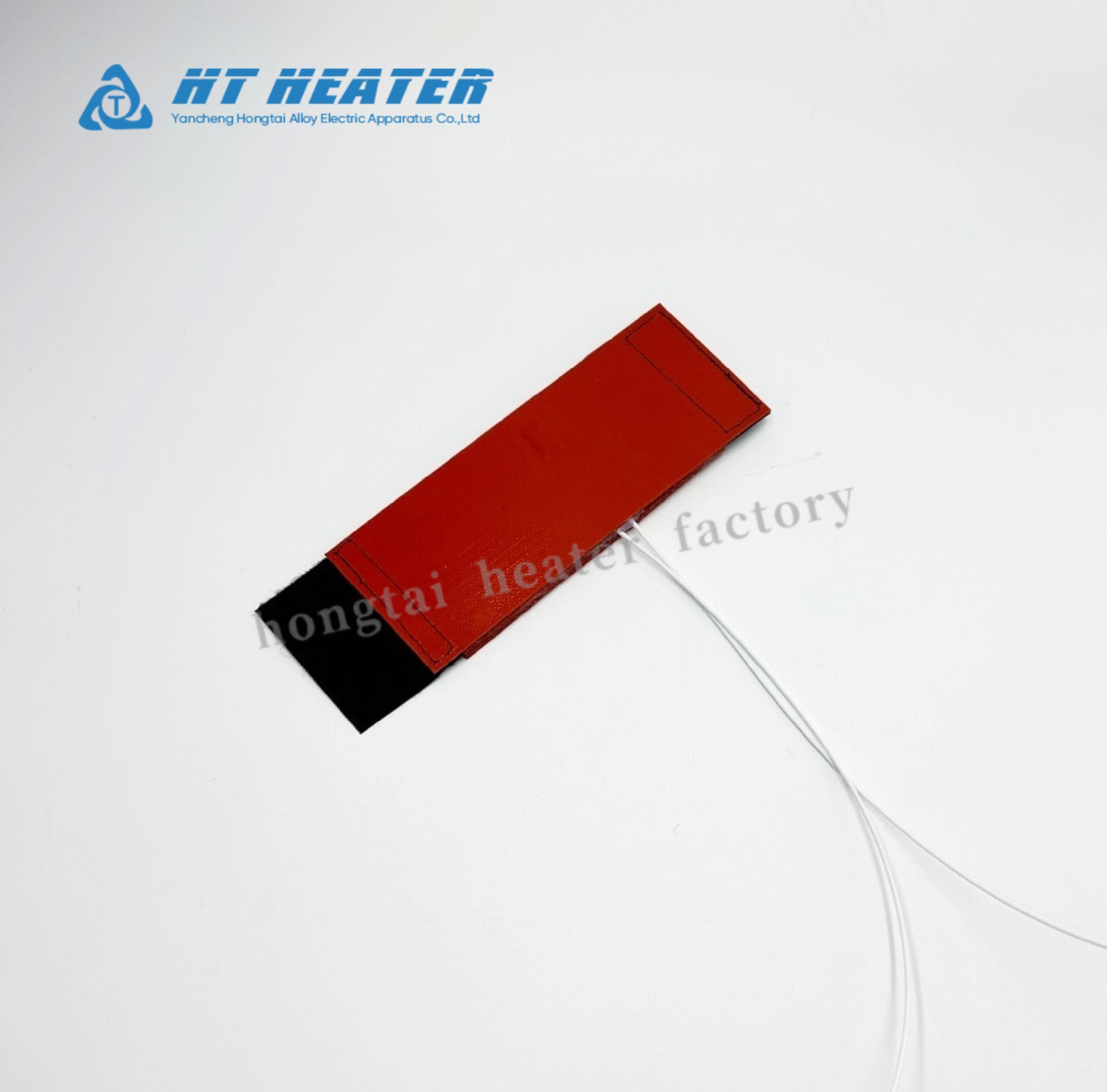

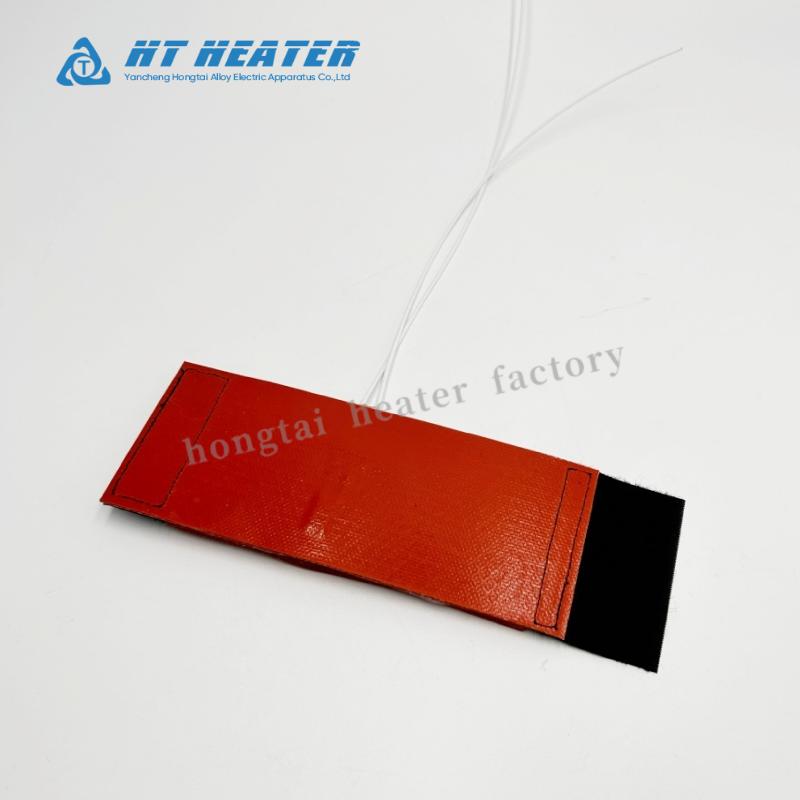

The 220V High Temp Fiberglass Reinforced Silicone Rubber Heater is a highly versatile, surface-conforming surface heating solution engineered for rapid mounting and removal on cylindrical, spherical, or irregular metal surfaces. Built with high-tensile fiberglass fabric embedded between layers of premium silicone rubber, this heater combines mechanical tear resistance with extreme flexibility and high electrical insulation strength.
Featuring integrated high-temperature industrial Velcro (hook-and-loop) fasteners, the element wraps snugly around target components—such as gas cylinders, process pipelines, valves, pumps, and drums—ensuring intimate surface contact without requiring pressure-sensitive adhesives or complex mechanical metal clamps. High-purity nickel-chromium (Ni80Cr20) resistance alloy wire or precision-etched foil circuits ensure uniform heat transfer across the entire surface. Designed for continuous operating temperatures up to 200°C (with peak limits up to 230°C), every heater is engineered for moisture resistance, chemical durability, and long operational life under repeated thermal cycling.
- ✓ Tool-Free Velcro Installation: High-temp hook-and-loop straps allow rapid wrap-around installation, adjustment, and frequent removal for maintenance inspection.
- ✓ Fiberglass Fabric Reinforced: High-tensile fiberglass mesh substrate prevents tearing, stretching, and mechanical puncture under industrial handling.
- ✓ Uniform Thermal Profile: Etched foil or resistance wire element layout delivers even watt density, eliminating localized cold zones on curved vessels.
- ✓ High Temperature Capability: Continuous operation at 200°C (392°F), with short-term exposure resistance up to 230°C (446°F).
- ✓ Moisture & Chemical Resistant: Silicone outer sheath protects heating circuits against moisture, weather, mild acids, industrial oils, and chemical splatter.
- ✓ Flexible & Conforming: Easily wraps around small-diameter piping (down to 25mm radius) or large industrial storage tanks.
- ✓ Integrated Temperature Control Options: Compatible with digital temperature controllers, inline thermal fuses, PT100 sensors, or K/J thermocouples.
- ✓ Quality Assured: 100% tested for dielectric withstand voltage (1500V/1min), insulation resistance, and dimensional accuracy prior to dispatch.
Technical Specifications & Performance Data
| Parameter | Standard Value | Customizable Range | Notes |
| Operating Voltage | 12V / 24V / 110V / 220V / 230V | 5V DC to 480V AC | Single-phase or multi-circuit options |
| Power Density | 0.4 W/cm² to 0.8 W/cm² | 0.1 W/cm² to 1.2 W/cm² | Dependent on max operating temp & dissipation |
| Max Operating Temp | 200°C (392°F) Continuous | Up to 230°C (446°F) Peak | High-temp silicone & fiberglass blend |
| Min Ambient Temp | -50°C (-58°F) | Down to -60°C | Excellent low-temp flexibility without cracking |
| Thickness | 1.5 mm (Standard Wire-Wound) | 0.8 mm to 2.5 mm | Thinner profile available with Etched Foil |
| Fastening Type | High-Temp Industrial Velcro | Buckle Straps, Eyelets, Springs | Flame-retardant hook-and-loop rated to 180°C–200°C |
| Dielectric Strength | 1500 V AC / 1 min | Up to 2000 V AC | High insulation safety factor |
| Insulation Resistance | ≥500 MΩ (Cold) | ≥50 MΩ (Hot / Humid) | Tested under ambient conditions |
| Internal Heating Wire | Ni80Cr20 Alloy Wire / Foil | Custom Resistance Distribution | Computerized winding ensures precise resistance |
| Lead Wire Type | PTFE / Silicone Insulated | Fiberglass Braided Armor | Moisture-sealed cable entry zone |
Industrial Applications & Solutions
- Gas Cylinder Heating: Maintains vapor pressure and flow rates in propane, CO2, and specialty gas bottles in cold environments.
- Pipeline Freeze Protection & Viscosity Control: Keeps heavy oils, resins, waxes, and chemicals fluid inside process piping and manifolds.
- Valve, Pump & Filter Heating: Custom-fitted wrap jackets prevent freeze-up and condensation in outdoor liquid transport systems.
- Industrial Drum & Barrel Warming: Wraps around standard 55-gallon steel or plastic drums for gentle, uniform material pre-heating.
- Composite Curing & Repair: Provides uniform surface heating for aerospace and automotive composite layup curing.
- Laboratory & Analytical Equipment: Precision temperature maintenance for vacuum chambers, reaction flasks, and testing cylinders.
High-Temp Fiberglass Silicone Heaters vs Standard Market Options
| Feature | Our Velcro Silicone Heater | Generic Adhesive Silicone Heater | Your Advantage |
| Mounting / Reusability | Adjustable High-Temp Velcro | One-Time Pressure Sensitive Adhesive (PSA) | Unlimited removal & re-installation for inspection without damaging element. |
| Tear Strength | Double-Layer Fiberglass Mesh | Single Light Cloth or Unsupported Rubber | Resists tears, abrasion, and mechanical abuse during daily field operation. |
| Thermal Conformance | Flexible Elastic Tension Wrapping | Rigid Metal Clamping / Permanent Glue | Snug fit eliminates air gaps, reducing burnout risk and improving heat transfer. |
| Moisture Sealing | Vulcanized Hermetic Edge Seal | Basic Cut Edge / Unsealed | Prevents moisture and chemical ingress into the internal heating element. |
| Thermal Uniformity | Computer-Engineered Wire Pitch | Hand-Laid Wiring | Eliminates hot spots and ensures flat surface temperature distribution. |
Installation & Handling Guidelines
- Surface Preparation: Clean the target pipe, tank, or cylinder surface to remove grease, rust, or loose rust scale for optimal thermal contact.
- Wrapping & Positioning: Wrap the silicone heater snugly around the target vessel, ensuring the heating surface sits flat against the metal wall without folds, overlap, or air pockets.
- Velcro Tensioning: Pull the Velcro straps tight to lock the heater in place. Ensure equal tension across all straps so the element maintains firm contact throughout thermal expansion.
- Electrical Wiring: Connect power leads to the rated supply voltage printed on the product label. Never connect a low-voltage element directly to grid voltage.
- Temperature Control: Use an external digital thermostat or integrated temperature sensor (e.g., PT100/Thermocouple) to prevent exceeding the max continuous temperature limit of 200°C.
- Storage & Maintenance: When removing, allow the heater to cool completely. Store flat or loosely rolled; do not tightly fold or crease the heater, as sharp bends can break internal resistance wires.
Customer Success Stories
Case 1:
Industrial Gas Distribution Partner (Canada)
-
Application: Gas cylinder warming jackets for propane and SF6 gas supply banks during sub-zero winter temperatures.
-
Challenge: Standard adhesive heating pads peeled off due to freezing condensation, and metal clamp heaters were too slow to swap.
-
Solution: Custom 120V 300W High-Temp Fiberglass Silicone Rubber Heaters with heavy-duty Velcro closure straps and built-in 60°C bimetal thermostat.
-
Results: ZERO DOWN-TIME DURING WINTER. “The Velcro system allowed operators to swap heaters between cylinders in under 30 seconds. Pressure drop issues during freezing months were completely resolved.”
Case 2:
Chemical Processing Facility (Germany)
-
Application: Viscosity control for industrial valve manifolds transferring high-viscosity synthetic resins.
-
Challenge: Valves required frequent maintenance teardowns, making permanent adhesive heaters impractical and costly.
-
Solution: Tailor-made fiberglass reinforced silicone heating jackets with multi-strap Velcro fasteners and integrated K-type thermocouples.
-
Results: MAINTENANCE EFFICIENCY INCREASED BY 50%. “Our technicians can unfasten the Velcro heater in seconds, service the valve, and strap the heater right back on without buying replacement units.”
Pricing & Procurement Options
- OEM Customization: Tailored shapes, custom cutout holes for pipe nozzles, specialized voltage/wattage configurations, and custom strap lengths.
- Lead Times: Custom samples: 3–5 working days. Bulk production orders: 8–12 working days upon technical drawing sign-off.
- Packaging & Shipping: Individually bagged with protective foam padding and packed into heavy-duty 5-ply export cartons to prevent bending or lead wire stress during international transit.
- Minimum Order Quantity (MOQ): Low MOQ starting at 5–10 units for custom dimensions; competitive volume pricing tiers for equipment manufacturers.
Global Certifications & Compliance
- CE Marking
Fully compliant with European safety and environmental standards. - LVD Compliance
Low Voltage Directive tested for continuous thermal load safety. - RoHS Compliant
Constructed using environmentally safe, lead-controlled brass alloys. - ISO 9001
Certified quality control covering CNC machining, coil pressing, and electrical testing.
Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.
Comprehensive After-Sales Support
-
- Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.
-
Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.
-
Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
Ready to Optimize Your Injection Molding?
Next Steps:
- 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
- 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
- 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
- 📞 Contact Hot Runner Experts – Response within 2 hours
-
