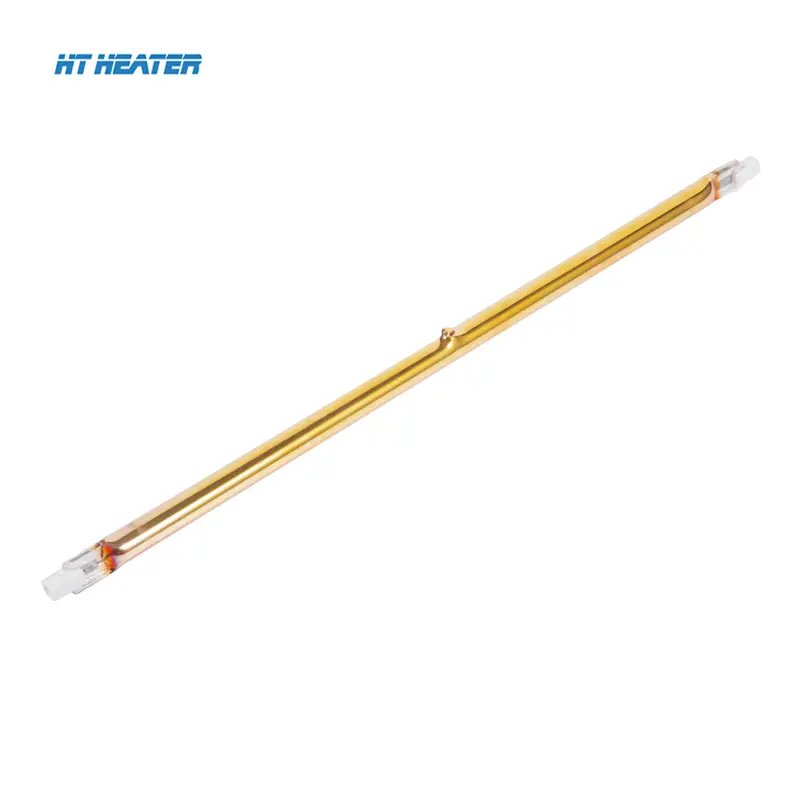

High Purity JGS1 Quartz Infrared Heating Lamp (Semiconductor Grade)

In the microelectronics, semiconductor, and photovoltaic (solar) manufacturing sectors, contamination is the enemy of yield. Standard industrial infrared lamps, while powerful, can outgas trace impurities or shed microscopic particles at extreme temperatures. The Hongtai High purity quartz heater is meticulously engineered to meet the draconian cleanliness standards of these high-tech industries.

Manufactured using ultra-premium JGS1 optical-grade quartz glass, this highly specialized emitter boasts a Silicon Dioxide ($SiO_2$) purity level exceeding 99.99%. Furthermore, it maintains a strictly controlled Hydroxyl (OH) content of less than 5 ppm. This guarantees absolute structural stability, zero particulate volatilization, and zero outgassing, making it the ultimate Wafer heating infrared source for Class 100 (ISO 5) and Class 10 (ISO 4) cleanroom environments.

1. The Science of JGS1 and RTP Applications

In semiconductor fabrication, Rapid Thermal Processing (RTP) requires silicon wafers to be heated to temperatures exceeding 1000°C in a matter of seconds.

The RTP heating lamp must deliver a massive, uniform flux of short-wave infrared energy (0.8 – 1.2 μm) without introducing any metallic or ionic contaminants into the vacuum chamber.

Our JGS1 quartz tubes are synthetic and highly refined. Unlike natural quartz which contains trace metals (Aluminum, Iron, Sodium) that can migrate and poison a silicon wafer at high heat, JGS1 is chemically inert. Additionally, it offers exceptional resistance to the highly corrosive hydrofluoric (HF) and hydrochloric (HCl) acid vapors commonly used in wafer wet-cleaning bench processes.

2. Micro-Diameter and Hermetic Sealing Technology

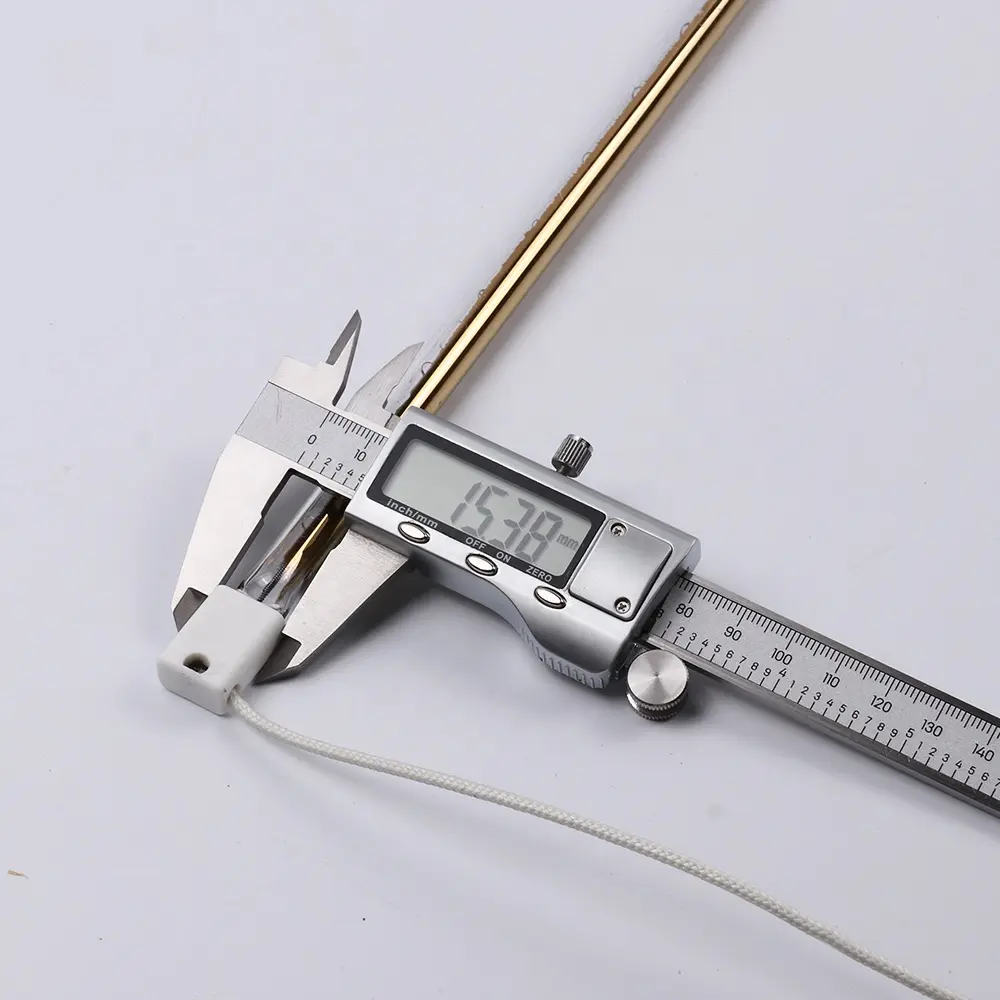

• Micro-Tube Geometries: Space inside an RTP chamber or a solar cell stringer is measured in millimeters. We offer ultra-compact tube diameters as small as 8mm OD, allowing equipment manufacturers to pack a higher density of lamps into a smaller thermal footprint, achieving extreme watt densities.

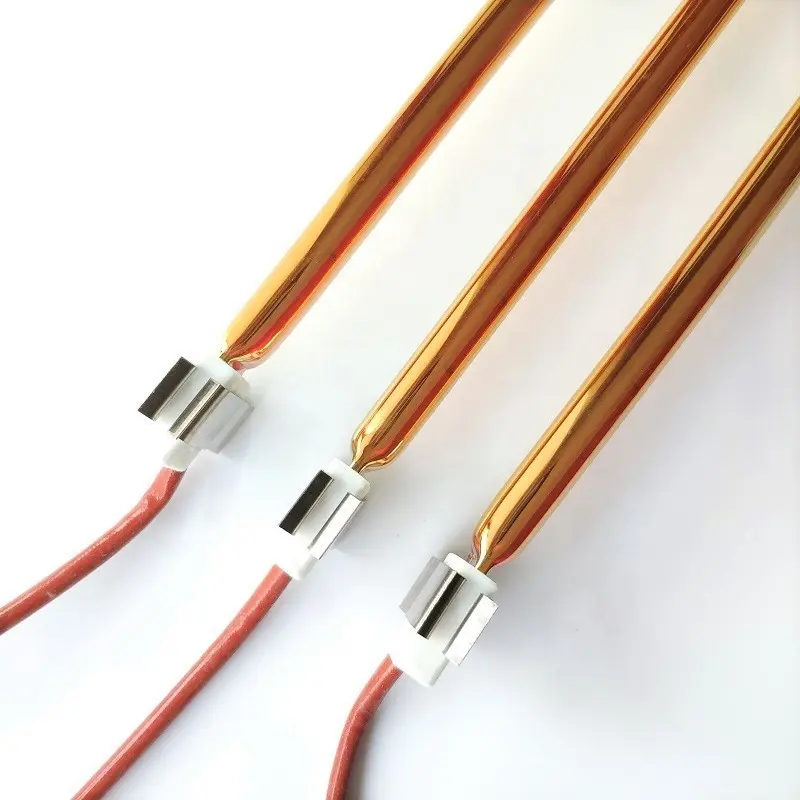

• Hermetic PTFE Seals: Standard ceramic end caps can trap and release dust. Our semiconductor-grade lamps utilize completely sealed, high-temperature PTFE (Teflon) hermetic lead wires. This totally enclosed termination prevents any oxidation of the molybdenum foil seal and ensures zero particulate generation from the electrical connections.

3. Comprehensive Technical Specifications

4. Precision High-Tech Applications

This Wafer heating infrared lamp is the critical thermal engine for the world’s most advanced manufacturing tools:

• Semiconductor Fabrication: Rapid Thermal Processing (RTP), Rapid Thermal Annealing (RTA), and wafer drying in automated wet benches.

• Photovoltaic (Solar) Manufacturing: Soldering and tabber-stringer machines where precise, rapid localized heating connects solar cells without inducing thermal micro-cracks in the silicon.

• Laboratory & Cleanroom: High-vacuum chamber bake-outs and aerospace material testing requiring zero-outgassing components.

• Medical & Optical: Curing optical coatings on lenses and sterilizing medical implants.

5. Frequently Asked Questions (FAQ)

Q: Why is OH (Hydroxyl) content so critical in an RTP heating lamp?

A: At the extreme temperatures required for wafer annealing, standard quartz with high OH content will begin to deform, sag, or even devitrify (turn cloudy), ruining its radiant efficiency. Our High purity quartz heater with OH < 5 ppm maintains perfect optical clarity and structural rigidity even under intense thermal stress.

Q: Can you manufacture twin-tube configurations with JGS1 quartz?

A: Yes. For applications requiring massive power density (such as solar panel laminators), we can extrude the JGS1 high-purity quartz into a fused “Figure-8” twin-tube profile, maintaining cleanroom compatibility while doubling the wattage output per square inch.
