Heat and Cool Band Heater with Cooling Shroud (Total Thermal Control)

In specific plastic extrusion processes—most notably PVC pipe extrusion, profile extrusion, and compounding—the physical friction of the turning screw generates a massive amount of internal shear heat. This is known as an exothermic reaction. When the friction heat exceeds the required melting temperature, standard heaters turn off, but the barrel continues to get hotter. The result is degraded, scorched plastic and ruined production runs.

The Hongtai Heat and cool band heater is the ultimate thermodynamic solution to this industry-wide problem. By integrating our high-performance ceramic heating core with a specialized Extruder cooling shroud, this system provides “Total Thermal Control.” It enables rapid heating during startup, but more importantly, it seamlessly integrates with your blower network to aggressively dissipate excess friction heat during production, maintaining the melt temperature with absolute precision.

1. The Physics of Exothermic Shear Friction

Extrusion engineers know that for highly viscous polymers like rigid PVC or CPVC, mechanical shear does most of the melting.

During machine startup, the Heating and cooling bands supply 100% of the energy required to bring the cold steel barrel up to processing temperature. However, once the screw is feeding material at full RPM, the friction of the plastic being squeezed between the screw flights and the barrel wall generates intense thermal energy.

If this exothermic heat is not removed, the melt temperature skyrockets. The polymer chains begin to break down, the PVC burns, and the die gets blocked. The only way to stop this is forced air cooling.

2. How the Air-Cooled Ceramic System Works

Our Air-cooled ceramic heater assembly is a two-part system designed for continuous, alternating thermal cycles:

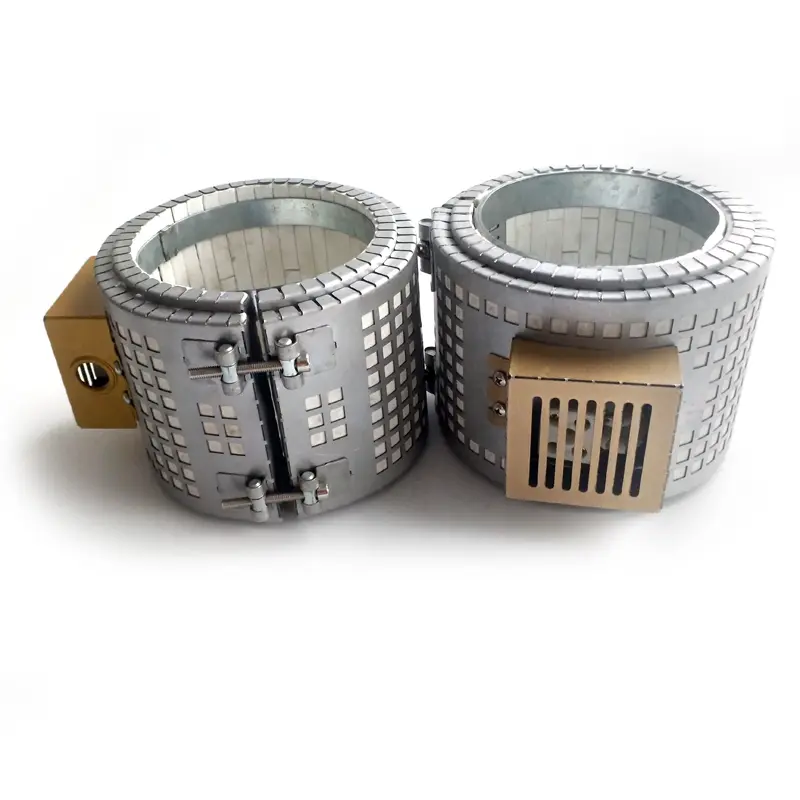

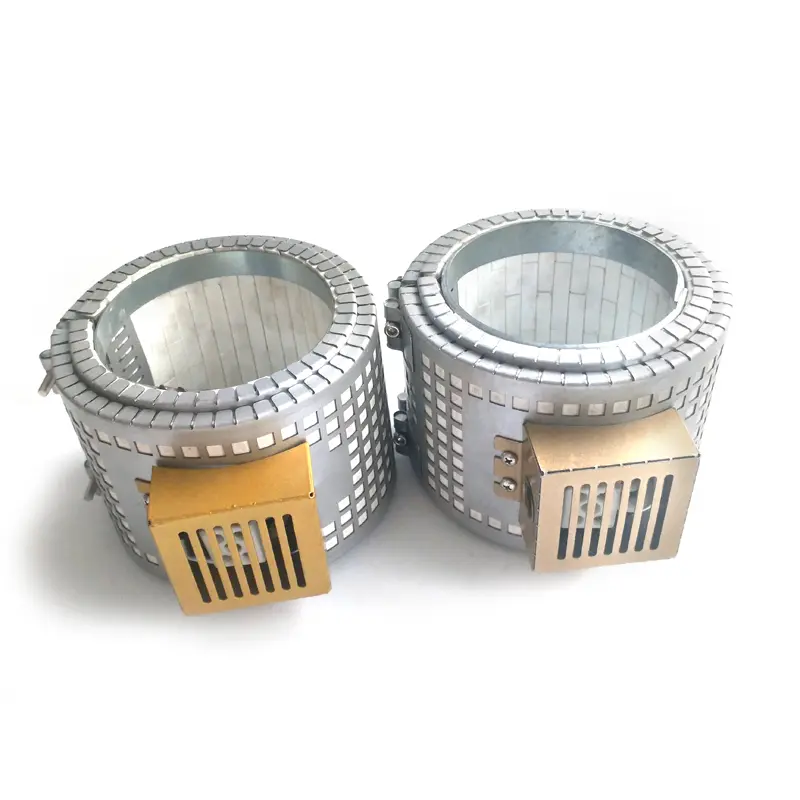

• The Heating Core: A specialized version of our interlocking ceramic tile heater. It is designed with a slightly more open configuration to allow air to pass directly over the ceramic knuckles and the barrel surface.

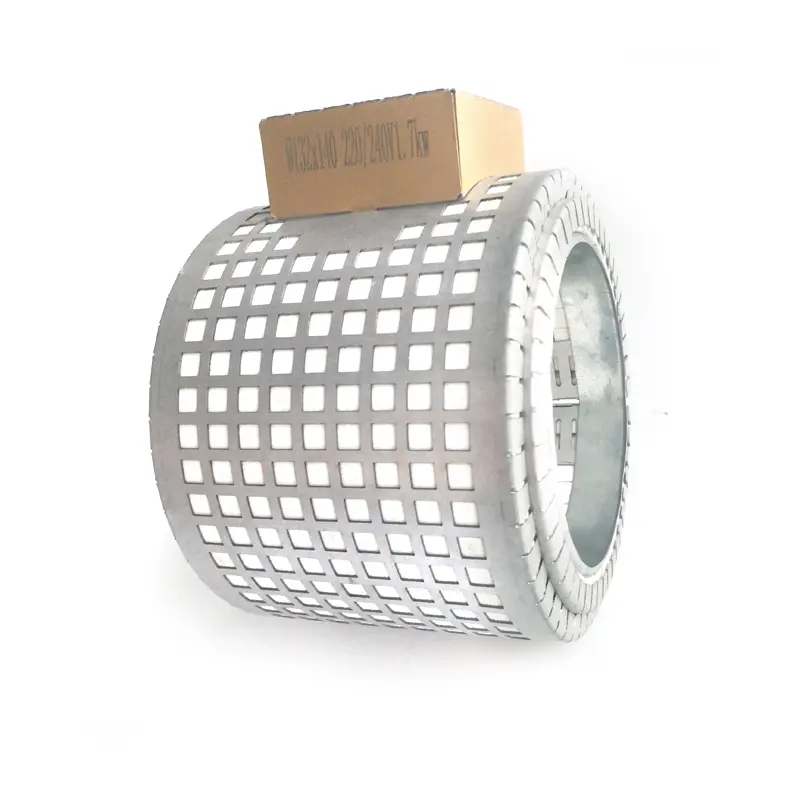

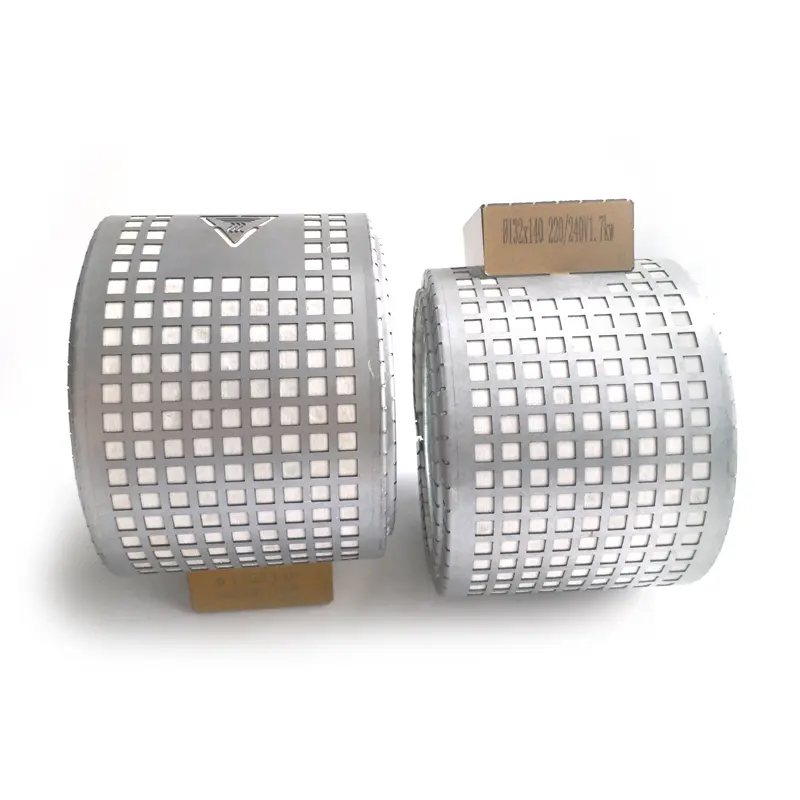

• The Cooling Shroud: We encase the ceramic heater in a heavy-duty, oversized stainless steel housing (the shroud). This housing features an integrated intake port that connects directly to your factory’s blower fan network.

• The Process: When the PID controller detects a temperature overshoot caused by screw friction, it turns off the power to the heater and instantly engages the blower. Ambient air is forced into the shroud, circulates aggressively around the hot ceramic and steel barrel, and exits through precision-cut exhaust perforations in the stainless steel housing. This strips the excess heat away instantly.



3. Precision Temperature Control (±1°C)

The ability to rapidly alternate between active heating and forced-air cooling gives the extrusion operator unprecedented control over the melt viscosity. By utilizing a finely tuned PID control loop, this Heat and cool band heater system can maintain barrel temperatures within ±1°C of the setpoint. This is absolutely critical for profile extrusion, where even a slight fluctuation in viscosity alters the wall thickness of the extruded window frame or pipe.

4. Technical Specifications & Integration

We manufacture these shrouded heating systems to match the exact airflow requirements of your extrusion line.

5. Target B2B Industry Applications

This specialized Heating and cooling bands setup is the standard equipment for:

• PVC Pipe & Profile Extrusion: Managing the narrow thermal degradation window of rigid and flexible PVC.

• Twin-Screw Compounding: Controlling massive exothermic energy generated when blending polymers with heavy fillers or glass fibers.

• Wire & Cable Jacketing: Ensuring consistent melt flow for high-speed wire coating.

• Rubber Extrusion: Preventing premature vulcanization (curing) inside the barrel during processing.

6. Frequently Asked Questions (FAQ)

Q: Do you supply the blower fans as well?

A: This product page is for the Air-cooled ceramic heater and the custom stainless steel shroud assembly. We typically manufacture the shroud intake port to mate perfectly with the centrifugal blowers already present on your existing extruder frame (e.g., Cincinnati Milacron, KraussMaffei, or Davis-Standard). If you require complete retrofits including blowers, please contact our engineering team.

Q: Can I retrofit this onto an extruder that currently only has standard heaters?

A: Yes, this is a common upgrade for older machines that are being repurposed to run high-friction materials. You will need to ensure there is enough physical radial clearance around the barrel to accommodate the oversized Extruder cooling shroud (which is significantly larger than a bare heater) and you will need to wire blower contactors into your machine’s control panel.
