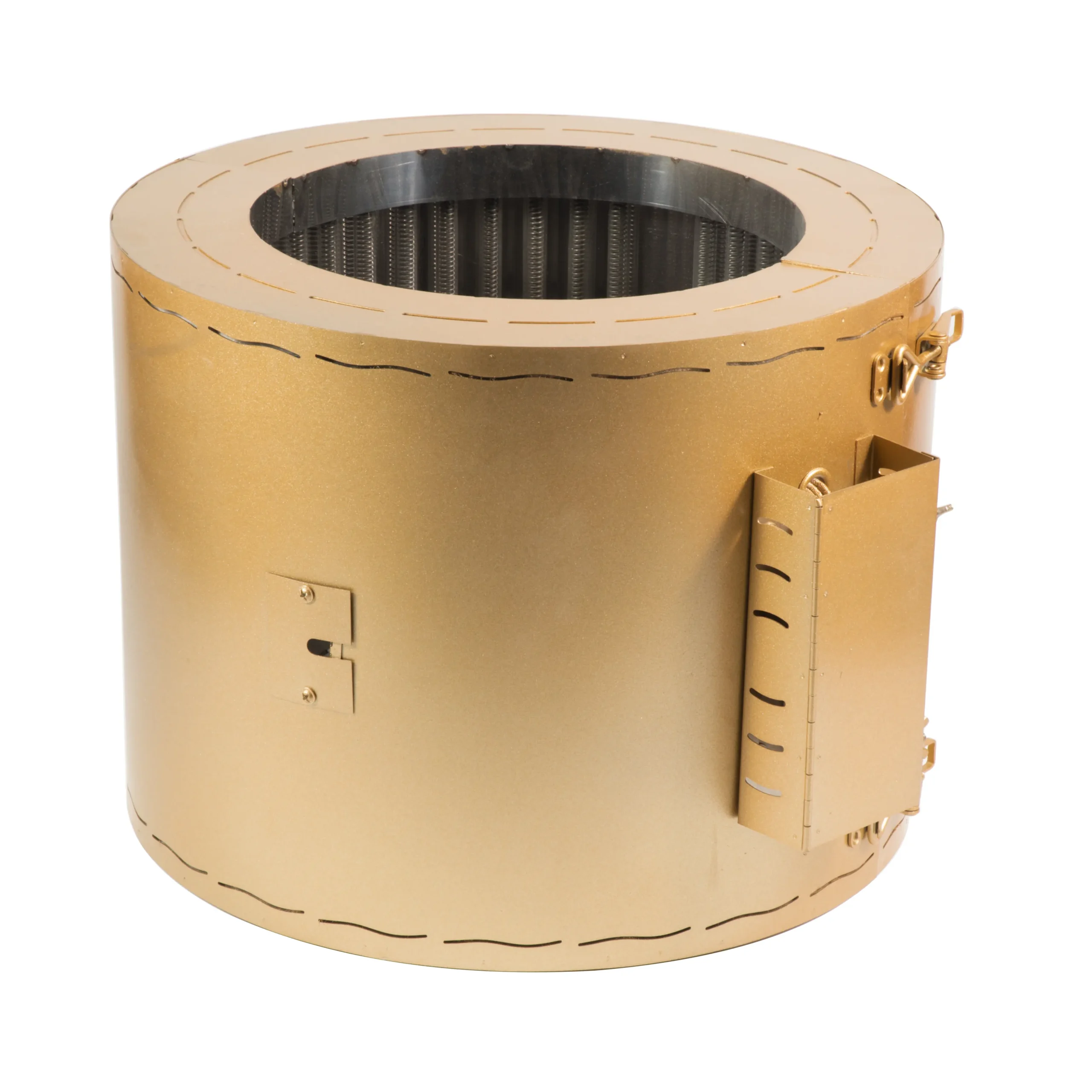

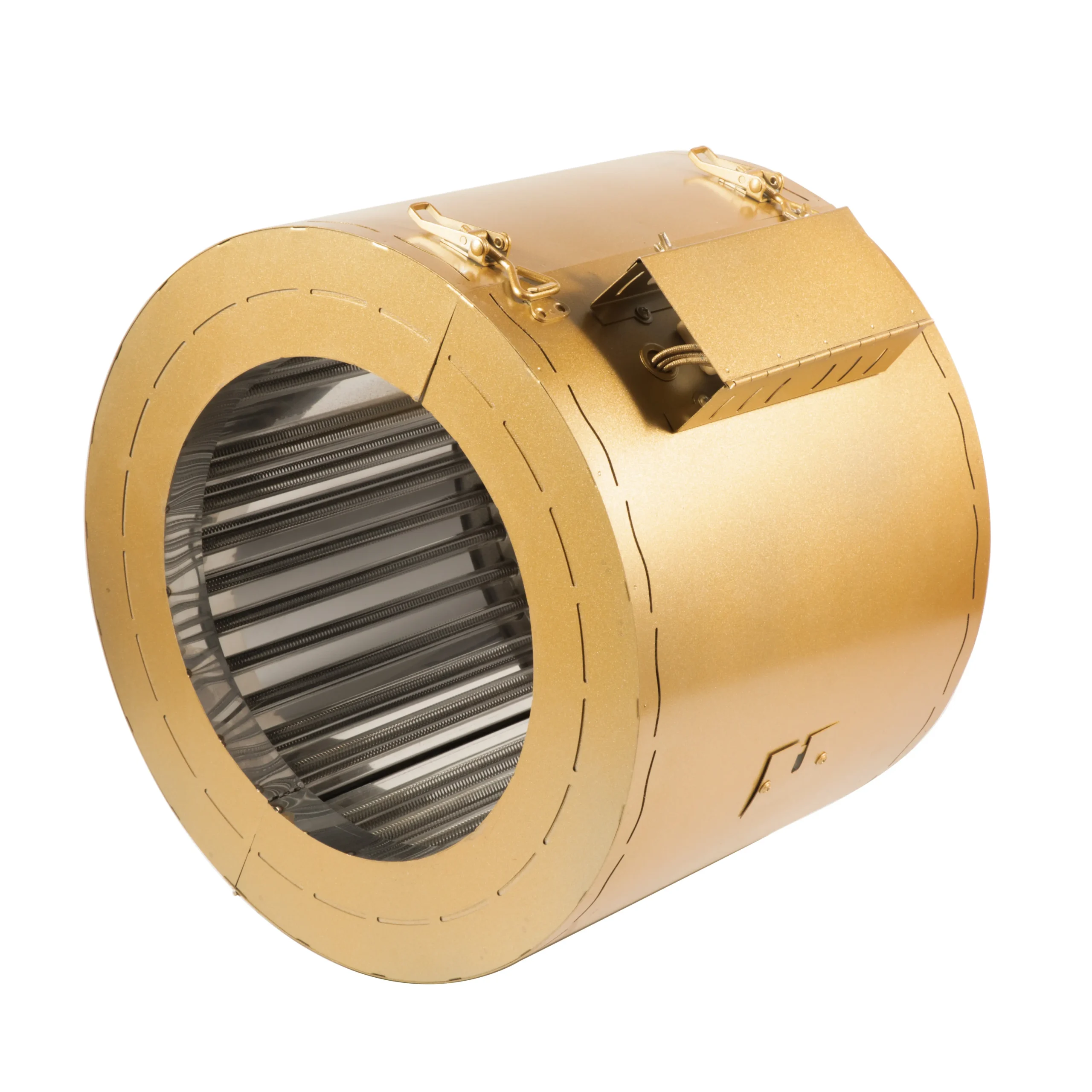

High-Response Nano Heater (Fast Cycle Time for Blow Molding)
In the high-frequency cycle packaging industry, thermal lag is the enemy of quality control. When dealing with rapid blow molding machines, traditional mica or cast aluminum heaters simply cannot react fast enough to the fluctuating thermal demands of the process. The Hongtai Fast response band heater is engineered to completely eradicate this bottleneck.
Designed specifically for production managers and process engineers in the blow molding sector, this high-performance Blow molding heater leverages the extreme low thermal mass of nano-infrared heating tubes combined with aerospace-grade aerogel insulation. The result is “Zero Thermal Lag.” It responds to PID controller commands instantaneously, providing a 30% faster heating rate than traditional bands, and completely eliminating the temperature overshoot that causes defective, uneven plastic parts.
1. The Danger of Thermal Lag in Blow Molding
To understand why this High cycle time heating element is revolutionary, one must understand the failure point of traditional heaters in blow molding.
A standard heater consists of a heavy ceramic or metal mass. When your PID controller turns the power off, that heavy mass stays hot, continuing to dump unwanted heat into the extruder barrel (thermal overshoot). When the controller turns the power on, it takes several seconds for that mass to heat back up (thermal lag).
In high-speed blow molding, this sluggish reaction causes the melt viscosity of the parison to fluctuate. If the plastic is too hot, it sags prematurely, resulting in a blown bottle with walls that are too thin at the top and too thick at the bottom.
2. “Zero Thermal Lag” Technology
Our Fast response band heater utilizes an entirely different thermodynamic mechanism:
-

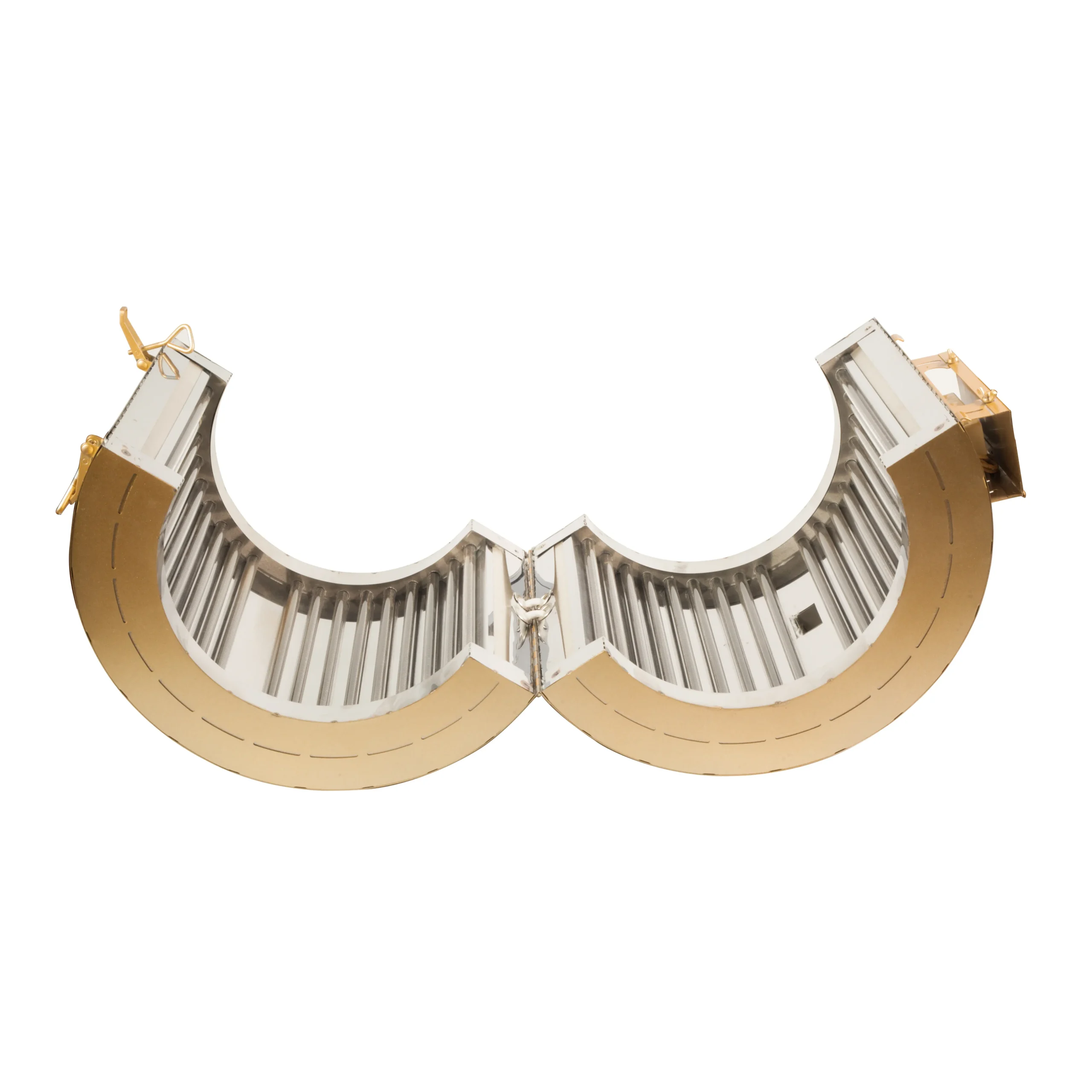

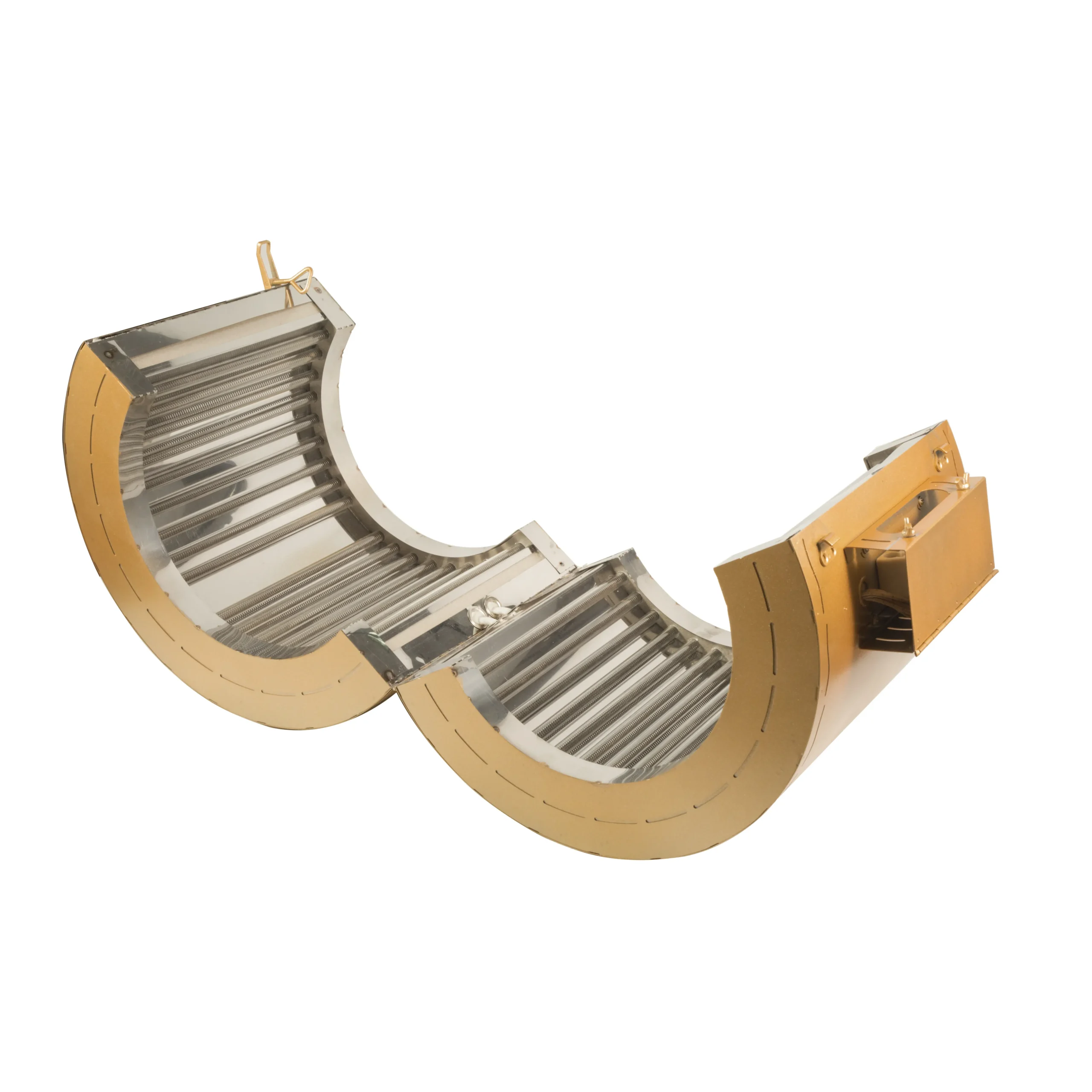

Nano-Infrared Heating Tubes: Instead of heating a heavy metal block, we use ultra-lightweight quartz tubes coated with a proprietary nano-infrared emitting layer. These tubes possess virtually zero thermal mass. When energized, they reach full radiant output instantly. When de-energized, heat emission stops within fractions of a second.
-
Instant PID Interfacing: This extreme agility allows your solid-state relays (SSR) and PID controllers to pulse the heat with absolute micro-precision, locking the melt temperature to within ±0.5°C of your setpoint, regardless of how fast your machine is cycling.
-
Aerospace-Grade Aerogel: To ensure that 100% of this rapid-fire thermal energy enters the barrel and isn’t lost to the factory air, the outer shell of the Blow molding heater is lined with Aerogel—the lowest density solid thermal insulator known to science.
3. Comprehensive Technical Specifications
Built for the rigorous, high-vibration environment of modern packaging plants, this heater guarantees precision.
| Parameter | Industrial Specification | Notes |
| Product Category | Fast response band heater | Low Thermal Mass Design |
| Heat Response Speed | 30% Faster than Mica/Ceramic | Instantaneous thermal transfer |
| Thermal Lag | Zero (No Overshoot) | Prevents polymer degradation |
| Internal Emitters | Nano-Infrared Heating Tubes | Highly efficient radiant heat |
| Insulation Core | Aerospace-Grade Aerogel | Ultimate heat retention |
| Outer Casing | Heavy-Duty Stainless Steel | Resists clamp vibration |
| Max Operating Temp | 400°C (752°F) | Ideal for PET, HDPE, PP |
| Controller Compatibility | Highly optimized for SSR / PID | Maximizes controller capability |
| Power Density | Custom engineered to cycle time | Prevents under-heating at high RPM |
4. Target B2B Industry Applications
This specialized High cycle time heating element is the ultimate upgrade for speed-dependent extrusion:
-
Blow Molding Machines (BMM): Eliminates parison sag and uneven preform wall thickness caused by temperature drift.
-
Injection Blow Molding (IBM): Precise thermal management of the manifold and injection nozzles during high-speed cosmetic container manufacturing.
-
Thin-Wall Packaging: Ultra-fast injection molding of food containers where melt viscosity must remain absolutely static to fill microscopic mold cavities.
-
Medical Tubing Extrusion: Fast-response control to maintain the exact outer diameter (OD) and inner diameter (ID) of critical catheters.
5. Frequently Asked Questions (FAQ)
Q: Can this heater handle the vibration of a high-speed blow molder?
A: Yes. While the internal nano-infrared tubes are highly sensitive thermal instruments, they are securely shock-mounted within the heavy-duty stainless steel casing and cushioned by the dense Aerogel insulation blanket. This Blow molding heater is designed to withstand continuous industrial vibration without filament breakage.
Q: Will it save energy like the standard Nano Band Heater?
A: Absolutely. Because it utilizes the same radiant heating technology and Aerogel insulation structure as our standard nano series, this Fast response band heater also delivers significant electricity savings (typically 30%+) while providing the instantaneous control required for high-frequency cycling.
