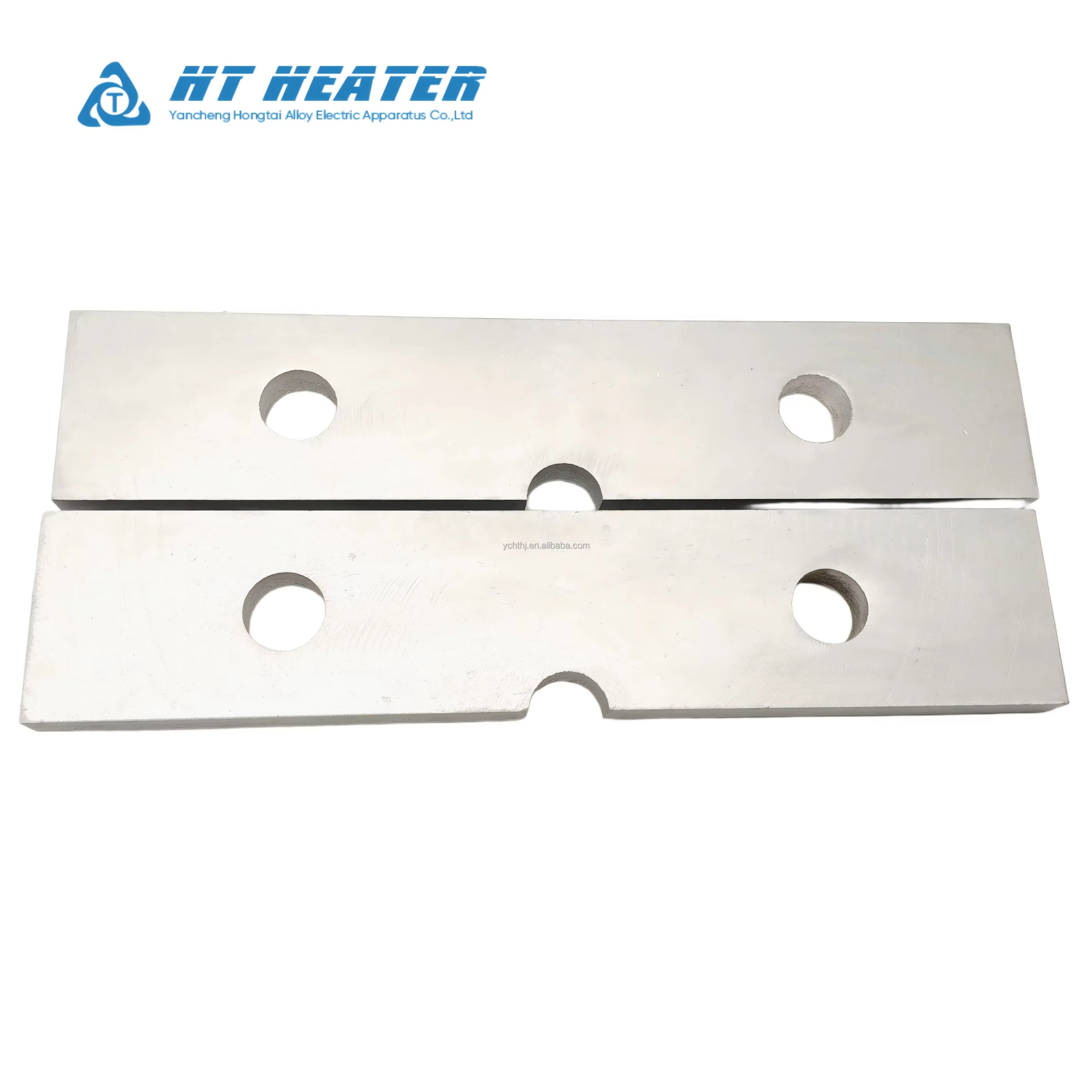

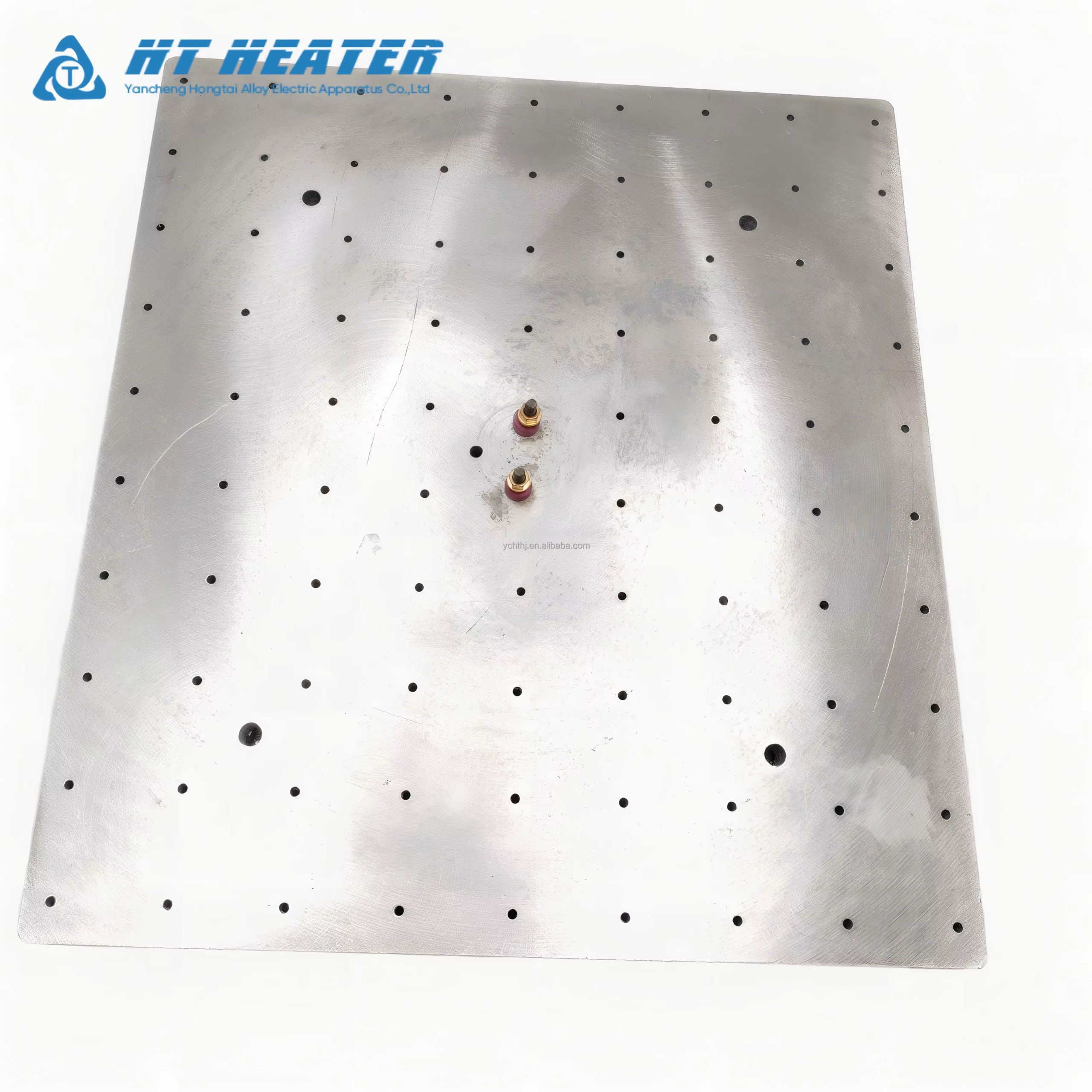

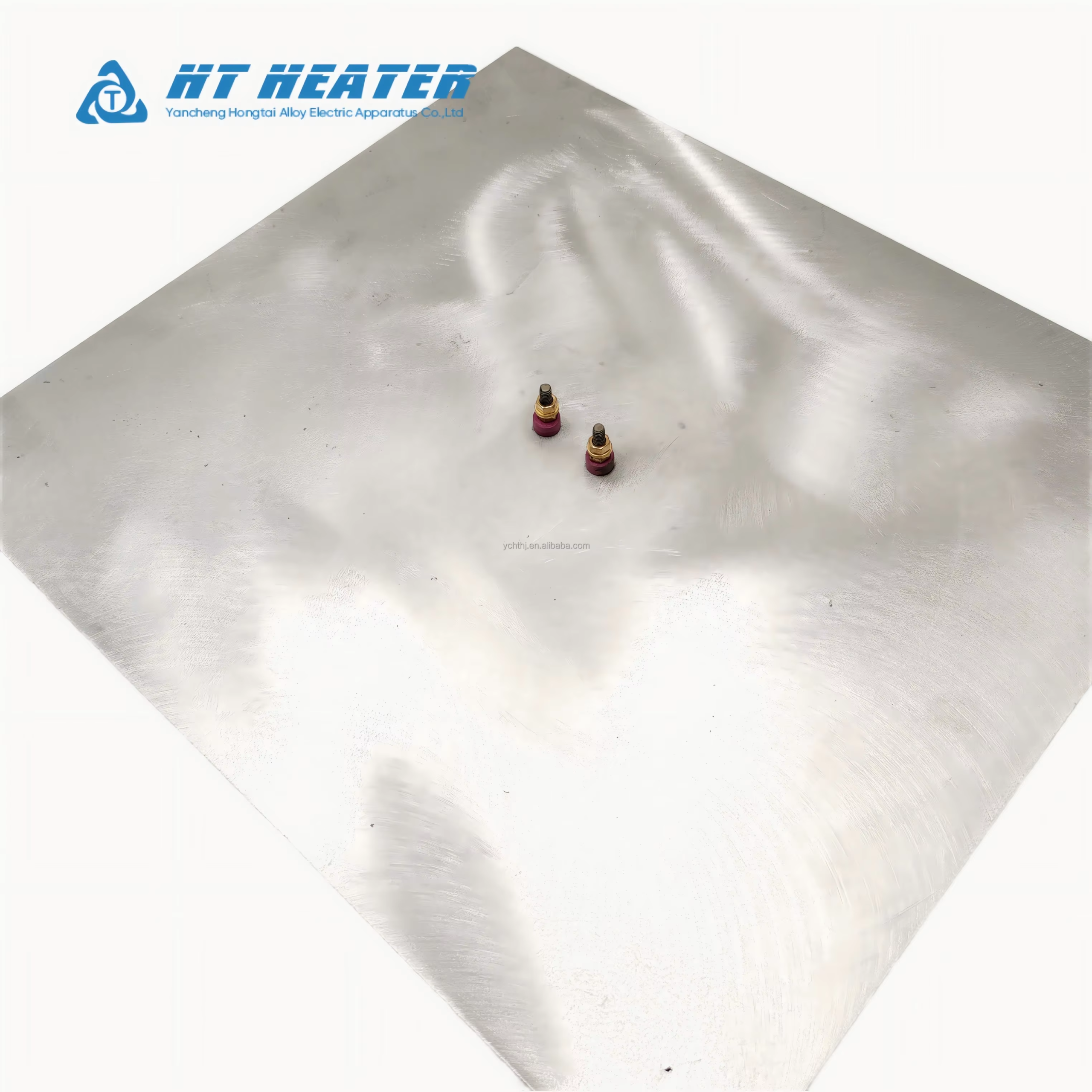

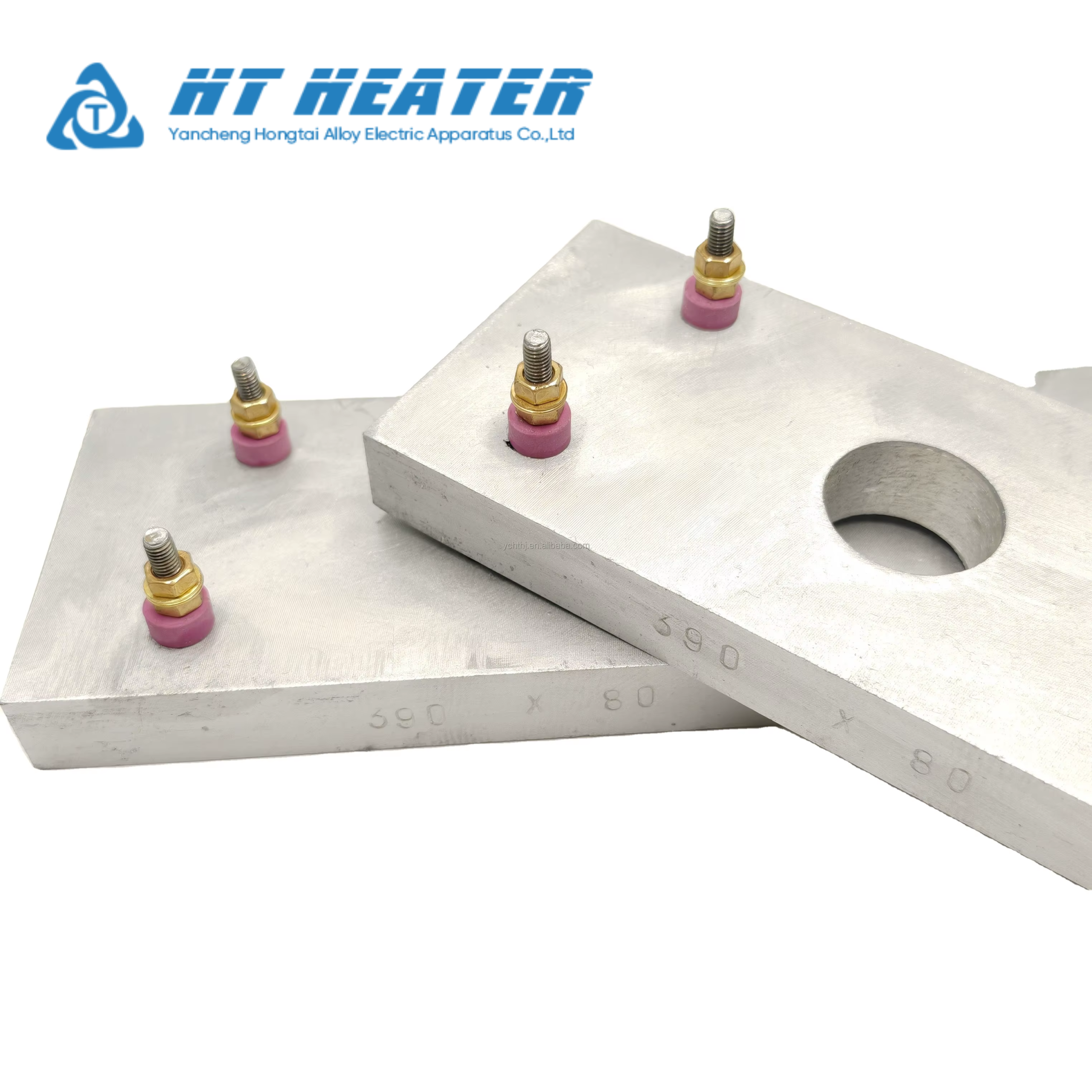

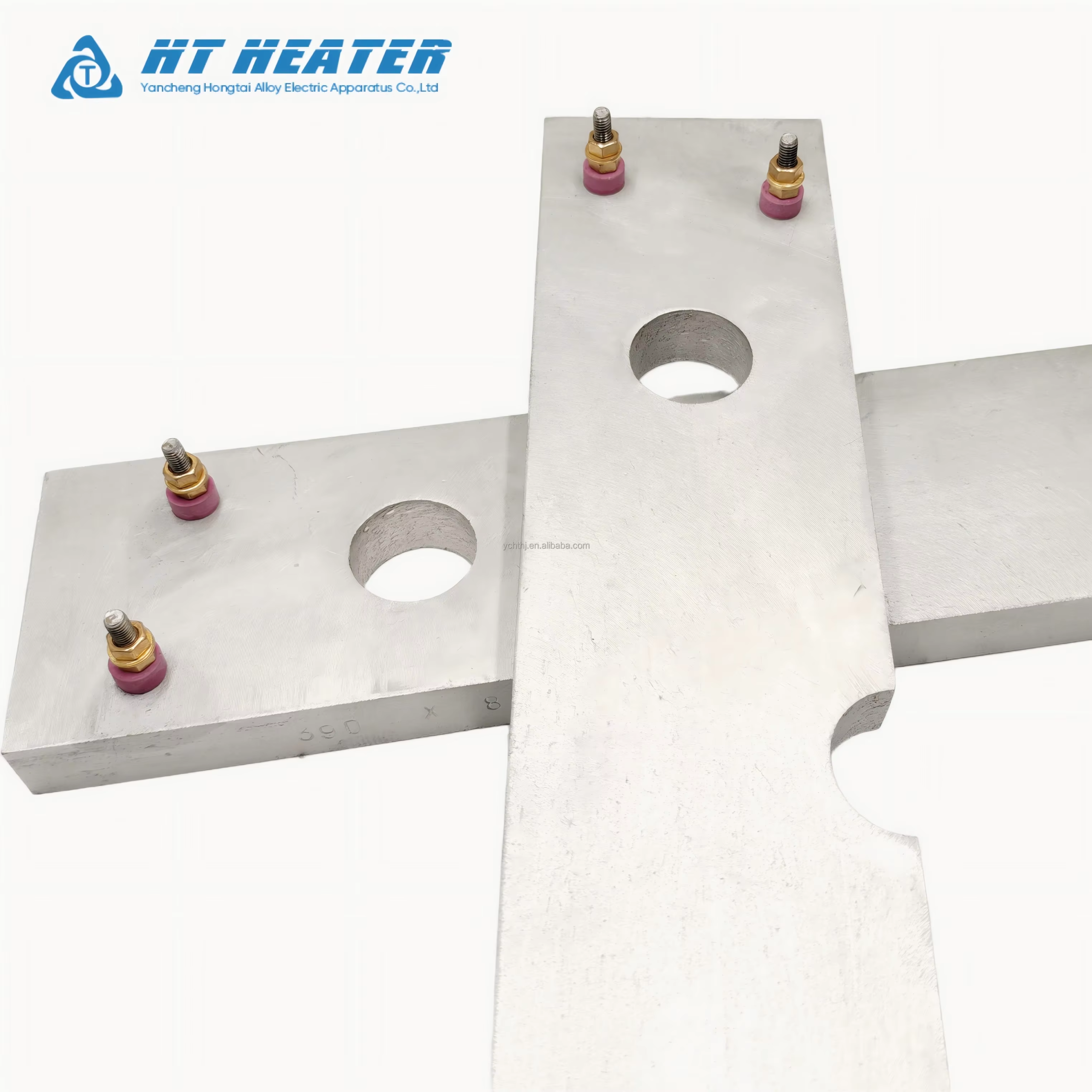

The Extruder Cast Aluminum Plate Heater Core Value:

The Extruder Cast Aluminum Plate Heater is engineered for high-efficiency, uniform thermal transfer in heavy-duty plastic extrusion, blow molding, and die-heating applications. By casting high-density tubular heating elements directly into a precision-machined aluminum alloy body, this heater eliminates air gaps and guarantees maximum heat conduction across complex barrel or flat die surfaces. Operating at working temperatures up to 350°C (662°F), the superior thermal conductivity of cast aluminum ensures rapid ramp-up times and precise temperature control, preventing plastic melt degradation and boosting extrusion throughput. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS for continuous, maintenance-free industrial operation.

• ✓Exceptional Thermal Uniformity: Embedded element design provides 360° even heat distribution without hot spots.

• ✓Precision CNC Machined: Perfect surface contact fit for flat or semi-circular extruder barrels and dies.

• ✓ Superior Thermal Conductivity: Cast aluminum alloy delivers thermal conductivity up to 160 W/mK for quick response.

• ✓ Optional Dual-Heating & Cooling: Integrated liquid or air cooling channels available for tight thermal tolerance management.

• ✓ Heavy-Duty Construction: Resistant to mechanical shock, vibration, and thermal cycling stress.

• ✓ Energy Efficient: Contoured fit minimizes radiation heat loss and optimizes power consumption.

• ✓ Reliable Quality: 30+ YEARS MANUFACTURING EXPERIENCE guarantees long service life.

• ✓ Quality Assured: UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including high-voltage dielectric tests.

• ✓ Global Compliance: CE, LVD, RoHS, and ISO 9001 certified.

Technical Specifications & Performance Data

Industrial Applications & Solutions

1. Plastic Extrusion Lines (Pipes, Profiles, Sheets): Mounts directly onto extruder barrels and adaptors. Ensures stable melt viscosity and eliminates flow marks caused by temperature fluctuations.

2. Blown Film Machinery & Die Heads: Provides uniform circumferential heat around rotating dies, ensuring consistent film gauge thickness and optical clarity.

3. Plastic Recycling Granulators & Pelletizers: Handles heavy mechanical vibration and continuous operation under demanding contaminated plastic melt conditions.

4. Hot Stamping & Heat Sealing Platens: Used in automatic packaging machinery requiring flat plate heating with rapid recovery rates.

5. Rubber Vulcanizing & Molding Presses: Heavy cast aluminum construction withstands repeated mechanical clamping pressure without structural distortion.

6. Chemical & Pharmaceutical Processing: Uniform tank or flat-surface vessel heating where clean, reliable, non-contaminating electric heat is required.

HT-Heater vs Standard Market Heaters

Installation & Integration Guidelines

• • Surface Preparation & Contact: Clean the extruder barrel/plate interface thoroughly prior to mounting. Remove all debris, carbon deposits, or old thermal paste to ensure direct metal-to-metal contact.

  • Clamping & Torque Uniformity: Tighten mounting bolts evenly in a cross pattern. Re-torque all clamping bolts after the first warm-up cycle at operating temperature to compensate for initial thermal expansion.

  • Thermal Paste Usage: Apply a thin layer of high-temperature thermal conductive compound (>300°C rated) to bridge microscopic surface irregularities and maximize heat transfer efficiency.

  • Wiring & Terminal Protection: Use high-temperature nickel-plated copper leads with fiberglass silicone sleeving. Ensure the junction box cover is securely sealed to protect connections from melted plastic drips or corrosive fumes.

  • Temperature Sensor Placement: Install thermocouples deep into the provided thermocouple well to ensure accurate closed-loop PID control and prevent over-temperature overshoot.

Customer Success Stories

Case 1: Pipe Extrusion Manufacturer (Germany)

• Application: HDPE Pipe Extrusion Line Barrel Heating.

• Challenge: Standard band heaters suffered frequent burnout from localized overheating and poor contact fit.

• Solution: Custom CNC-machined Cast Aluminum Half-Shell Plate Heaters with built-in cooling channels.

• Results: LINE DOWN TIME REDUCED BY 65%. “The surface contact precision is outstanding. HT-Heater UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS, and it shows in our uninterrupted production runs.”

Case 2:

Flexible Packaging Film Supplier (Vietnam)

• Application: 3-Layer Blown Film Extrusion Die Head.

• Challenge: Gauge thickness variations caused by hot spots around the outer die ring.

• Solution: Precision-balanced Cast Aluminum Segmented Ring Plate Heaters.

• Results: FILM THICKNESS VARIATION DROPPED TO <2%. “30+ YEARS MANUFACTURING EXPERIENCE shows in their thermal engineering. Perfect heat distribution across the entire die circumference.”

Case 3:

PET Recycling Granulation Plant (Mexico)

• Application: Continuous Plastic Pelletizing Extruder.

• Challenge: High vibration and harsh environmental fumes caused short circuits in traditional ceramic band heaters.

• Solution: Heavy-duty Cast Aluminum Heaters with IP65 Sealed Terminal Enclosures.

• Results: HEATER SERVICE LIFE EXTENDED BY 3X. “These cast heaters withstand aggressive factory conditions effortlessly. Outstanding quality and support.”

Pricing & Procurement Options

• • Standard Production: MOQ 5 pieces per batch. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring batch-to-batch structural repeatability. Tiered discounts available for bulk OEM orders (20+ units).

  • Lead Times: Standard Castings: 10-12 production days. Custom Mold Design & CNC Machining: 12-15 days. Express sample sampling available upon request.

  • Global Logistics: Worldwide delivery via DHL, FedEx, UPS, air freight, or sea cargo based on weight and urgency. Every export shipment is securely packaged in reinforced wooden cases.

  • Sample Orders: Sample units manufactured upon drawing approval. All sample units UNDERGO MULTIPLE RIGOROUS QUALITY CHECKS including insulation and earth leakage testing prior to dispatch.

全球认证与合规

• CE Marking
  Fully compliant with European health, safety, and environmental standards.。
• LVD Compliance
  Low Voltage Directive tested for industrial electrical safety.
• RoHS Compliant
  Free from hazardous substances and environmentally safe.
• ISO 9001
  Certified quality management system across all casting, machining, and assembly stages.

Quality Documentation: Every batch includes a Certificate of Conformity (COC), insulation resistance test results, and dimensional inspection sheets.

Comprehensive After-Sales Support

• • Warranty: 1-Year Comprehensive Standard Warranty against material or manufacturing defects.

  • Technical Support: Dedicated application engineers available for custom casting mold design, thermal load analysis, and power calculation support.

  • Global Service Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE providing prompt technical feedback within 2 hours.

Ready for Efficient Extruder Heating?

• Next Steps:

  • 📧 Request Custom Quote – Send your barrel/die dimensions, wattage, and drawing requirements.

  • 🔧 Free Engineering Review – Optimize thermal distribution and clamping design with our engineering team.

  • 📦 Order Test Unit – Evaluate fitment and performance on your extrusion machinery.

  • 📞 Contact Heating Experts – Rapid response within 2 hours.

  。
