Core Value

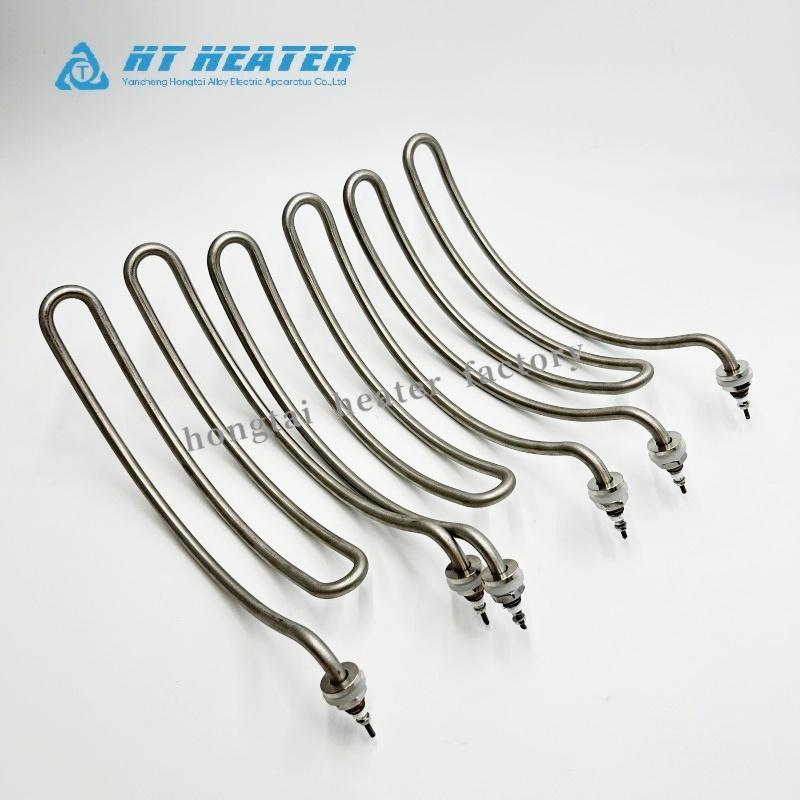

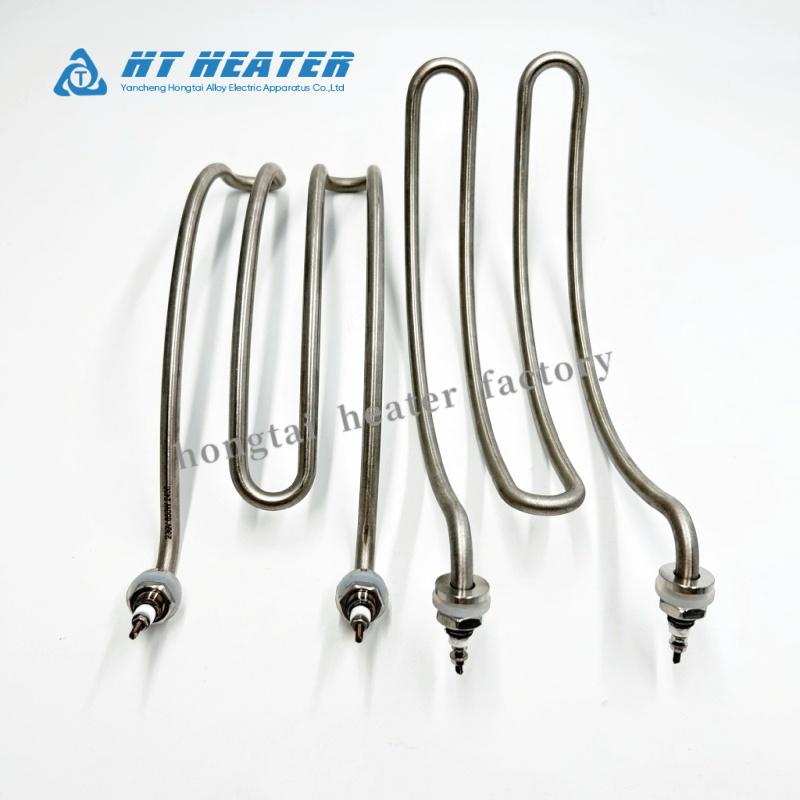

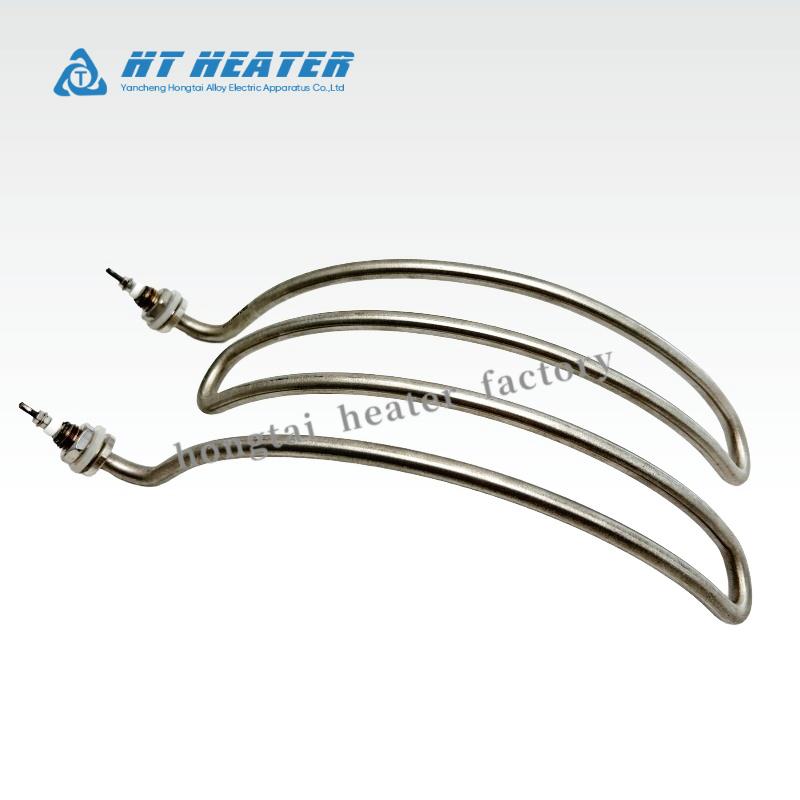

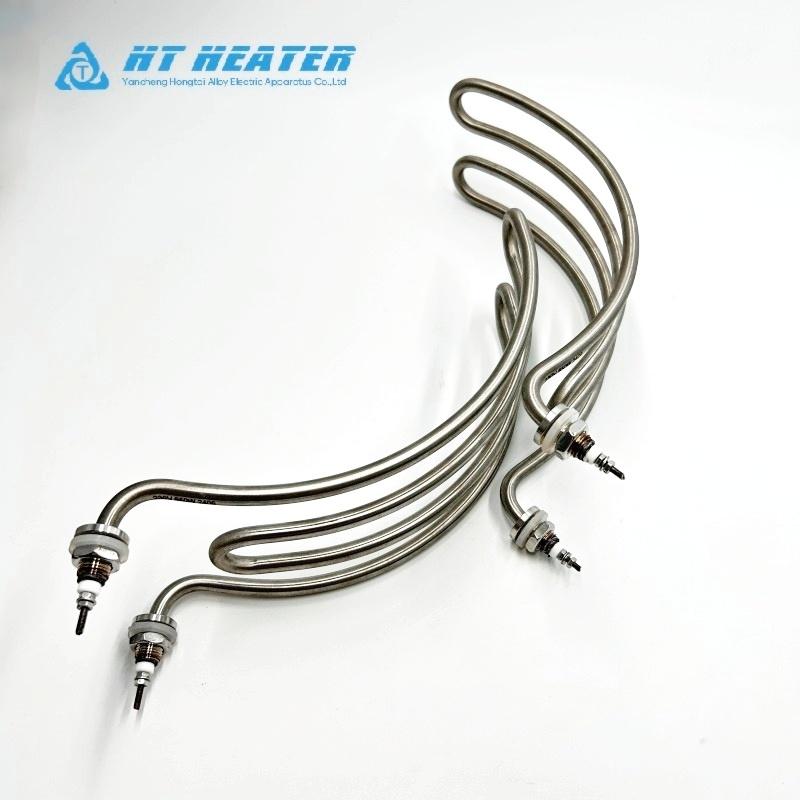

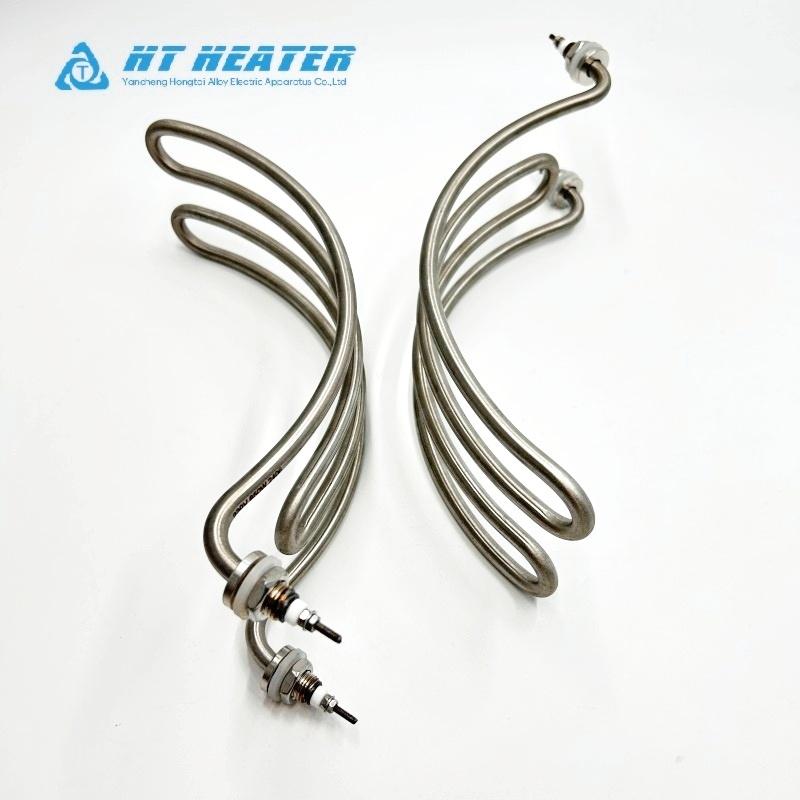

The Electric BBQ Grill M Shaped Tubular Heating Element is high-performance electric heating equipment engineered for intense, uniform heat distribution across barbecue grates and griddle surfaces. The double-folded “M” shape maximizes the linear heater length within a compact rectangular cooking area. This geometry ensures edge-to-edge heat coverage, eliminating cold spots at the corners of the grill rack and providing consistent searing temperatures for meats and vegetables.
Constructed using premium Ni80Cr20 nickel-chromium resistance wire encapsulated within high-purity, micro-compacted Magnesium Oxide (MgO) powder, these elements achieve rapid temperature rise and high thermal shock resistance. The outer sheath is available in 304 Stainless Steel, 316L Stainless Steel, or heat-resistant Incoloy 800/840, providing exceptional resistance to oxidation, fat/grease splatter, and high surface temperatures up to 800°C. Optimized for demanding outdoor and commercial kitchen environments, every element undergoes strict quality testing to ensure zero hot-spot degradation and long operational lifespan under repeated thermal expansion and cooling cycles.
- ✓ Optimized M-Geometry: Distributes heat evenly across the entire grilling area, ensuring balanced searing and preventing raw/undercooked food zones.
- ✓ High Heat Density & Rapid Recovery: Quickly recovers grilling surface temperature when cold food is placed on the rack or when the lid is lifted.
- ✓ Corrosion & Grease Resistance: High-grade 304/316L SS or Incoloy sheathing withstands corrosive meat marinades, salt, oil drippings, and moisture.
- ✓ Moisture-Proof Terminal Sealing: High-temperature ceramic and silicone seals prevent grease vapor and moisture ingress, preventing electrical tripping.
- ✓ Custom Mounting Brackets & Deflectors: Factory-welded brackets, reflector plate tabs, and grounding studs tailored to fit OEM grill housings.
- ✓ Durable Mechanical Bending: CNC multi-axis precision bending avoids micro-fractures in the sheath wall, preserving dielectric strength.
- ✓ Easier Cleaning & Maintenance: Smooth sheath surface allows grease burn-off cycles and easy maintenance.
- ✓ Quality Assurance: Built to international safety standards, with 100% testing for cold/hot insulation resistance, high-voltage withstand (1500V/1min), and bending tolerances.
Technical Specifications & Performance Data
| Parameter | Standard Value | Customizable Range | Notes |
| Operating Voltage | 110V / 120V / 220V / 230V | 100V to 480V | Single-phase standard; multi-circuit option |
| Power Rating | 1500W / 1800W / 2200W | 800W to 3500W | Optimized watt-density for quick searing |
| Sheath Material | 304 Stainless Steel | 316L SS, Incoloy 800 / 840 | Incoloy recommended for high-temp commercial grills |
| Tube Diameter (Ø) | Ø 6.5 mm / Ø 8.0 mm | Ø 6.25 mm to Ø 10.0 mm | Ø 6.5mm / Ø 8.0mm standard for fast thermal response |
| Element Width (W) | 220 mm / 280 mm | 150 mm to 450 mm | Tailored to match grill grate width |
| Element Length (L) | 350 mm / 420 mm | 200 mm to 600 mm | Tailored to match grill chamber length |
| Cold Zone Length | 60 mm / 80 mm | 50 mm to 150 mm | Prevents thermal damage to wiring terminal enclosure |
| Max Sheath Temp | 700°C (1292°F) for 304 SS | Up to 800°C (1472°F) for Incoloy | Capable of high-radiation infrared-style searing |
| Insulation Resistance | $\ge 500\text{ M}\Omega$ (Cold) | $\ge 10\text{ M}\Omega$ (Hot / Moist) | High-purity compacted MgO core |
| Terminal Types | M4 / M5 Threaded Studs | 6.3mm Faston, Ceramic Blocks | Nickel-plated brass or stainless steel hardware |
Industrial Applications & Solutions
-
Outdoor Portable & Stand-Up Electric BBQ Grills: Primary heat source for residential backyard and balcony electric grills.
-
Commercial Teppanyaki & Electric Griddles: Beneath-plate surface heating for high-volume diner and restaurant griddles.
-
Pellet & Electric Meat Smokers: Auxilliary searing heaters and wood-chip ignition elements.
-
Panini Presses & Contact Sandwich Grills: Heavy-duty top and bottom cast-iron plate heating.
-
Foodservice Countertop Warmers: Under-pan heating for commercial buffet stations and warming trays.
M-Shaped Elements vs Standard Market Heating Options
| Feature | Our M-Shaped Element | Generic U-Shaped Element | Your Advantage |
| Grate Heat Coverage | 85%–95% Surface Area | 40%–50% Surface Area | Eliminates outer cold zones; cook more food simultaneously. |
| Bending Precision | CNC Automated Precision Bends | Manual Bending | Exact fitment into grill deflectors without assembly stress. |
| Sheath Wall Uniformity | Hydro-swaged High-Density MgO | Low-Density Vibration Fill | Prevents localized hotspots and premature wire burnout. |
| Terminal Insulation | High-Temp Ceramic & Silicone Seal | Basic Resin / Unsealed | Resists oil and moisture ingress during outdoor cleaning or rain. |
| Thermal Deformation | Stress-relieved Bright Annealed | Raw Un-annealed Tubing | Tube retains shape without twisting or sagging when red-hot. |
Installation & Handling Guidelines
-
Power & Electrical Safety: Always ensure power is turned off before servicing. Verify supply voltage matches the rating stamped on the element cold leg.
-
Deflector & Drip Tray Clearance: Maintain at least 15–20mm clearance between the element sheath and bottom grease tray to allow proper air convection and prevent oil pooling ignition.
-
Terminal Enclosure Protection: Ensure cold legs extend fully through the chassis reflector plate so electrical terminals remain inside the cool wiring compartment.
-
Initial Burn-Off Cycle: Before first cooking use, run the grill on high heat for 15–20 minutes in a ventilated area to burn off trace manufacturing oils.
-
Care & Cleaning: Do not strike the heating element with sharp metal scrapers or submerge hot elements in cold water. Clean food debris with a stiff nylon or brass brush after the element cools down.
Customer Success Stories
Case 1:
Outdoor Appliance Brand (United States)
-
Application: High-end balcony electric BBQ grill (120V 1800W).
-
Challenge: Standard single-loop elements took over 20 minutes to reach searing temperatures (260°C) and had cold corners.
-
Solution: Custom CNC M-Shaped 304 SS Tubular Element with integrated stainless reflector clips and Ø 8.0mm tube diameter.
-
Results: PRE-HEAT TIME CUT BY 40%. “Pre-heat time dropped to under 12 minutes, and edge-to-edge heat uniformity allowed us to market the grill with true 260°C steak-searing capability.”
Case 2:
Commercial Kitchen Equipment Manufacturer (Australia)
-
Application: Commercial countertop electric griddle for breakfast catering.
-
Challenge: Grease penetration during daily washing caused frequent ground-fault tripping in standard heating elements.
-
Solution: Incoloy 800 M-Shaped Elements featuring high-temperature ceramic insulators and dual-component silicone moisture barriers.
-
Results: FIELD FAULTS DROPPED BY 98%. “Moisture resistance and durability under heavy daily use improved dramatically. Replacement rates under warranty are now negligible.”
Pricing & Procurement Options
-
Standard Catalog Production: Fast-turnaround OEM manufacturing for standard grill dimensions (e.g., 350mm x 250mm, 1500W/2200W).
-
Custom OEM Orders: Full customization of wattage distribution, bending geometry, cold zone lengths, and welded mounting tabs based on CAD drawings or physical samples.
-
Production Lead Times: Samples: 5–7 days. Production orders: 12–18 days upon drawing approval.
-
Export Packaging: Wrapped in individual protective sleeves and bundled in rigid 5-ply cartons with molded foam inserts to ensure zero terminal bending during international shipping.
Global Certifications & Compliance
- CE Marking
Fully compliant with European safety and environmental standards. - LVD Compliance
Low Voltage Directive tested for continuous thermal load safety. - RoHS Compliant
Constructed using environmentally safe, lead-controlled brass alloys. - ISO 9001
Certified quality control covering CNC machining, coil pressing, and electrical testing.
Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.
Comprehensive After-Sales Support
-
- Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.
-
Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.
-
Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
