Core Value

The Custom Straight U W Shape Sic Heating Rods offer ultimate design flexibility for high-temperature industrial electric furnaces, ceramic kilns, glass lehrs, and powder metallurgy equipment. Manufactured from premium high-density recrystallized Green Silicon Carbide (a-SiC) grains via advanced reaction sintering, these versatile elements form an impermeable, self-healing Silicon Dioxide (SiO2) Glass Layer when operating above 900°C. This robust protective shield arrests internal oxidation, enabling stable, continuous thermal performance at temperatures up to 1400°C (2552°F).

By offering a complete portfolio of geometries—from standard Straight Rods (ED/DB) for dual-wall penetration, to U-Shape (2-shank) and W-Shape (4-shank) designs for single-ended roof or sidewall wiring—these heating elements can be tailored to maximize thermal uniformity while minimizing electrical connection complexity. Engineered with low-resistance cold-end terminals seamlessly welded to high-radiance hot zones, they ensure thermal energy is concentrated in the chamber, not lost in the furnace walls. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS to guarantee precise electrical resistance calibration, bridge joint integrity, and exceptional service life across all custom geometries.

✓ 1400°C High-Temperature Durability: Performs continuously up to 1400°C (2552°F) in air and neutral gas atmospheres without structural thermal fatigue.

✓ Versatile Custom Geometries: Available in Straight, U, and W shapes to perfectly match dual-ended or single-ended furnace port configurations.

✓ Self-Healing Anti-Oxidation Coating: Automatically regenerates a dense SiO2 film at high temperatures to protect the internal ceramic matrix.

✓ High Watt Density & Fast Ramp-Up: Accommodates high surface loading (up to 15 W/cm²), enabling rapid kiln heating cycles.

✓ Low-Resistance Cold Terminals: Highly conductive cold-end segments keep terminal clamps cool, preventing electrical arcing and connection burnouts.

✓ Reinforced Bridge Joints: U and W shapes feature specially reinforced hot-welded bridges to eliminate stress fractures during thermal expansion.

✓ Reliable Quality:## SEO-Optimized Product Titles

• Custom Silicon Carbide (SiC) Heating Rods – Straight, U, & W Shapes

• High-Temperature SiC Heating Elements (1600°C) | Custom Straight, U, W Configurations

• Industrial Silicon Carbide Heaters: ED, U, and W-Shape Elements for Furnaces

Product Overview

Silicon Carbide (SiC) heating rods are high-performance non-metallic thermoelectric elements manufactured from premium green silicon carbide. Featuring high operational temperatures, superior anti-oxidation properties, and excellent thermal shock resistance, these elements provide consistent, stable heat profiles over extended lifespans. Engineered for demanding thermal processing environments, the rods are fully customizable in Straight, U-shape, and W-shape configurations to accommodate specific furnace layouts, complex wiring constraints, and precise targeted heating zones.

Technical Specifications & Performance Data

Industrial Applications & Solutions

• Ceramic & Refractory Kilns: Primary heating elements for firing porcelain, sanitaryware, technical ceramics, and high-alumina refractories in shuttle and roller hearth kilns.
• Glass Industry Forehearths & Feeders: High-radiance top-heating elements for temperature conditioning in glass container and tableware forehearth channels.
• Powder Metallurgy & Sintering: Sintering structural steel parts, tungsten carbide tools, and magnetic ferrite cores in push-rod and belt furnaces.
• Heat Treatment Furnaces: Annealing, hardening, tempering, and forging furnaces operating in air or controlled neutral gas atmospheres.
• Laboratory & R&D Muffle Furnaces: High-efficiency benchtop box and tube muffle furnaces requiring precise thermal uniformity up to 1400°C.

HT-Heater vs Standard Market SiC Elements

Shape Configurations & Advantages

• Straight Shape (ED Type): The standard, highly versatile configuration utilized in general high-temperature furnaces. Terminals exit from both ends, making it ideal for symmetrical chamber heating and standard horizontal or vertical installations across the width of the heating chamber.

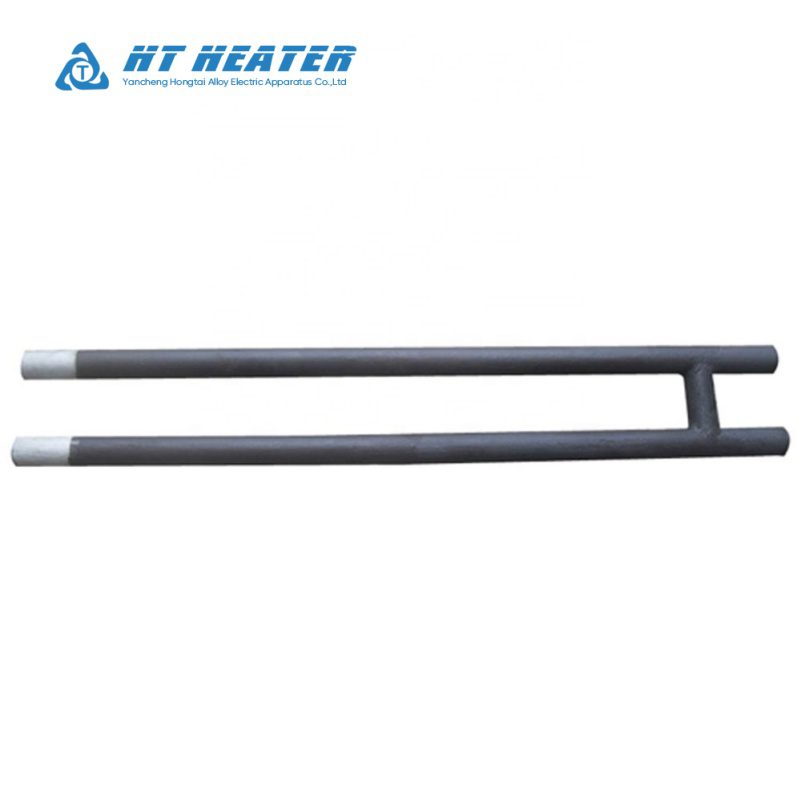

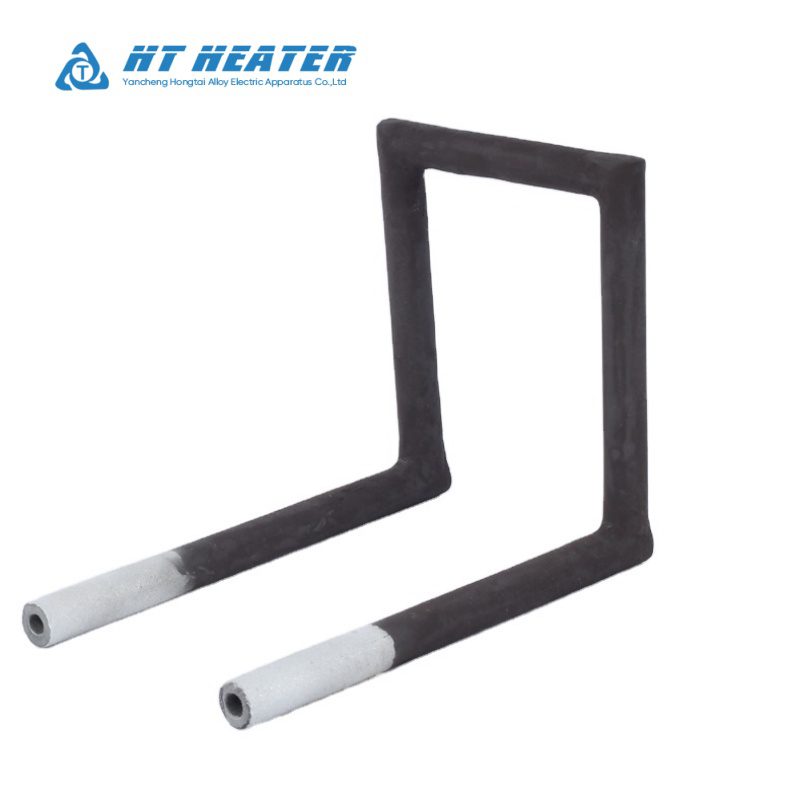

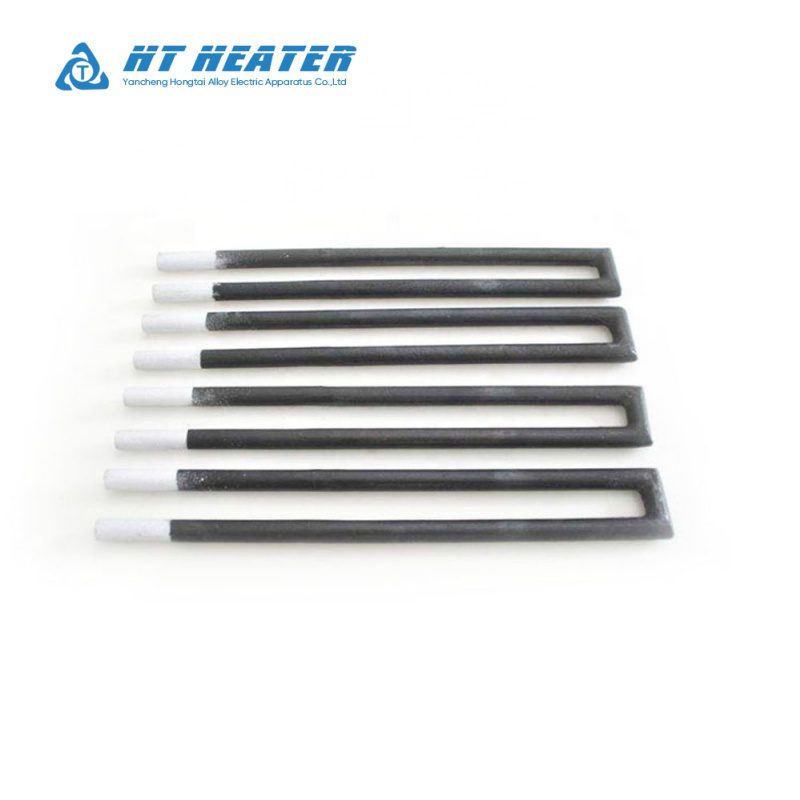

• U-Shape (DB Type): Features two precisely matched SiC rods connected by a thickened, low-resistance bridge. Both electrical terminals exit from the same side of the furnace. This design dramatically simplifies wiring architecture and minimizes structural heat loss by reducing the required number of cold-end terminal ports on the furnace walls.

• W-Shape: Consists of three integrated SiC heating elements connected at one end, engineered specifically for direct integration with three-phase power supplies. This robust configuration provides highly efficient, uniform thermal distribution across wide-hearth continuous furnaces and large-scale industrial heating spans.

Primary Industrial Applications

• Metallurgy & Powder Metallurgy: Sintering operations, smelting, and precise heat treatment of advanced alloys.
• Ceramic & Glass Production: Firing of structural and electronic ceramics, float glass manufacturing, and specialized glass melting processes.
• Semiconductor Manufacturing: Wafer processing, diffusion, and high-temperature material synthesis.
• Laboratory & Research: Integration into precision box furnaces, tube furnaces, and analytical high-temperature testing equipment.

Pricing & Procurement Options

• Standard Production: MOQ 5 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact resistance matching and dimensional repeatability across production lots. Tiered volume discounts available for 50+ unit orders.

• Lead Times: Standard Catalog Dimensions (Straight Rods OD 12–30 mm): In stock, 3-5 days. Custom Single/Double Spiral Shapes or Heavy Diameters (OD 35–54 mm): 7-10 days. Express air freight with protective wooden crating.

• Global Logistics: Encased in individual shock-absorbing foam tubes within reinforced wooden export crates to prevent transportation breakage.

• Sample Orders: Custom sample elements produced upon CAD drawing and electrical specification approval. Every shipment UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.

Global Certifications & Compliance

• CE Marking
  Fully compliant with European safety and environmental standards.
• LVD Compliance
  Low Voltage Directive tested for continuous thermal load safety.
• RoHS Compliant
  Constructed using environmentally safe, lead-controlled brass alloys.
• ISO 9001
  Certified quality control covering CNC machining, coil pressing, and electrical testing.

Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.

Comprehensive After-Sales Support

• • Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.

  • Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.

  • Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.

Ready to Optimize Your Injection Molding?

Next Steps:

• 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
• 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
• 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
• 📞 Contact Hot Runner Experts – Response within 2 hours
