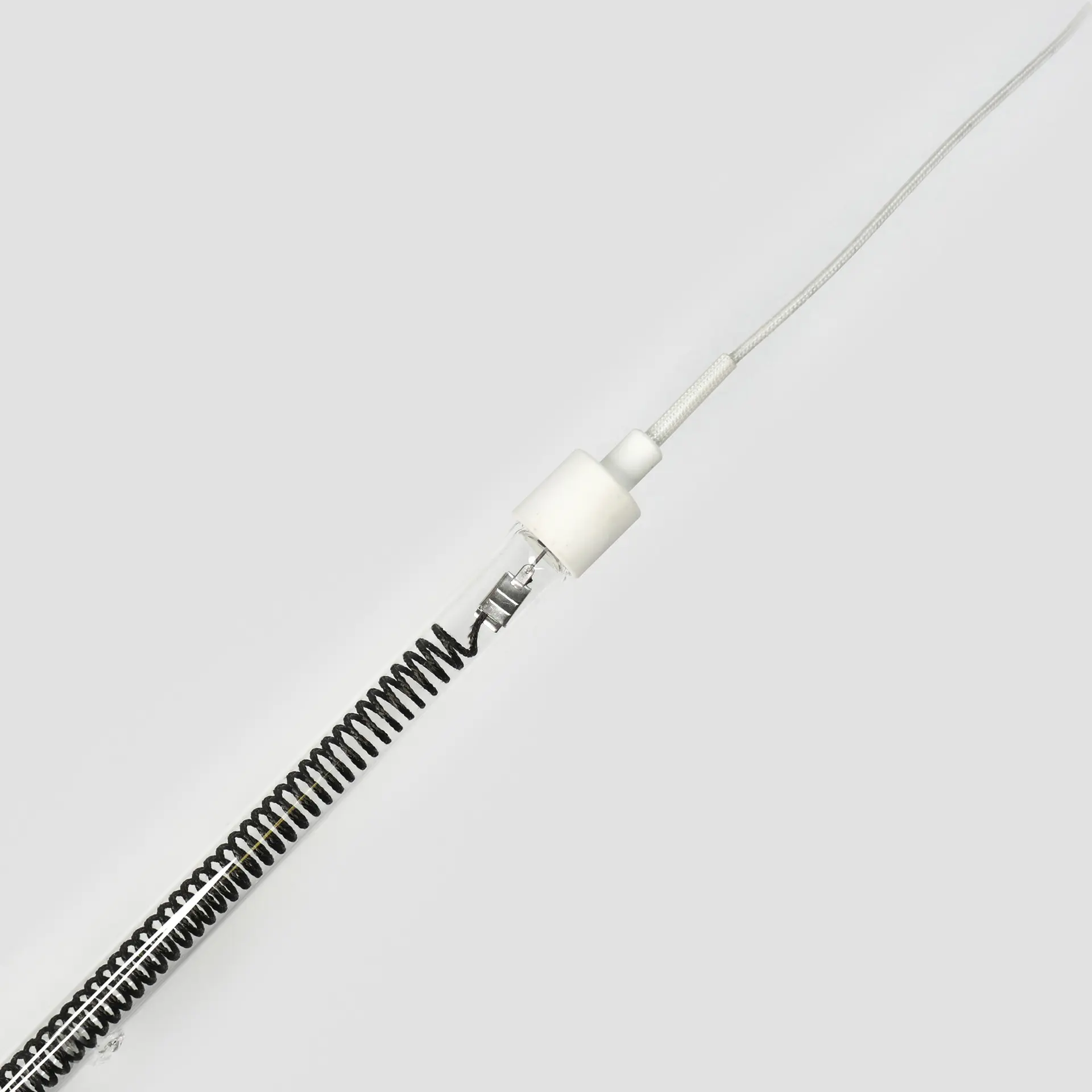

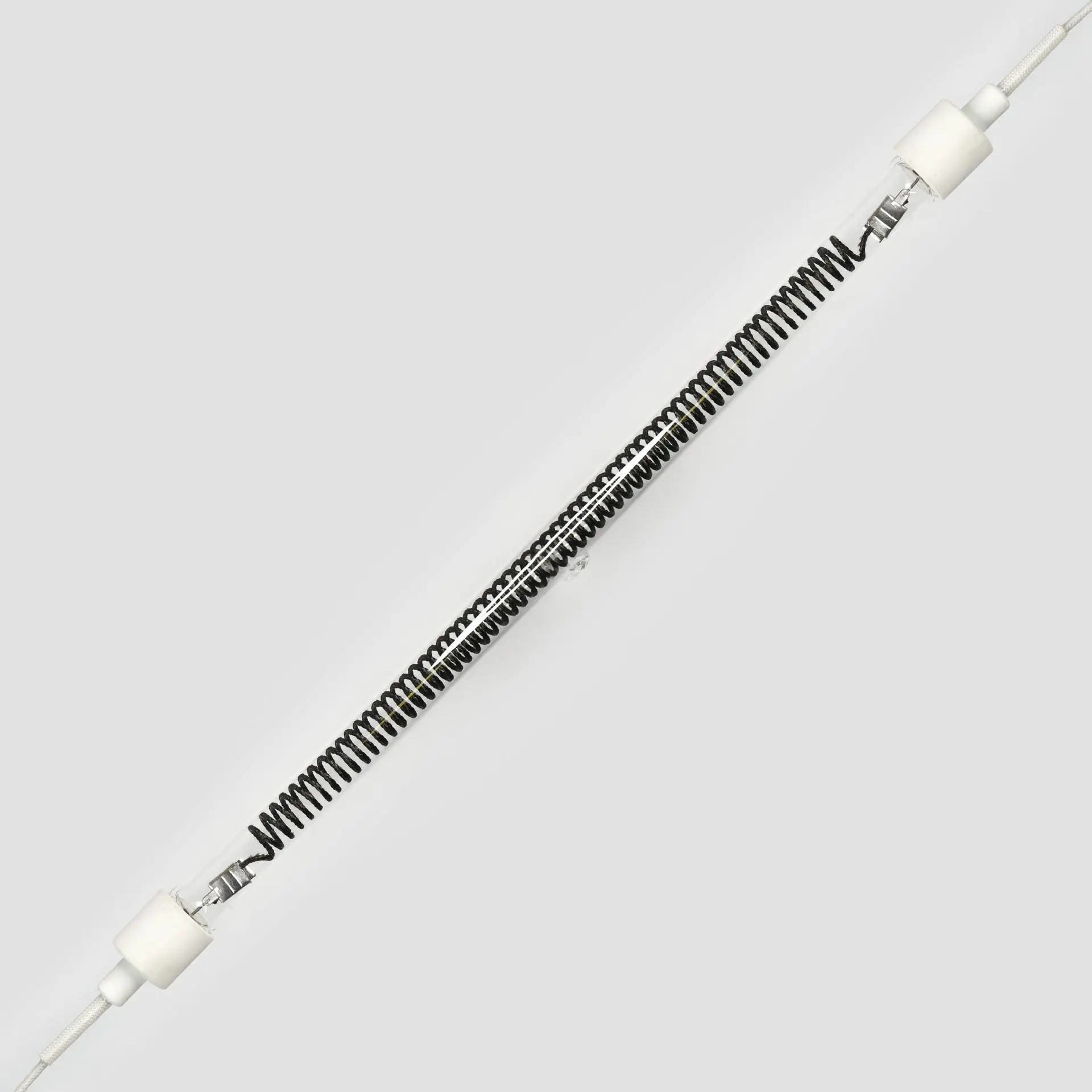

Carbon Fiber Medium Wave Quartz Infrared Heater (Universal Mount)
In the world of industrial thermal processing, efficiency and precision are paramount. The Hongtai Carbon fiber infrared heater represents the pinnacle of advanced heating technology, designed specifically for applications that demand gentle, deep-penetrating thermal energy. Unlike standard short-wave halogen lamps that emit intense blinding light and surface-level heat, this Medium wave quartz heater utilizes a highly specialized woven carbon fiber filament to produce a highly efficient, medium-wave infrared spectrum.
Operating at a peak wavelength of 2.5 to 3.5 μm, this heater perfectly matches the absorption spectrum of most plastics, polymers, and water-based solvents. This makes it the undisputed industry standard Paint curing lamp for automotive paint booths, thermoforming machines, and powder coating lines, ensuring a flawless, high-gloss finish every single time.
1. The Science of Medium Wave Carbon Fiber
When curing paints or thermoforming plastics, the way heat penetrates the material dictates the quality of the final product.
Standard short-wave heaters often heat the surface too rapidly, trapping solvents underneath and causing the dreaded “orange peel” effect or surface blistering. The Carbon fiber infrared heater solves this by emitting medium-wave radiation. This specific wavelength (2.5-3.5μm) penetrates directly into the polymer matrix or paint layer, curing the material uniformly from the inside out. This ensures faster processing times, eliminates trapped moisture, and yields a perfectly smooth finish.
Furthermore, the carbon fiber filament boasts an incredibly long operational lifespan of over 6000 hours, significantly outlasting traditional tungsten coils in continuous-duty industrial applications.
2. Key Technical Advantages & Selling Points
-
Universal Burning Position: Unlike traditional halogen lamps that must be mounted horizontally to prevent filament sag, our carbon fiber element allows for true omnidirectional installation. You can mount it vertically, horizontally, or at any custom angle required by your machinery without risking a short circuit.
-
Zero Inrush Current: Traditional tungsten heaters draw a massive spike of electricity (inrush current) upon startup, which can trip breakers and damage SSR controllers. The carbon fiber filament has a highly stable electrical resistance, meaning no inrush current. It starts smoothly, protecting your electrical infrastructure.
-
High Thermal Efficiency: Converts up to 98% of electrical energy directly into infrared heat, minimizing energy waste and reducing operational costs.
-
Eye-Friendly Operation: Emits a soft, warm amber glow rather than harsh, blinding white light, improving operator comfort and safety in open-air paint booths.
3. Comprehensive Technical Specifications
| Parameter | Industrial Specification | Notes |
| Product Type | Carbon fiber infrared heater | Medium Wave IR |
| Heating Element | Woven Carbon Fiber Filament | Quick thermal response |
| Peak Wavelength | 2.5 – 3.5 μm | Perfect polymer absorption |
| Tube Diameter (OD) | 10mm, 12mm, 14mm | High-purity clear quartz |
| Power Output | 300W to 1500W | Scalable based on length |
| Heated Length | 300mm to 1800mm | Custom lengths available |
| Expected Lifespan | > 6000 Hours | Extended operational life |
| Installation Angle | Universal (Any Angle) | Vertical/Horizontal safe |
| Inrush Current | None (Zero Spike) | Safe for all PID controllers |
4. Industry Applications
This Medium wave quartz heater is the preferred thermal component for:
-
Automotive Paint Booths: Acting as the primary Paint curing lamp, it dries automotive coatings from the inside out, preventing orange peel and ensuring a showroom-quality finish.
-
Vacuum Thermoforming: Rapid, uniform heating of thick plastic sheets (ABS, PS, PET) prior to molding, preventing surface degradation and cracking.
-
Powder Coating Lines: Gelling and curing powder coats on complex metal geometries.
-
Food & Textile: Drying moisture from fabrics, paper webs, and agricultural products safely without scorching.
| Model NO. | Carbon Fiber Quartz Heater | Material | Quartz, Carbon Fiber |

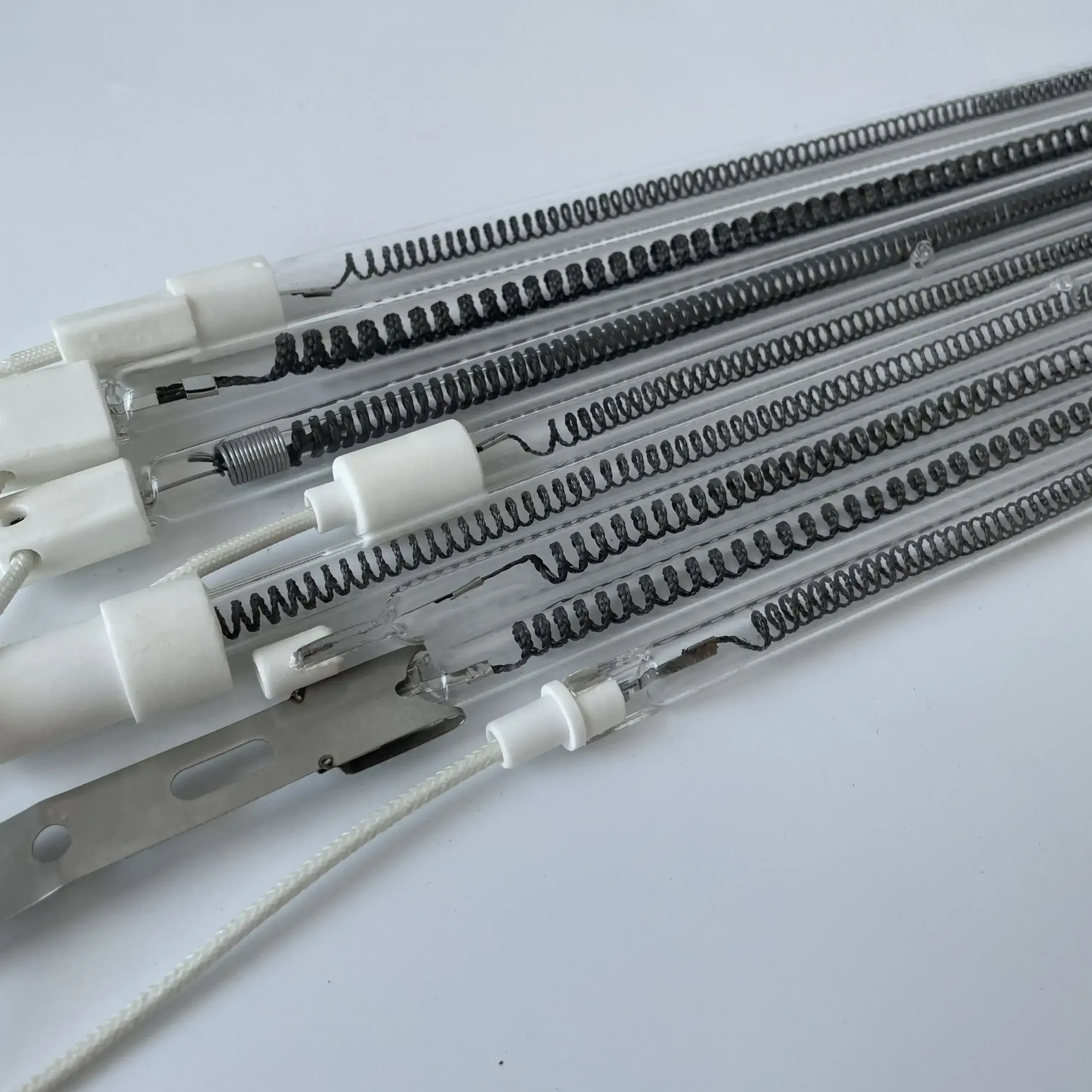

| Form | Infrared Heater | Shape | Straight, U Shape, Pear Shape, Customized |
| Voltage | 100-240V | Power | 300-1500W |
| Dia | 8-12mm | Peak Wave Length | 2-9.5 Microm |
| Color Temperature | 680-2450k | Application | Industrial Heating |
| Heating Unit | Carbon Fiber | Lifetime | Over 5000 Hours |
| Surface Treatment | Clear, Golden Plated or Coated White Processing | Heater | Quartz Infrared Heater |
| Transport Package | Carton, or Wooden Case | Specification | CE, ROHS |
| Trademark | Hongtai | Origin | Yancheng, Jiangsu |
| HS Code | 85168000 | Production Capacity | 50000PCS/Week |
5. Frequently Asked Questions (FAQ)
Q: Do I need a special controller for this heater?
A: No. Because the Carbon fiber infrared heater has zero inrush current, it is incredibly gentle on electrical systems. It can be paired with standard ON/OFF relays, solid-state relays (SSR), or phase-angle PID controllers without the risk of blowing fuses.
Q: Is the quartz tube fragile?
A: While all quartz glass requires careful handling, we utilize high-purity, thick-walled quartz tubing (up to 14mm OD) to ensure excellent thermal shock resistance. It can withstand rapid temperature changes without cracking.
Q: Can you customize the terminations?

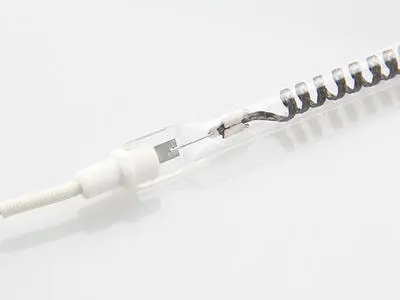

A: Yes, we offer standard SK15 ceramic caps, R7s snap-in contacts, and bare flying leads (with PTFE insulation) to match your existing oven fixtures perfectly.
Learn more about Carbon Fiber Heating Technology.
