Hongtai manufactures high-performance Silicone Rubber Heaters designed specifically for the additive manufacturing industry. Whether for OEM production lines (Creality, Anycubic style) or high-end Voron builds, our heaters provide the rapid thermal response and uniform heat distribution required for printing engineering-grade materials like ABS, ASA, Nylon, and Polycarbonate.

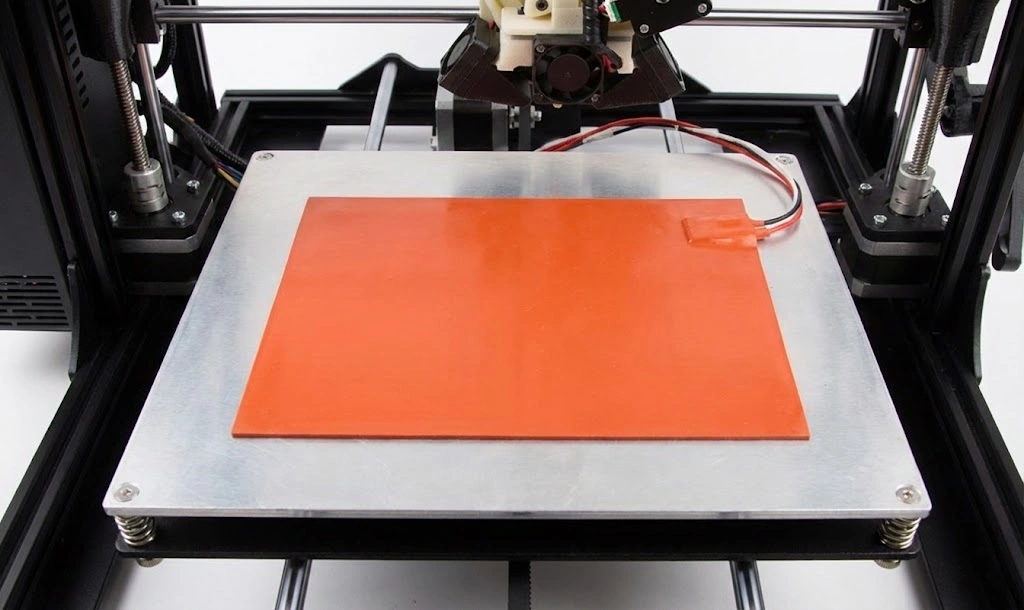

Unlike standard PCB heaters which can warp under high thermal stress, our flexible silicone pads are engineered to bond directly to precision-milled aluminum plates, ensuring a perfectly flat build surface and superior first-layer adhesion.

Core Industrial Advantages:

• Technology: Precision Etched Foil elements (not wire-wound) for superior thermal density and durability.

• Adhesion: Genuine 3M™ 468MP pressure-sensitive adhesive backing for a permanent bond up to 150°C.

• Sensing: Integrated NTC 100K Thermistor (Beta 3950) for precise ±1°C temperature regulation.

• Safety: Multi-layer fiberglass reinforced silicone insulation; optional thermal fuse integration.

• Power: Available in DC (12V/24V) for safety or AC Mains (110V/220V) for rapid heating on large beds.

1. Precision Etched Foil Technology

We utilize advanced Etched Foil technology rather than traditional wire-wound elements.

• Why it matters: Etched foil circuits are chemically etched from thin metal foil (similar to PCBs), allowing for a flat, broad heating element that covers 80-90% of the surface area.

• Benefit: This eliminates “hot spots” common in wire heaters and provides exceptionally fast thermal transfer to the aluminum build plate. The foil is flexible and fatigue-resistant, ideal for the repetitive motion of “bed-slinger” style 3D printers.

2. Genuine 3M™ Backing (Pre-Applied)

Adhesion failure is the #1 complaint in the industry. Hongtai uses only genuine 3M™ 468MP High-Performance Acrylic Adhesive (or 3M VHB for special requests).

• Performance: This industrial-grade adhesive is specifically formulated for high-surface-energy substrates like aluminum.

• Installation: Simply peel the liner and stick. The bond strength increases over time and heat cycling, ensuring the heater never detaches or sags, even at printing temperatures of 110°C+.

3. Integrated NTC Precision Thermistor

Accurate temperature feedback is critical for successful printing.

• Spec: We embed a generic NTC 100K Ω Thermistor (Beta 3950 1%) directly into the center of the silicone mat.

• Compatibility: This sensor is the industry standard, natively supported by Marlin (Sensor Type 1), Klipper (Generic 3950), and RepRap firmware.

• Design: The sensor is vulcanized inside the silicone layers, protecting it from mechanical damage while ensuring it reads the true core temperature of the heater.

4. Multi-Voltage & Dual-Zone Options

We manufacture to your specific power grid and safety requirements.

• DC Low Voltage (12V / 24V): Ideal for smaller printers (<300mm) or where safety is paramount.

• AC Mains Voltage (110V / 120V / 220V / 240V): Essential for large format printers (>300mm). AC heaters reduce the current load on the DC power supply and heat up large beds (e.g., 500x500mm) in under 3 minutes.

• Dual-Voltage / Dual-Zone: We can design heaters with concentric heating zones (e.g., a center “inner loop” for small prints and an “outer loop” for full-bed prints), saving energy and improving control.

Compatibility List & Dimensions

The following table lists our standard tooling sizes compatible with popular open-source and commercial 3D printers. Custom sizes and hole patterns are available upon request.

Material Specifications

FAQ

Q: Why choose an AC Mains (110V/220V) heater over DC (24V) for large printers?

A: For beds larger than 300mm, a DC heater requires excessive amperage (e.g., a 500W 24V heater draws over 20 Amps!), which stresses the power supply and MOSFETs. AC heaters draw very low amps (e.g., 500W at 220V is only ~2.2 Amps), allowing for faster heating and lighter wiring. Note: AC heaters must be controlled via a Solid State Relay (SSR).

Q: Can you manufacture heaters with cutouts for bed leveling screws?

A: Yes. We can die-cut internal holes or notches to accommodate leveling screws, mounting bolts, or Z-axis constraints. Please provide a DXF or PDF drawing with your inquiry.

Q: Is the thermistor replaceable?

A: In our standard design, the thermistor is vulcanized (permanently sealed) inside the pad for maximum thermal coupling and durability. If you prefer an external sensor, we can manufacture the pad with a hole in the center for you to mount your own bead thermistor.

Q: Do I need a thermal fuse?

A: For AC mains heaters, we highly recommend adding an integrated thermal fuse (e.g., 150°C cut-off). This provides a hardware-level safety failsafe against thermal runaway if the software or SSR fails. We can integrate this into the heater construction.
