Core Value

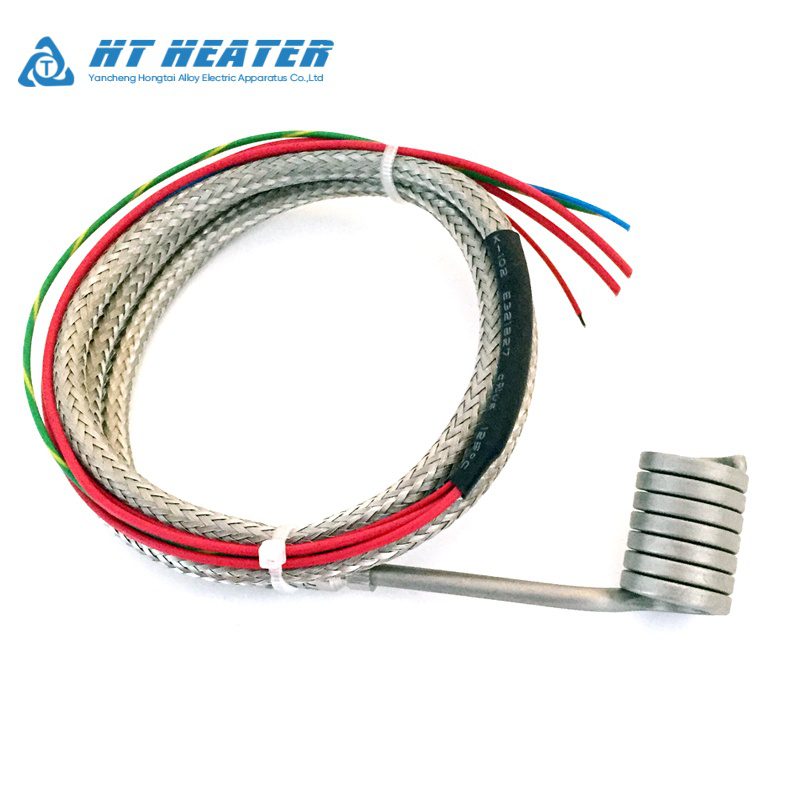

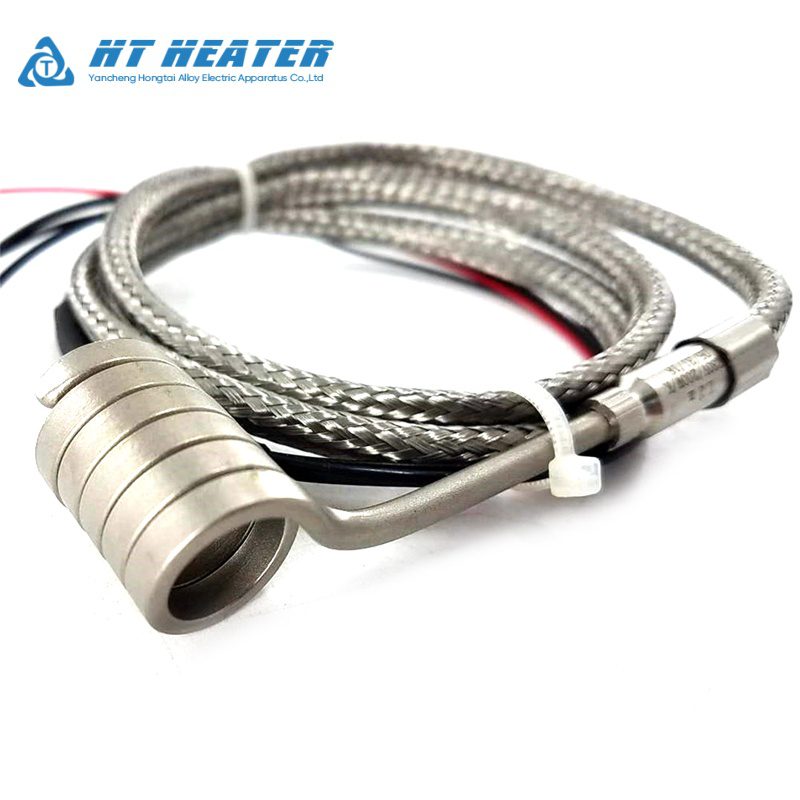

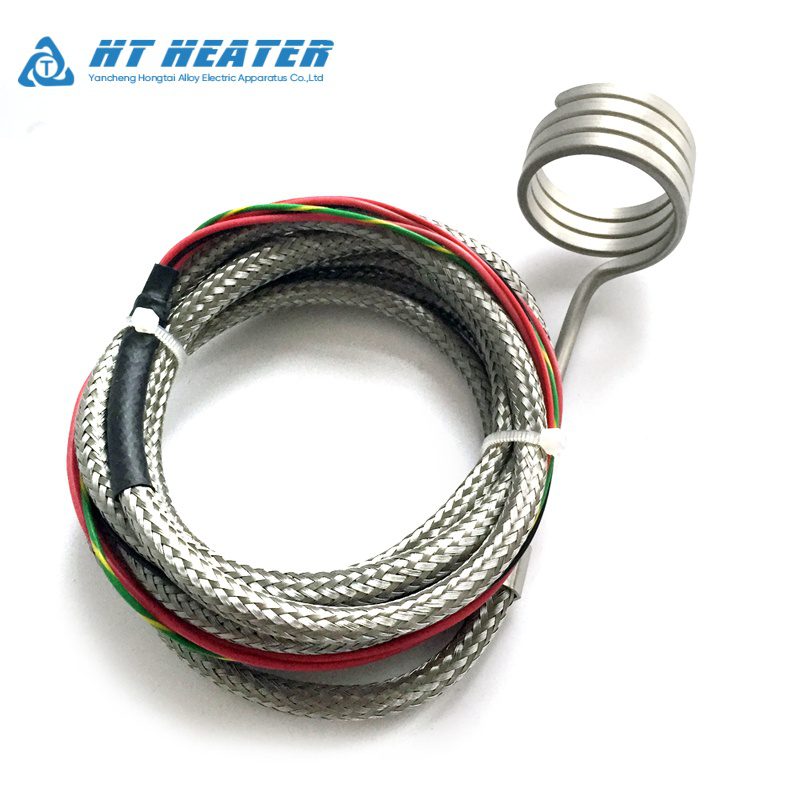

The 220V Stainless Steel Hot Runner Heater (Model: HT-CLW-450) is engineered for high-efficiency thermal profile management in demanding plastic injection molding nozzles, hot runner manifolds, and precision die systems. Built with a high-density compacted MgO heating core encased in a premium SS304/SS316 sheath, the HT-CLW-450 features an advanced Silicone Glass Fiber Sleeving over its terminal leads. This specialized insulation sleeve provides exceptional dielectric strength, heat resistance, and extreme flexibility, protecting lead wires from mechanical abrasion, oil contamination, and plastic melt splashing. Operating continuously at temperatures up to 650°C (1202°F), it delivers uniform 360° heat distribution, rapid warm-up, and precise temperature stability to prevent nozzle freezing and resin degradation. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS for continuous, maintenance-free industrial operation.

• ✓Silicone Glass Fiber Insulation: Flexible, high-temperature lead sleeving resists abrasion, chemical fumes, and mechanical wear.

• ✓ High Thermal Conductivity: Precision compacted stainless steel sheath ensures rapid heat transfer to nozzle walls.

• ✓ Extreme Temperature Capability: Operates continuously up to 650°C (1202°F) for processing high-temperature engineering resins.

• ✓ Model HT-CLW-450 Standardization: Precision-engineered standard profile for fast replacement and seamless mold integration.

• ✓ Integrated Thermocouple Support: Available with built-in Type J or Type K thermocouples for real-time closed-loop PID control.

• ✓ Moisture & Contamination Guard: Sealed transition junction prevents plastic melt leakage into internal terminal wiring.

• ✓ Reliable Quality: 30+ YEARS MANUFACTURING EXPERIENCE guarantees long operational lifespan.

• ✓ Quality Assured: UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including high-voltage insulation an dgrounding tests.

• ✓ Global Compliance: CE, LVD, RoHS, and ISO 9001 certified.

Technical Specifications & Performance Data

Industrial Applications & Solutions

1. • Hot Runner Injection Nozzles: Direct heating for single and multi-cavity hot runner bushings, preventing plastic freeze-off and gate drooling.

   • Plastic Injection Molding Manifolds: Custom coiled or straight elements integrated into manifold blocks for uniform melt viscosity control.

   • PET Preform Mold Systems: Maintains precise temperature profiles across high-cavitation PET bottle preform nozzles.

   • Medical Device & Precision Injection: Ensures exact melt viscosity control for medical-grade PEEK, PEI, and PC resin processing.

   • Packaging Sealing Bars & Form-Fill-Seal Jaws: Direct continuous heating in high-speed packaging machinery requiring flexible lead movement.

HT-Heater vs Standard Market Heaters

Installation & Integration Guidelines

• • • Nozzle Surface Cleaning: Clean the nozzle mating surface thoroughly to remove carbonized resin, oil, and debris before installing the HT-CLW-450 heater

    • Smooth Slide Fitting: Slide or expand the heater onto the nozzle smoothly. Do not force or strike the element with hard metal tools to avoid cracking internal MgO insulation.

    • Silicone Lead Wire Routing: Route the silicone glass fiber insulated leads through the mold wiring channels. Avoid sharp 90° bends or pinching under clamping plates.

    • Thermocouple Wiring (If Equipped): Connect thermocouple wires using correct polarity (Type J: White = Positive, Red = Negative) to dedicated PID controller terminals.

    • Pre-Heating Bake-Out: Perform a low-voltage pre-heating cycle at 100°C for 10 minutes to clear any ambient moisture absorbed during storage prior to ramping up to full 220V power.

Customer Success Stories

Case 1:

Automotive Precision Component Molder (Czech Republic)

• Application: 16-cavity hot runner system processing polyamide (PA66) automotive connectors.

• Challenge: Frequent wire sleeve fraying and short circuits caused by oil and high mold movement.

• Solution: 220V Stainless Steel Hot Runner Heater HT-CLW-450 with Silicone Glass Fiber sleeving.

• Results: LEAD WIRE FAILURES REDUCED TO 0%. “The silicone glass fiber insulation is extremely tough and flexible. HT-Heater UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS, and their batch quality is flawless.”

Case 2:

ET Preform Mold Maker (Turkey)

• Application: High-speed 72-cavity bottle preform hot runner nozzle manifold.

• Challenge: Uneven nozzle heating caused gate stringing and frequent production line stoppages.

• Solution: Custom-wattage HT-CLW-450 Hot Runner Heaters with integrated Type J thermocouples.

• Results: PRODUCTION YIELD INCREASED BY 18%. “30+ YEARS MANUFACTURING EXPERIENCE shows in their thermal balance. The heat output around the nozzle tip is perfectly uniform.”

Pricing & Procurement Options

• • • Standard Production: MOQ 10 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact dimension repeatability for model HT-CLW-450. Tiered OEM discounts available for 50+ units.

    • Lead Times: Standard Stock Models: 3-5 days. Custom Specification Runs: 7-10 days. Express sample dispatch available for urgent mold repairs.

    • Global Logistics: Express shipping via DHL, FedEx, UPS, or air freight. Packed in anti-static bags and protective export cartons.

    • Sample Orders: Custom samples produced upon CAD drawing approval. Every unit UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.

Global Certifications & Compliance

• CE Marking
  Fully compliant with European safety and environmental standards.
• LVD Compliance
  Low Voltage Directive tested for continuous thermal load safety.
• RoHS Compliant
  Constructed using environmentally safe, lead-controlled brass alloys.
• ISO 9001
  Certified quality control covering CNC machining, coil pressing, and electrical testing.

Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.

Comprehensive After-Sales Support

• • Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.

  • Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.

  • Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.

Ready to Optimize Your Injection Molding?

Next Steps:

• 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
• 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
• 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
• 📞 Contact Hot Runner Experts – Response within 2 hours
