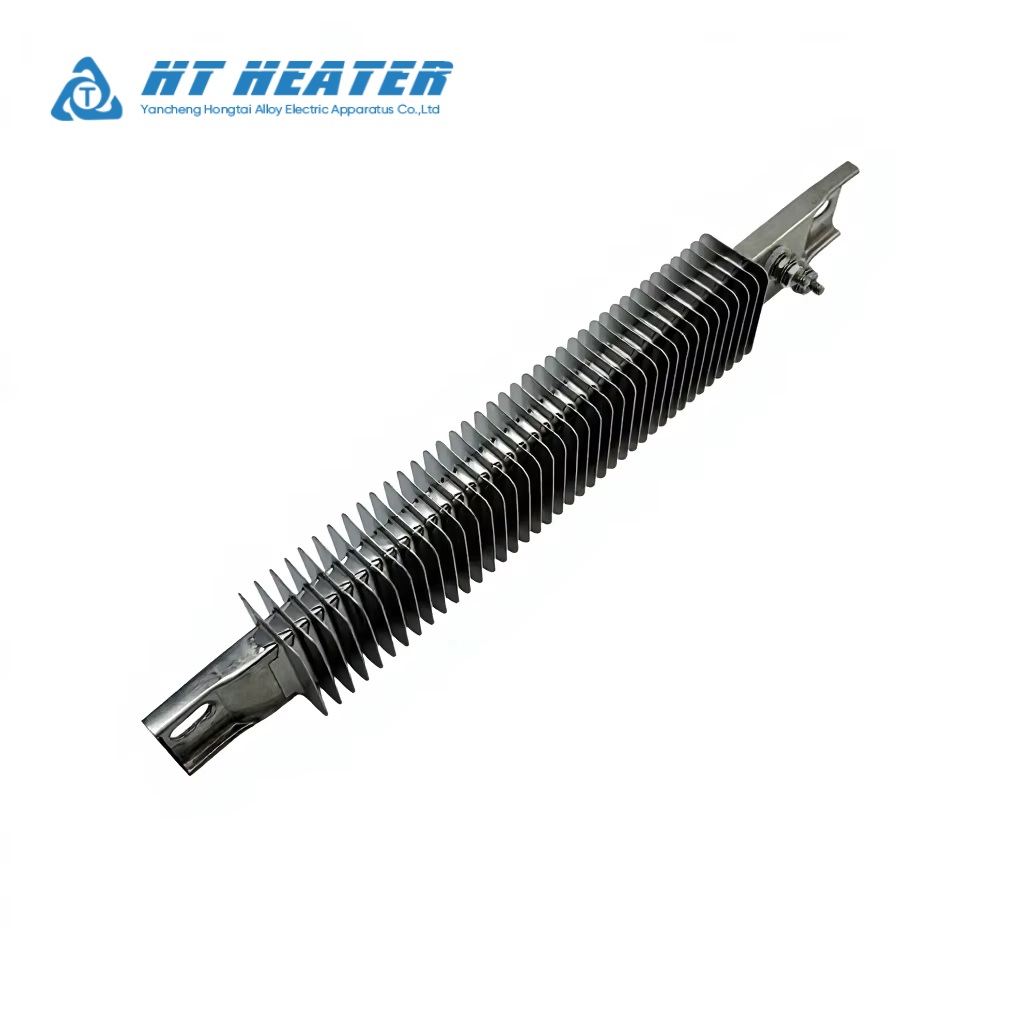

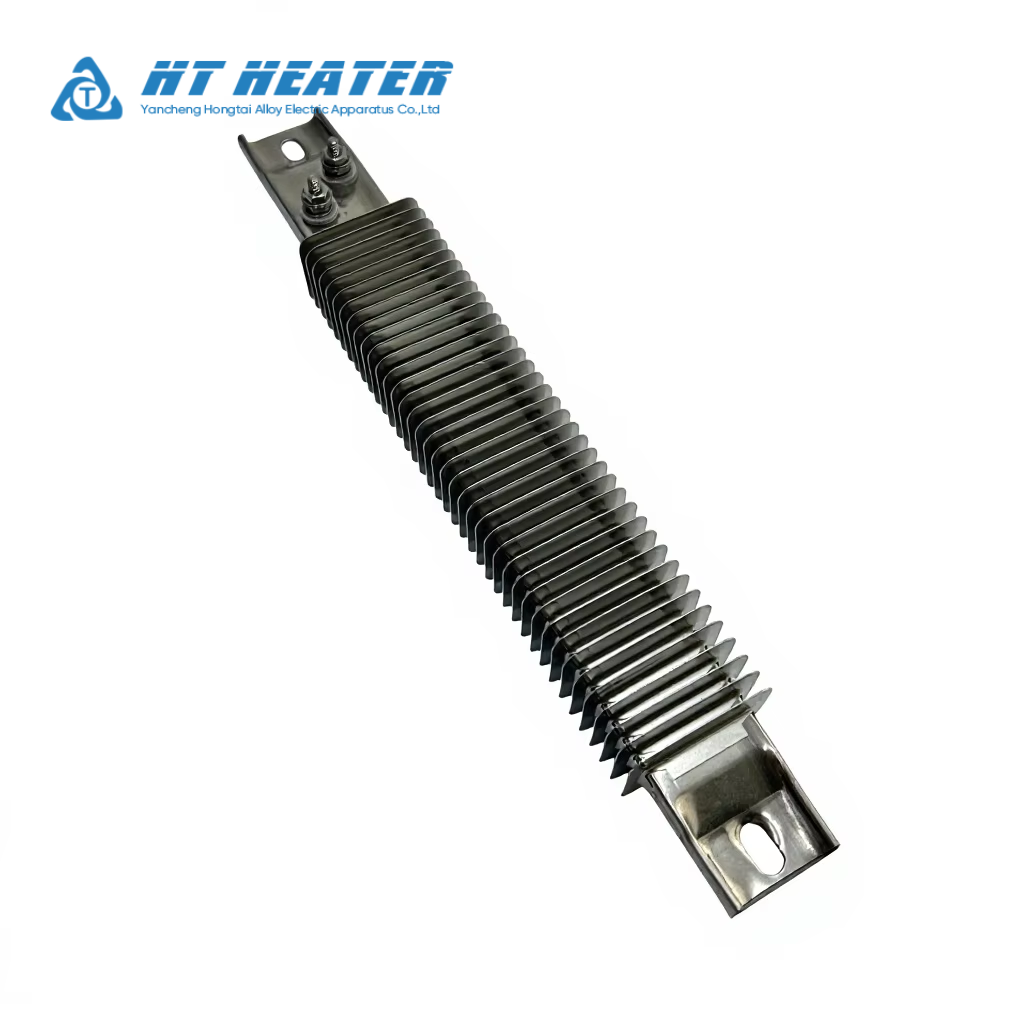

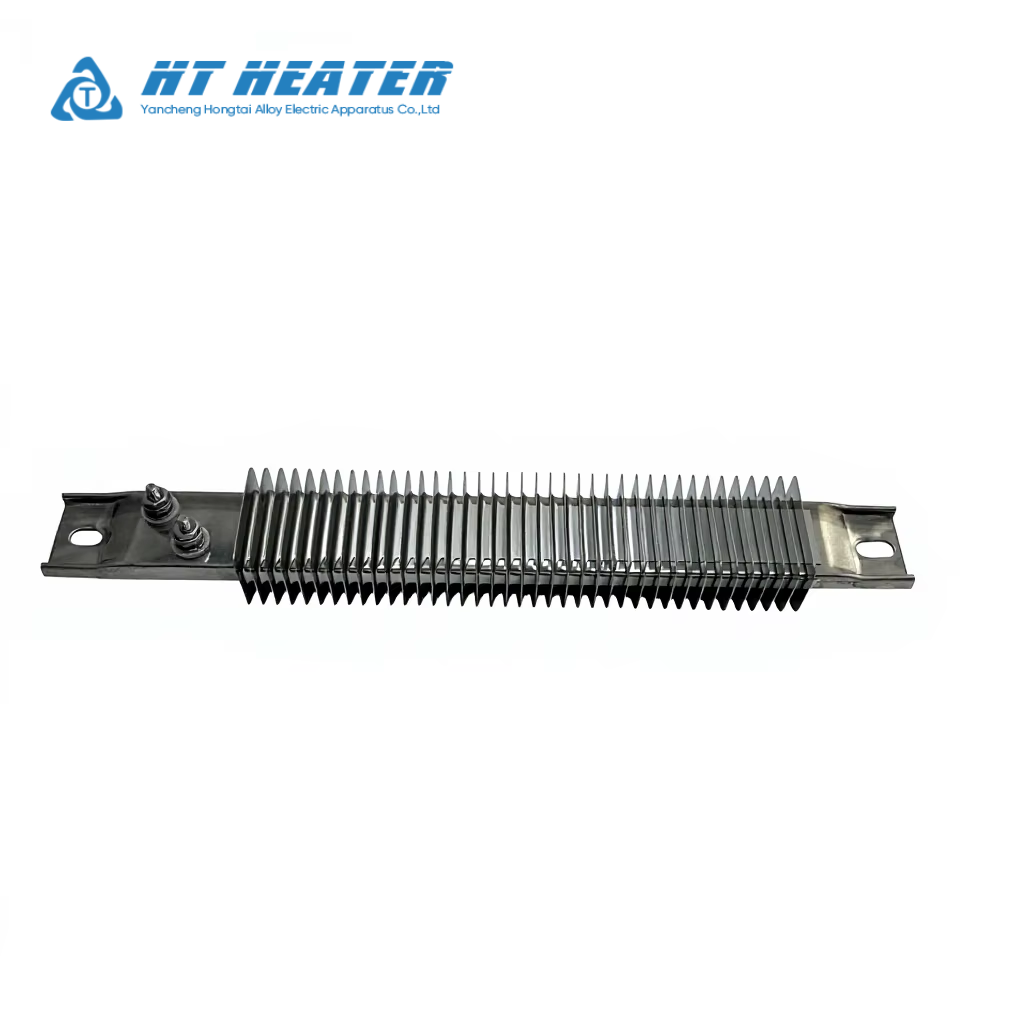

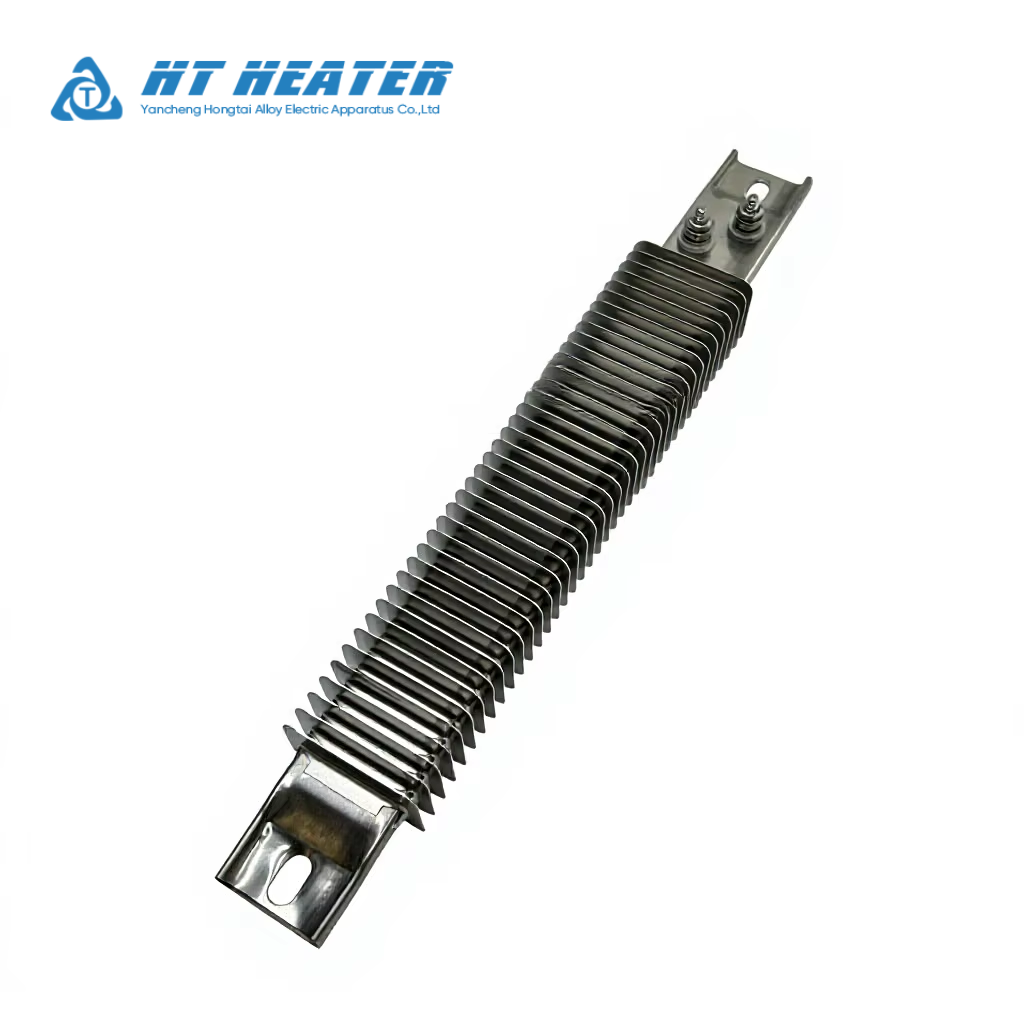

Core Value: The 300mm Stainless Steel Finned Strip Heater 500W-1000W is engineered for high-efficiency forced air and natural convection heating in demanding industrial environments. By continuously brazing stainless steel cooling fins onto a heavy-duty sheath, the total surface area is expanded by 500%, facilitating rapid heat dissipation into the air stream without overheating the internal resistance core. Capable of handling sheath temperatures up to 500°C (932°F), this compact 300mm unit delivers robust thermal transfer for duct heating, load banks, and moisture-prevention control cabinets. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS for continuous, long-term industrial operation.

• ✓Maximized Surface Area: Stainless steel cooling fins increase heat transfer to air by 5x compared to standard smooth strip heaters.

• ✓ Compact High Power: Achieves high watt density capabilities ($500\text{W} – 1000\text{W}$) within a modular 300mm footprint.

• ✓ Heavy-Duty Construction: Corrosion-resistant SS304 sheath withstands high humidity and harsh factory atmospheres.

• ✓ Rapid Thermal Recovery: Low thermal mass allows for fast ramp-up times and precise PID temperature response.

• ✓ Vibration Resistant: Mechanically bonded fin structure eliminates rattling and thermal fatigue under continuous cycling.

• ✓ Easy Installation: Integrated mounting tab slots accommodate standard hardware and allow for thermal expansion.

• ✓ Reliable Quality: 30+ YEARS MANUFACTURING EXPERIENCE guarantees long service life.

• ✓ Quality Assured: UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including high-voltage insulation testing.

• ✓ Global Standards: CE, LVD, RoHS, and ISO 9001 certified.

Technical Specifications & Performance Data

Industrial Applications & Solutions

1. HVAC & Air Duct Heating: Booster heating elements in air ducts and forced-air drying chambers, delivering efficient heat transfer with minimal pressure drop.

2. Electrical Control Cabinet Dehumidification: Gentle, uniform convection heating to prevent moisture condensation and freezing in outdoor telecom and power distribution panels.

3. Resistive Load Banks: Rapid heat dissipation for generator and battery testing load banks, preventing element burnout under high current loads.

4. Industrial Drying & Curing Ovens: Convection air heating for paint drying, textile setting, and food dehydration equipment.

5. Shrink Packaging Tunnels: Hot air circulation elements for shrink wrap packaging tunnels, ensuring quick thermal recovery for fluctuating conveyor speeds.

6. Dehumidification & Regeneration: Used in industrial desiccant air dehumidifiers to heat regeneration air streams.

HT-Heater vs Standard Market Heaters

Installation & Integration Guidelines

• Airflow Orientation: Install heaters so the cooling fins run parallel to the direction of airflow to minimize air resistance and maximize heat stripping.

• Bank Spacing: Maintain a minimum distance of 50mm between adjacent finned strip heaters when mounting them in banks to prevent radiant heat overlap.

• Thermal Expansion Allowance: Utilize the slotted mounting holes at the ends. Do not fix both ends rigidly without expansion clearance, as thermal expansion during operation can cause bowing.

• Wiring Protection: Use high-temperature nickel-plated steel ring lugs with silicone-fiberglass sleeving. Torque terminal nuts carefully to avoid shearing the stud posts.

• Airflow Interlock: Install an airflow interlock switch in forced-air systems to automatically shut off power to the heaters if the blower fan fails.

Customer Success Stories

Case 1: Load Bank Manufacturer (USA)

• pplication: 500kW portable generator testing load bank.

• Challenge: Existing plain strip heaters were burning out rapidly due to poor surface air dissipation under full load.

• Solution: 300mm Stainless Steel Finned Strip Heaters (1000W / 240V).

• Results: HEAT DISSIPATION IMPROVED BY 45%. “The fin bonding quality is top-notch. HT-Heater UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS, and they handle heavy current cycling flawlessly.”

Case 2: Telecom Outdoor Cabinets (Sweden)

• Application: Anti-condensation cabinet heating for remote 5G outdoor base stations.

• Challenge: Winter moisture buildup caused localized electrical shorting inside unheated panels.

• Solution: 300mm 500W Finned Air Heaters installed at the cabinet base.

• Results: ZERO MOISTURE FAILURES. “30+ YEARS MANUFACTURING EXPERIENCE is reflected in their product reliability. Kept our outdoor electronics completely dry all winter.”

Case 3: Food Drying Oven (Thailand)

• Application: Fruit dehydration hot-air drying tunnel.

• Challenge: Slow heat recovery after conveyor loading caused inconsistent drying cycles.

• Solution: Bank array of 60 300mm SS finned strip heaters with high-velocity blowers.

• Results: DRYING CYCLE TIME REDUCED BY 20%. “Thermal response is nearly instantaneous. Excellent factory craftsmanship and fast shipping.”

Pricing & Procurement Options

• Standard Production: MOQ 10 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring batch-to-batch element performance. Volume discounts available for orders over 50 units.

• Lead Times: Standard Stock Models: 3-5 days. Custom Production Runs: 7-10 days. Express sample sampling available upon request.

• Global Logistics: Worldwide delivery via UPS, DHL, FedEx, TNT, or ocean freight based on order volume. Every export shipment is securely packed in reinforced cartons.

• Sample Orders: Paid sample units available for testing and evaluation. All sample units UNDERGO MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.

Global Certifications & Compliance

• CE Marking
  Fully compliant with European health, safety, and environmental protection standards.
• LVD Compliance
  Low Voltage Directive tested for industrial electrical heating safety.
• RoHS Compliant
  Constructed using environmentally safe, lead-free raw materials.
• ISO 9001
  Certified quality control system covering element winding, fin bonding, and final testing.

Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports provided with every shipment.

Comprehensive After-Sales Support

• Warranty: 1-Year Comprehensive Standard Warranty against manufacturing and material defects.

• Technical Support: Dedicated application engineers available for airflow velocity calculations, watt density selection, and thermal layout design.

• Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
