Core Value

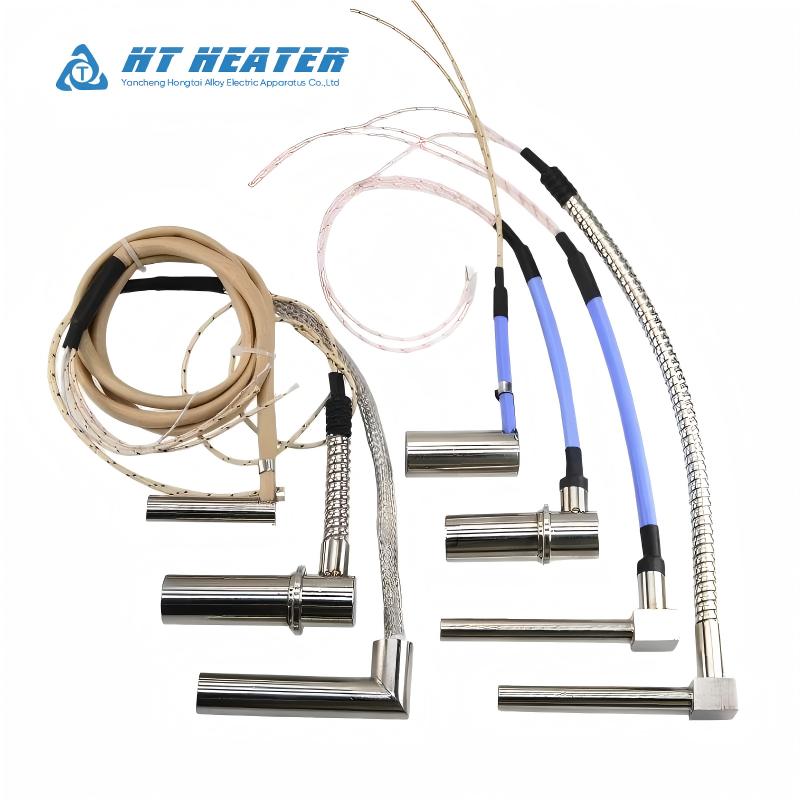

In precision injection tooling and automated packaging machinery, lead routing space is often limited to tight cavities and narrow mold channels. Standard straight-exit cartridge heaters force technicians to bend lead wires sharply at the exit point, causing mechanical stress concentrations, insulation cracking, and catastrophic premature wire failure. The 220V Right Angle Cartridge Heater for Mold resolves this issue at the engineering level by routing conductors out through a factory-fabricated 90-degree configuration.
Constructed with high-grade stainless steel sheathing, each 90 degree cartridge heater houses tightly compacted high-purity crystalline MgO powder surrounding precision-wound Ni80Cr20 resistance wire. Depending on your mechanical requirements, the right-angle head can be manufactured using a precision-machined square block or a seamless welded elbow. To protect against mechanical friction, molten resin overflow, and continuous tool movement, lead wires can be shielded with stainless steel wire braiding, flexible metal armor conduit, or high-temperature silicone/fiberglass sleeving. In addition, integrated locating stop rings (collars) are available to lock insertion depth firmly in place, ensuring the active heated zone remains fully seated inside the mold cavity.
- ✓ Low-Profile 90° Exit: The low-clearance right-angle geometry fits tight mold pockets, eliminating sharp lead bending and wire fatigue.

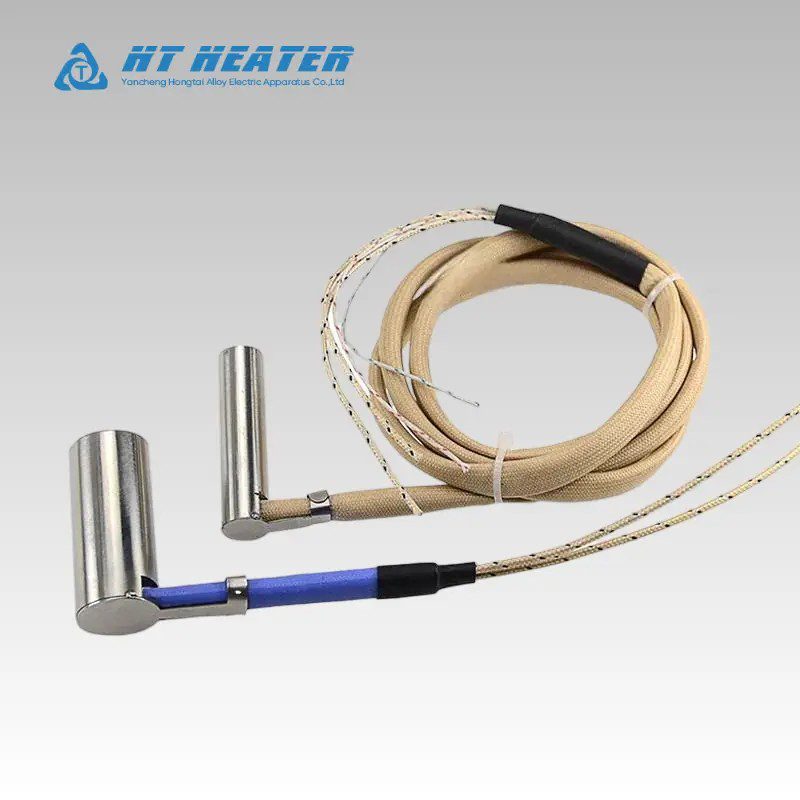

- ✓ Robust Lead Armor Options: Available with flexible stainless steel armor conduit and heavy-duty metal braiding to resist plastic splash, oil, and abrasion.

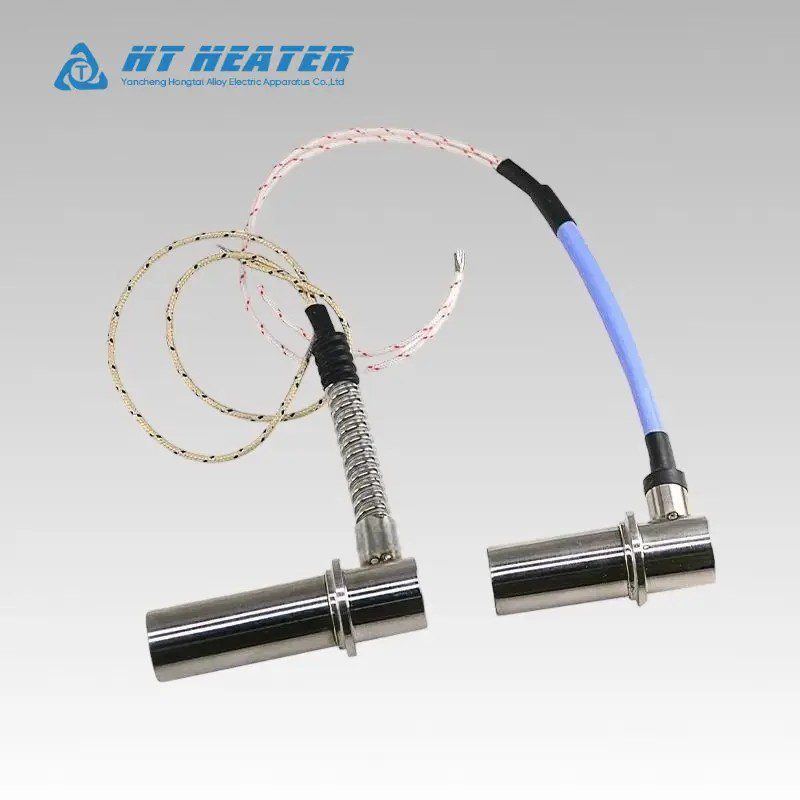

- ✓ Positive Stop Collar Positioning: Optional welded retaining rings/collars guarantee exact insertion depth and prevent axial shifting during machine vibration.
- ✓ High Watt Density & Fast Thermal Response: Swaged and centerless-ground sheath ensures high heat transfer rates with minimal thermal inertia.
- ✓ Built-In Thermocouple Option: Can be configured with integrated Type J or Type K thermocouples for real-time closed-loop temperature control.
- ✓ Direct OEM Manufacturing: Fully customizable diameters, sheath lengths, lead wire styles, and voltages supplied directly by Hongtai Heater Factory.
Technical Specifications & Performance Data
| Parameter | Standard Specification | Customizable Options | Notes |
|---|---|---|---|
| Product Category | 220V Right Angle Cartridge Heater for Mold | Straight Exit, Flanged, Built-In Thermocouple Heaters | Designed specifically for compact mold and platen cavities |
| Operating Voltage | 220V AC Single Phase Standard | 12V, 24V, 110V, 120V, 240V, 380V, 480V | Calibrated to regional industrial electrical grids |
| Tube Diameter (Ø) | Φ6.5mm, Φ8mm, Φ10mm, Φ12mm, Φ16mm | Φ3.0mm to Φ25mm (Metric & Fractional Imperial) | Centerless ground to tight tolerances (±0.02 mm) |

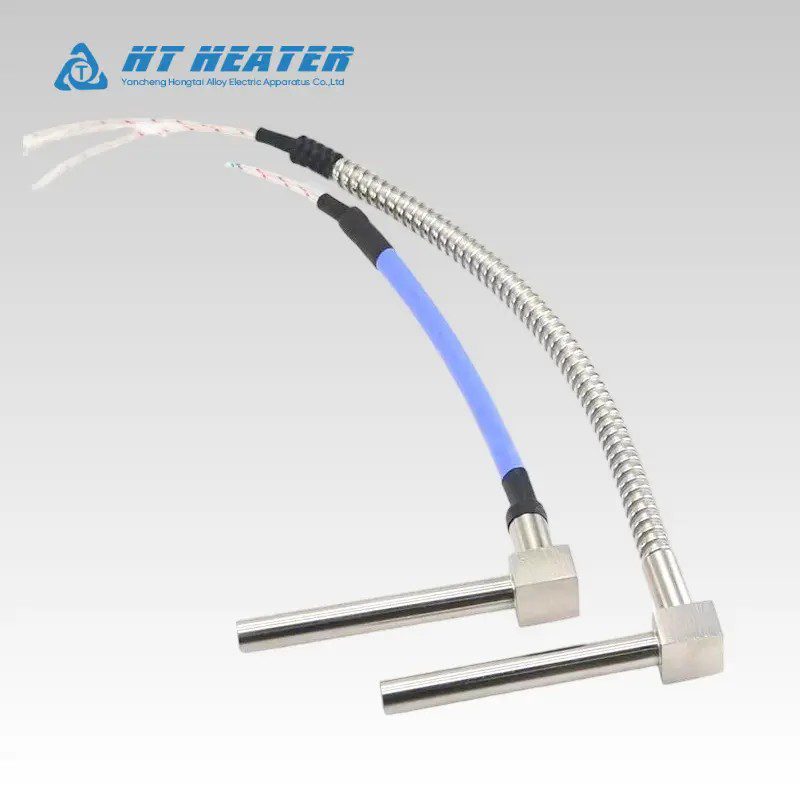

| Right Angle Exit Type | Precision Milled Square Block / Welded Elbow | Cast Right Angle Head, Low-Profile Chamfered Block | Fully welded junction resists physical tension and pulling |
| Lead Wire Protection | Stainless Steel Braiding / Flexible Metal Armor | Silicone Fiberglass Sleeving, Ceramic Beads, Heat Shrink | Shields conductors against mechanical wear and resin leaks |
| Mounting & Fixture | Smooth Sheath / Welded Locating Stop Collar | Threaded Bushings (NPT/Metric), Mounting Flanges | Retaining ring locks insertion depth inside mold bores |
| Sheath Material | SUS304 Stainless Steel Standard | SUS316L, Incoloy 800, Incoloy 840 | Selected based on operating temperature and chemical exposure |
| Internal Sensor | None (Standard) | Built-in Type J or Type K Thermocouple | Grounded or ungrounded junction at disc end |
Industrial Applications & Solutions
This versatile low-profile cartridge heater is the preferred thermal component across several critical tooling industries:
- Plastic Injection Molds & Hot Runner Manifolds: Fits narrow side slide pockets and runner plates to maintain steady melt temperatures without interfering with mold clamping.

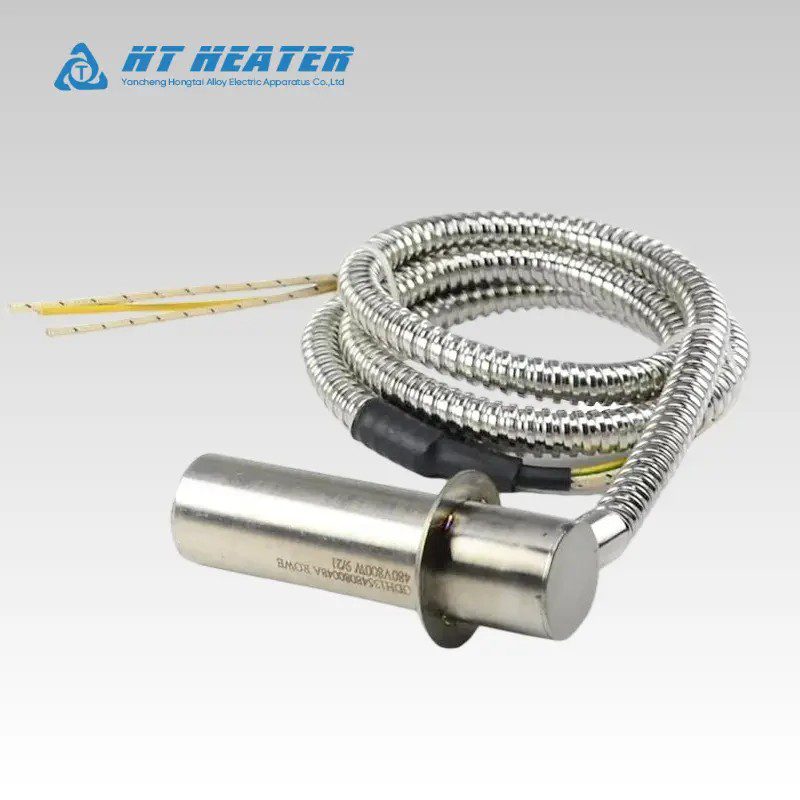

- Packaging & Form-Fill-Seal Machinery: Embedded into reciprocating heat-sealing jaws where armored leads absorb continuous cyclic motion.
- Rubber Vulcanization & Compression Platens: Withstands high mechanical pressure and continuous vibration in multi-day pressing operations.
- Medical & Laboratory Diagnostic Equipment: Delivers targeted heating in micro-fluidic analytical blocks and compact thermal stages.
- Die Casting & Tooling Preheating: Prevents premature alloy freezing around gate bushings and tight injection nozzles.
Hongtai Heater Factory Advantage: Why Choose Our Heaters?
| Feature | Hongtai Right Angle Heater | Generic Market Heaters | Your Operational Advantage |
|---|---|---|---|
| Exit Joint Strength | Fully welded/brazed solid steel square block | Crimped or spot-welded thin sheet bracket | Resists heavy pull forces and impact during mold installation without breaking. |
| Conductor Armor | Dense stainless steel braid & heavy-duty conduit | Thin exposed PVC or low-grade fiberglass sleeve | Eliminates wire fraying, short-circuits, and downtime caused by moving machinery. |
| Diameter Precision | Centerless ground to H7 bore fit tolerances | Inconsistent, out-of-round tube extrusion | Ensures maximum metal-to-metal contact and rapid heat dissipation. |
| Dielectric Integrity | High-pressure swaged premium MgO core | Loose hand-poured powder with voids | High breakdown voltage (>1800V/1s) with zero high-temperature leakage current. |
Installation & Handling Guidelines
- Mold Hole Clearance: Ream mold holes to an H7 tolerance. The clearance between the cartridge heater outer diameter and the hole inner diameter should ideally be within 0.05 mm to 0.1 mm (0.002″ to 0.004″ ). Excessive clearance impairs heat dissipation and drastically shortens element lifespan.
- Full Heated Length Insertion: Ensure the entire active heated section is fully inserted into the mold bore. If your heater features a locating stop ring, press it flush against the mold surface. Never leave active heated zones exposed to open air.
- Clean the Bore: Remove all machining chips, anti-seize lubricants, carbon buildup, and moisture from the bore before inserting the new element.
- Lead Routing: Secure the armored lead wire along designated wire raceways using cable clamps. Ensure the flexible conduit is not pinched between moving mold plates or subjected to tight bending beyond its minimum bend radius.
Customer Success Stories
Case 1:
Automotive Interior Tooling Specialist (Germany)
-
Application: Side-slide auxiliary heating on large door-panel injection molds.
-
Challenge: Standard straight-lead heaters suffered wire shearing every two to three weeks due to tight clearance around hydraulic slide mechanisms.
-
Solution: Switched to Hongtai Heater Factory‘s 220V Right Angle Cartridge Heater for Mold featuring heavy-duty square-block exits and stainless steel flexible armor conduit.
-
Results: OVER 14 MONTHS OF UNINTERRUPTED PRODUCTION. Low-profile right-angle routing completely cleared the slide mechanism, reducing maintenance costs by 92%
Case 2:
High-Speed Vertical Form-Fill-Seal Machinery OEM (Turkey)
-
Application: Cross-sealing jaw heating operating at 95 cycles per minute.
-
Challenge: Machine vibration and reciprocating motion caused generic heating elements to shift out of position, causing uneven heat seals and melted packaging film.
-
Solution: Installed Hongtai right-angle cartridge heaters equipped with precision-welded locating stop collars and high-density stainless steel braided lead wires.
-
Results: SEALING DEFECT RATE REDUCED TO 0.1%. The stop collars maintained exact heated zone alignment, while the braided leads handled millions of motion cycles without wire breakage
Pricing & Procurement Options
- OEM Customization: Tailored shapes, custom cutout holes for pipe nozzles, specialized voltage/wattage configurations, and custom strap lengths.
- Lead Times: Custom samples: 3–5 working days. Bulk production orders: 8–12 working days upon technical drawing sign-off.
- Packaging & Shipping: Individually bagged with protective foam padding and packed into heavy-duty 5-ply export cartons to prevent bending or lead wire stress during international transit.
- Minimum Order Quantity (MOQ): Low MOQ starting at 5–10 units for custom dimensions; competitive volume pricing tiers for equipment manufacturers.
Global Certifications & Compliance
- CE Marking
Fully compliant with European safety and environmental standards. - LVD Compliance
Low Voltage Directive tested for continuous thermal load safety. - RoHS Compliant
Constructed using environmentally safe, lead-controlled brass alloys. - ISO 9001
Certified quality control covering CNC machining, coil pressing, and electrical testing.
Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.
Comprehensive After-Sales Support
-
- Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.
-
Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.
-
Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.
