Core Value

The 1400C Straight and Spiral SiC Heating Elements for Kiln (Silicon Carbide Heating Elements) are premium non-metallic high-temperature heating elements designed for industrial ceramic kilns, glass forehearths, powder metallurgy furnaces, and heat treatment equipment. Manufactured from high-purity, high-density recrystallized Green Silicon Carbide ($\alpha\text{-SiC}$) grains through high-temperature reaction sintering, these elements form a dense protective silicon dioxide ($\text{SiO}_2$) surface layer under thermal loads, shielding the internal matrix from atmospheric oxidation and chemical corrosion at operating temperatures up to 1400°C (2552°F).

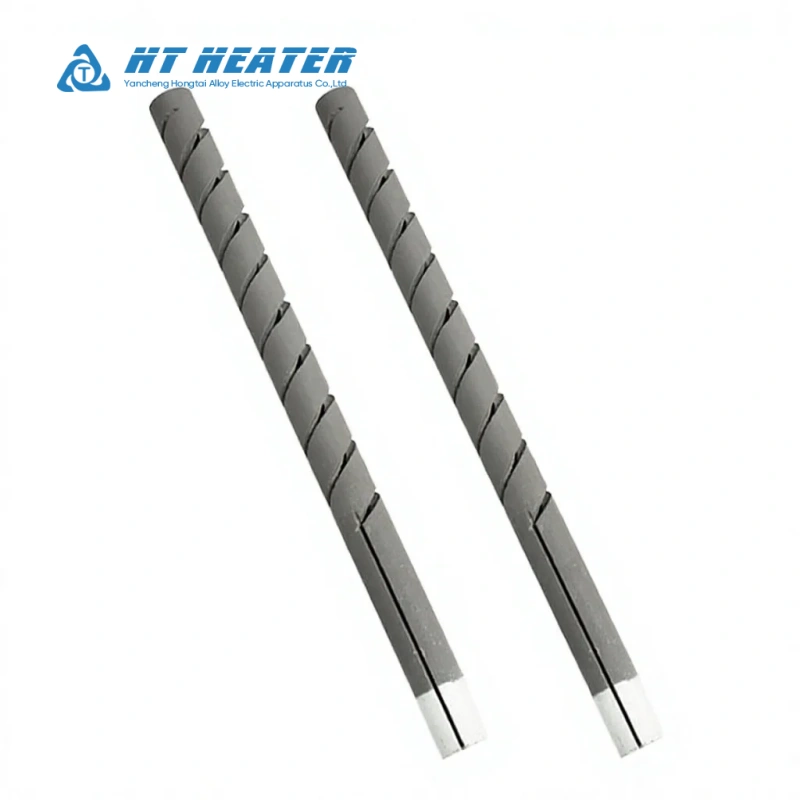

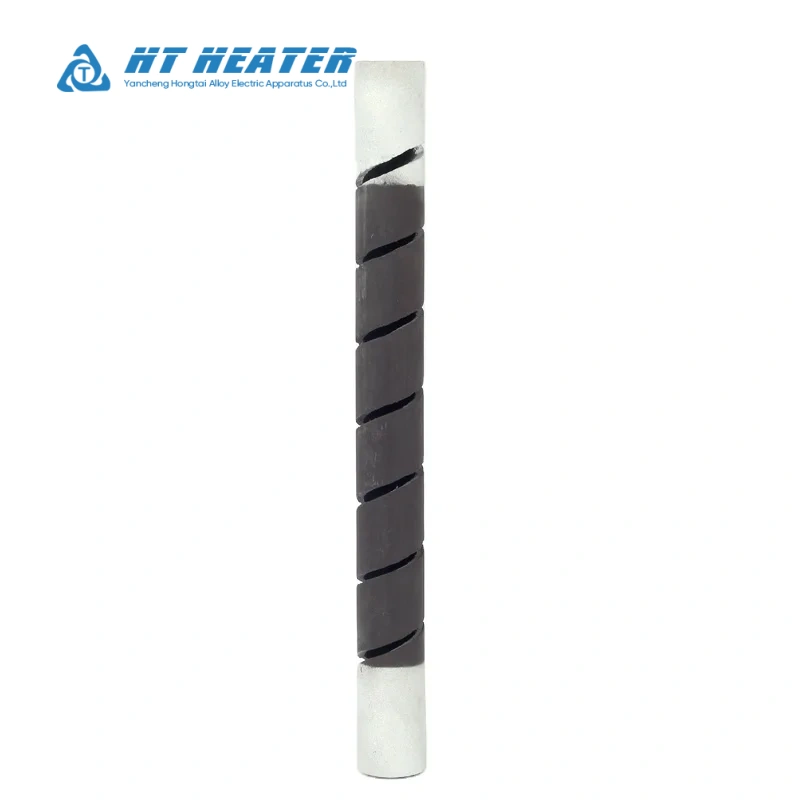

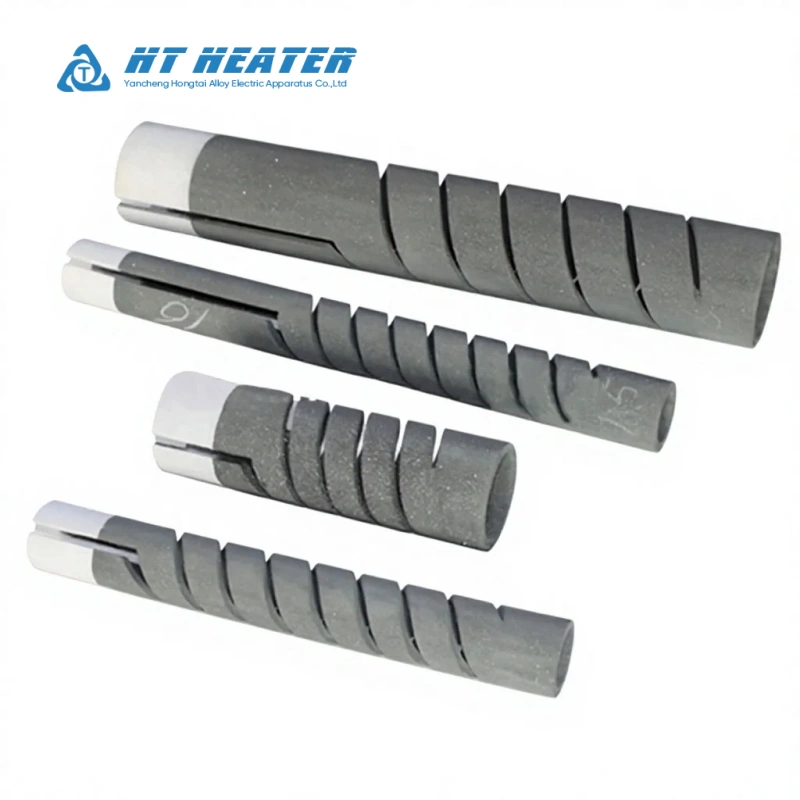

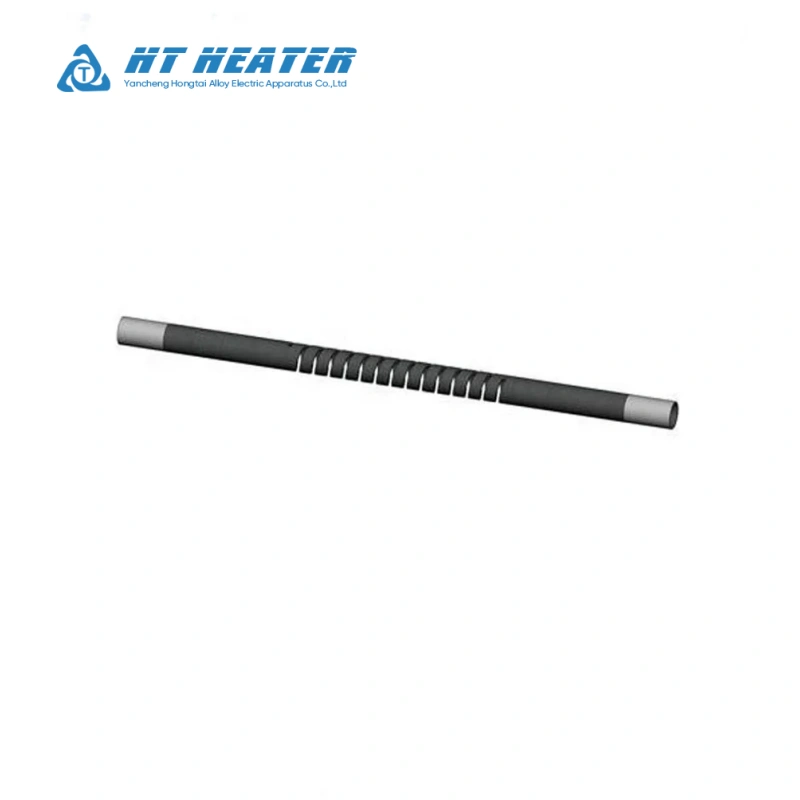

Available in standard Straight Rod configurations (such as ED/GD Standard Rods and DB/Dumbbell Types) as well as single-ended Single Spiral (SGR) and Double Spiral (SCR) geometries, these elements deliver exceptional design flexibility for roof-mounted, wall-mounted, or single-port penetration furnace layouts. Featuring low-resistance cold-end terminals to minimize electrical losses at furnace casing wall penetrations, SiC elements provide high mechanical strength, rapid thermal ramp-up, and uniform radiant heat distribution. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE and UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS for ultimate electrical resistance consistency and long service life.

• ✓ 1400°C High-Temperature Stability: Performs continuously up to 1400°C (2552°F) in air and protective neutral atmospheres without deformation or thermal shock failure.
• ✓ Straight & Spiral Configurations: Available in Standard Rod (ED/GD), Dumbbell (DB), Single Spiral (SGR), and Double Spiral (SCR) shapes to suit various kiln geometries.
• ✓ High Watt Density & Fast Ramp-Up: Handles high surface loading (up to 15–20 W/cm²), enabling fast furnace heating cycles and increased thermal efficiency.
• ✓ Protective Anti-Oxidation Layer: Self-forming SiO2 glass coating retards internal oxidation and extends element life in harsh firing environments.
• ✓ Low Cold-End Power Loss: Specially formulated low-resistance cold ends stay cool at furnace wall passthroughs, protecting electrical clamps and wiring.
• ✓ High Mechanical Strength & Rigidity: High-density sintered recrystallized structure prevents element sagging or bowing during long thermal runs.
• ✓ Reliable Quality: 30+ YEARS MANUFACTURING EXPERIENCE guarantees precise ceramic sintering, uniform resistance per unit length, and exact dimensional tolerances.
• ✓ Quality Assured: UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS including hot/cold state resistance testing, density checks, and dimensional tolerance inspections.
• ✓ Global Compliance: CE, RoHS, ISO 9001, and ISO 14001 certified.

Technical Specifications & Performance Data

Industrial Applications & Solutions

• Ceramic & Refractory Kilns: Primary heating elements for firing porcelain, sanitaryware, technical ceramics, and high-alumina refractories in shuttle and roller hearth kilns.
• Glass Industry Forehearths & Feeders: High-radiance top-heating elements for temperature conditioning in glass container and tableware forehearth channels.
• Powder Metallurgy & Sintering: Sintering structural steel parts, tungsten carbide tools, and magnetic ferrite cores in push-rod and belt furnaces.
• Heat Treatment Furnaces: Annealing, hardening, tempering, and forging furnaces operating in air or controlled neutral gas atmospheres.
• Laboratory & R&D Muffle Furnaces: High-efficiency benchtop box and tube muffle furnaces requiring precise thermal uniformity up to 1400°C.

HT-Heater vs Standard Market SiC Elements

Installation & Operating Guidelines

• Resistance Batch Matching: When replacing elements in a multi-element furnace zone, install elements from the same resistance calibration group ($\pm 5\%$) to maintain uniform current draw across parallel and series branches.
• Handle with Care: SiC elements are hard but brittle ceramics at room temperature. Avoid bending, impact, or mechanical stress during unpacking and installation.
• Flexible Connection Straps: Always connect cold-end terminals to power busbars using flexible aluminum braided connection straps. Do not clamp rigid solid copper wires directly to the terminals, as thermal expansion will cause terminal cracking.
• Thermal Expansion Clearance: Ensure adequate radial and axial clearance in ceramic wall passage sleeves (cut holes 5–10 mm larger than the element OD) to allow free thermal expansion without binding.
• Managing Resistance Aging: Over hundreds of operating hours, SiC elements gradually increase in electrical resistance (aging). Use a multi-tap transformer or SCR power regulator to gradually increase voltage and maintain constant power output over time.

Customer Success Stories

Case 1:

Sanitaryware Tunnel Kiln Manufacturer (Turkey)

• Application: High-capacity tunnel kiln firing ceramic sanitaryware continuously at 1350°C.

• Challenge: Rapid resistance aging and element breakage with standard black SiC rods required frequent voltage adjustments and furnace downtime.

• Solution: HT-Heater High-Purity Green SiC Straight Rods (ED Type Ø 30/300/400 mm).

• Results: ELEMENT OPERATIONAL LIFE EXTENDED BY 60%. “HT-Heater’s SiC elements show remarkably slow aging characteristics. HT-Heater UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS, and our batch temperature uniformity has never been better.”

Case 2:

Glass Container Forehearth Operator (Mexico)

• Application: Glass forehearth conditioning channel operating at 1380°C.

• Challenge: Port penetration restrictions required single-ended electrical connections from the roof.

• Solution: Double Spiral SiC Heating Elements (SCR Type) with single-ended cold terminals.

• Results: MAINTENANCE SWAP TIME REDUCED BY 70%. “30+ YEARS MANUFACTURING EXPERIENCE is apparent in their double spiral cutting precision. Single-ended wiring made top-replacement effortless without shutting down the channel.”

Pricing & Procurement Options

• Standard Production: MOQ 5 pieces. BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE ensuring exact resistance matching and dimensional repeatability across production lots. Tiered volume discounts available for 50+ unit orders.

• Lead Times: Standard Catalog Dimensions (Straight Rods OD 12–30 mm): In stock, 3-5 days. Custom Single/Double Spiral Shapes or Heavy Diameters (OD 35–54 mm): 7-10 days. Express air freight with protective wooden crating.

• Global Logistics: Encased in individual shock-absorbing foam tubes within reinforced wooden export crates to prevent transportation breakage.

• Sample Orders: Custom sample elements produced upon CAD drawing and electrical specification approval. Every shipment UNDERGOES MULTIPLE RIGOROUS QUALITY CHECKS prior to dispatch.

Global Certifications & Compliance

• CE Marking
  Fully compliant with European safety and environmental standards.
• LVD Compliance
  Low Voltage Directive tested for continuous thermal load safety.
• RoHS Compliant
  Constructed using environmentally safe, lead-controlled brass alloys.
• ISO 9001
  Certified quality control covering CNC machining, coil pressing, and electrical testing.

Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.

Comprehensive After-Sales Support

• • Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.

  • Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.

  • Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.

Ready to Optimize Your Injection Molding?

Next Steps:

• 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
• 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
• 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
• 📞 Contact Hot Runner Experts – Response within 2 hours
