Product Overview

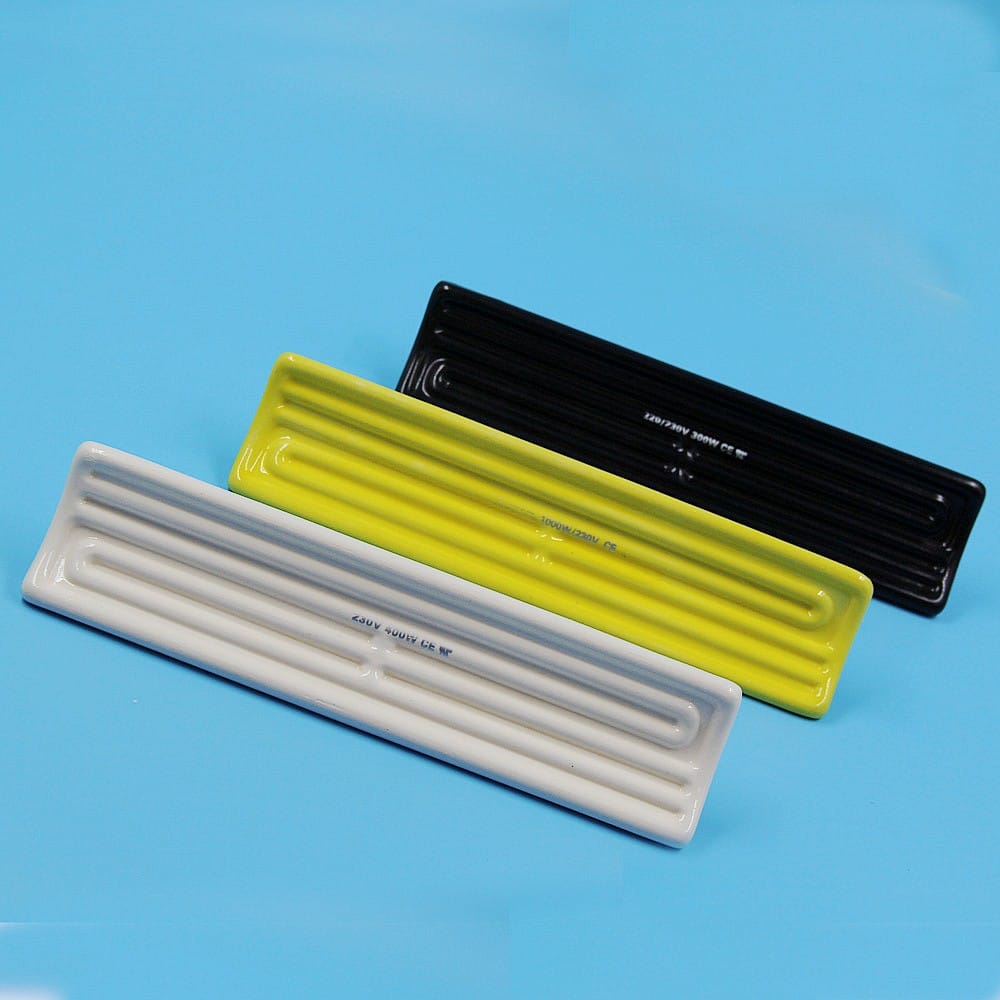

Our Full Trough Ceramic Infrared Heater (FTE Series) is a heavy-duty, solid-cast heating element designed for high-efficiency continuous industrial processes. Engineered to produce long-wave infrared radiation in the 2 to 10-micron range, this 1000W heater operates at the exact wavelength where plastics and most other materials achieve their maximum heat absorption. Its solid construction ensures a long operating life even in harsh manufacturing environments.
Key Features
-
Optimal Wavelength: Emits highly efficient 2–10 µm infrared radiation for rapid and uniform material heating.
-
Robust Solid Casting: The resistance wire is fully embedded within a high-grade ceramic body, protecting it from oxidation, corrosion, and physical impact.
-
Standardized Dimensions: Designed as a universal 245 x 60 mm replacement element, compatible with most standard industrial reflector arrays and oven banks.
-
Consistent Heat Output: Delivers stable, uniform directional heat over long operating cycles.
-
Customizable Options: Available with integrated Type K thermocouples for precise, real-time temperature monitoring and control.
Technical Specifications
| Parameter | Specification |
| Model Series | FTE (Full Trough Element) |
| Dimensions (L x W) | 245 mm x 60 mm |
| Wattage | 1000 W |
| Standard Voltage | 230 V (Custom voltages available upon request) |
| Maximum Surface Temperature | 750°C (1382°F) |
| Useful Wavelength Range | 2 – 10 microns |
| Recommended Operating Distance | 100 mm – 200 mm |
| Thermocouple Option | Yes (Type K integrated) |
| Average Operating Life | Up to 10,000+ hours (depending on conditions) |
Core Applications
The high durability and continuous heat output of the FTE-1000W make it the standard choice for demanding industrial applications, including:
-
Thermoforming and vacuum forming ovens (heating plastic sheets).
-
Paint and powder coating curing.
-
Drying processes in printing and textiles.
-
Adhesive curing and shrinking packaging.
-
Food warming and processing.
Why Choose Our Solid Trough Heaters?
Unlike hollow elements designed for rapid cycling, our solid trough heaters are built for endurance. When your production line requires machinery to run consistently for hours or days at a time, the solid cast design ensures that the internal heating coil remains protected, providing stable, reliable performance shift after shift. Pair these elements with our highly polished stainless steel reflectors to maximize forward heat radiation and optimize your energy efficiency.
