Core Value

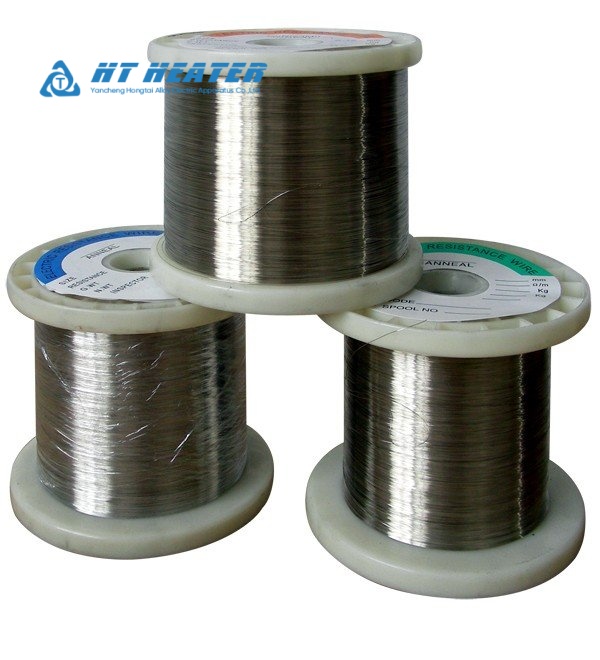

High-precision 0.02mm 0.03mm Nichrome Heating Resistance Wires (Electro-thermal Alloy Wires) engineered as the core heating element for micro-industrial heating tubes, hot runner nozzles, precision medical devices, and high-wattage industrial electric furnaces. Backed by 30+ years of industrial manufacturing experience, our ultra-fine resistance wires deliver consistent electrical resistivity, exceptional high-temperature oxidation resistance, and superior ductility under extreme thermal loads. Available in premium Nichrome Alloy (Ni80Cr20) for high-temp flexibility and corrosion resistance, as well as high-purity FeCrAl Alloy (Kanthal A1) for continuous working temperatures up to 1400°C (2552°F). Undergoes multiple rigorous quality checks to guarantee exact conductor diameter, uniform resistance per meter, and zero micro-defects. OEM/ODM customization available with 24-hour rapid quoting.

Fine Heating Resistance Wire Selection Guide

Select the optimal alloy composition and micro-wire gauge based on continuous operating temperatures, atmospheric exposure, and mechanical load:

• Ultra-Fine 0.02mm – 0.03mm Series: High-Precision Drawn Wire, Diameter 0.02 mm / 0.03 mm (AWG 52 / AWG 48), Ultra-High Resistance per Meter. Ideal for micro-cartridge heaters, medical probes, precision instruments, and high-density heating coils.

• Nichrome Ni80Cr20 High-Temp Series: 80% Nickel / 20% Chromium Matrix, Continuous Temp up to 1200°C, Non-Magnetic. Best for frequent thermal cycling, sealed heating tubes, and applications requiring zero brittleness after prolonged heating.

• FeCrAl (Kanthal A1) Ultra-High Temp Series: Iron-Chromium-Aluminum Matrix, Continuous Temp up to 1400°C, High Surface Load & Electrical Resistivity. Engineered for high-temperature industrial kilns, sintering furnaces, and cost-effective heating elements.

• Coiled & Spooled Precision Resistance Wire: Custom Spooled or Pre-Coiled Helical Wire, Uniform Pitch & Core Outer Diameter. Designed for direct insertion into MgO ceramic tubes and industrial heating core winders.

Material Performance: Nichrome (NiCr) vs. FeCrAl (Kanthal A1)

Understanding the core differences between Nichrome and FeCrAl alloys ensures optimal element lifespan and electrical stability:

Technical Specifications & Electrical Performance

• Available Wire Diameters: 0.02 mm, 0.03 mm (Custom fine gauges from 0.015 mm up to 8.0 mm available).

• Alloy Options: Ni80Cr20, Ni70Cr30, Ni60Cr15, FeCrAl Kanthal A1 (0Cr27Al7Mo2), FeCrAl 0Cr25Al5, FeCrAl 0Cr21Al6Bs.

• Resistance Tolerance: Controlled within ± 3% per spool / meter to maintain precise wattage ratings.

• Concentricity & Roundness: Outer diameter roundness tolerance controlled within ± 0.001 mm for ultra-fine wires.

• Elongation at Break: 15% – 25% annealed state, allowing tight spiral coiling without snapping.

• Manufacturing Provenance: Backed by 30+ years manufacturing experience in precision wire drawing, vacuum melting, and bright annealing.

• Quality Assurance: Every batch undergoes multiple rigorous quality checks, including microscopic surface inspection, continuous resistance testing, and tensile strength validation.

• Certifications: ISO 9001, RoHS, REACH compliance documentation. Full Certificate of Analysis (COA) included with every order.

Key Engineering Advantages for Industrial Applications

• Micro-Gauge Precision: Advanced cold-drawing processes yield uniform 0.02mm and 0.03mm wire profiles without internal micro-cracks or surface burrs.

• Rapid Thermal Response: Low thermal mass allows instant Joule heating, enabling rapid temperature ramp-ups and precise PID control.

• High Oxidation Immunity: Forms a dense, self-passivating oxide layer (Al₂O₃ for FeCrAl / Cr₂O₃ for NiCr) that prevents continuous thermal corrosion.

• Exceptional Coil Stability: High tensile ductility permits winding onto tiny mandrels without wire deformation or resistance hot spots.

• 30+ Years Metallurgical Expertise: 30+ years of specialized production experience guarantees exact alloy chemistry and long-term heating coil longevity.

Industrial Applications & Compatible Equipment

• Cartridge Heaters & Hot Runner Nozzles: Primary resistance wire coil inside high-watt-density industrial heating rods.

• Ceramic Bobbin & Radiant Tube Heaters: Woven resistance wire core for furnace heating elements, kilns, and heat treating tubes.

• Sealing Bars & Shrink Wrapping Lines: Instant-heat impulse cutting wire for packaging machinery, film sealers, and plastic fabrication.

• Medical Devices & Laboratory Instruments: Precision micro-heating wire for analytical sensors, sterilizers, and thermal fluid controllers.

Engineering Comparison: HT-Heater vs. Standard Market Resistance Wire

Step-by-Step Coiling & Handling Guidelines

• Unspooling Tension: Unwind ultra-fine 0.02mm / 0.03mm wire using constant, controlled tension devices to prevent stretching or wire breakage.

• Mandrel Coiling: When winding helical heating coils, select a mandrel diameter compatible with the wire’s spring-back properties to achieve accurate pitch.

• Pitch Uniformity Inspection: Check the coiled wire under magnification to ensure adjacent turns do not touch, preventing internal electrical shorting.

• Insulation Placement: Thread the coiled resistance wire through high-purity MgO ceramic insulator tubes or embed in compaction powder.

• Initial Burn-In: Heat the newly wound wire gradually in air to allow a protective oxide layer to form naturally across the surface.

Customer Success Stories

• Micro-Cartridge Heater OEM (Japan): Heater defect rate reduced to 0.01%. “Using HT-Heater 0.02mm Nichrome wire solved our wire breakage issues during high-speed coiling. HT-Heater undergoes multiple rigorous quality checks, delivering flawless consistency.”
• Industrial Furnace Builder (Germany): Heating element lifespan extended by 35%. “30+ years manufacturing experience is clear in their Kanthal A1 FeCrAl wire quality. The resistance stability across batch deliveries is exceptional.”

Frequently Asked Questions (Technical FAQ)

• Q1: What is the main application for ultra-fine 0.02mm and 0.03mm heating wire? A: Ultra-fine resistance wires are primarily used in miniature industrial heating devices, high-resistance micro-coils, medical thermal probes, hot-wire anemometers, and specialized precision cartridge heaters.
• Q2: Should I select Nichrome (Ni80Cr20) or FeCrAl (Kanthal A1) for my heating tube? A: Choose Nichrome (Ni80Cr20) if your element experiences frequent thermal cycling, mechanical shock, or high vibration. Choose FeCrAl (Kanthal A1) if you require higher operating temperatures (up to 1400°C) and higher electrical resistivity at a lower material cost.
• Q3: Can HT-Heater supply pre-coiled resistance wire according to my drawing specs? A: Yes, in addition to spooled raw wire, we offer custom winding services to produce helical coils, corrugated ribbon elements, and spiraled heating wires based on your engineering drawings.

Pricing & Procurement Options

• MOQ & Packaging: Standard spools available from stock (MOQ 1 spool / 0.5 kg for fine wires). Delivered on high-precision plastic spools in vacuum-sealed packaging.

• Quality & Documentation Provided: Certificate of Analysis (COA), Resistance Test Reports, and Wire Diameter Inspection Data included with every shipment.

• Inquiry Checklist: Please specify Wire Diameter (e.g., 0.02mm / 0.03mm), Alloy Grade (Ni80Cr20 / Kanthal A1), Resistance (Ω/m), and Quantity (kg or meters) when requesting a quote.

Global Certifications & Compliance

• CE Marking
  Fully compliant with European safety and environmental standards.
• LVD Compliance
  Low Voltage Directive tested for continuous thermal load safety.
• RoHS Compliant
  Constructed using environmentally safe, lead-controlled brass alloys.
• ISO 9001
  Certified quality control covering CNC machining, coil pressing, and electrical testing.

Quality Documentation: Certificate of Conformity (COC) and insulation resistance test reports included.

Comprehensive After-Sales Support

• • Warranty: 1-Year Comprehensive Warranty covering internal heating element and built-in sensor.

  • Technical Support: Application engineers available for wattage distribution calculation, thermocouple calibration, and nozzle fitting assistance.

  • Global Response Network: BACKED BY 30+ YEARS MANUFACTURING EXPERIENCE with technical inquiry feedback within 2 hours.

Ready to Optimize Your Injection Molding?

Next Steps:

• 📧 Request Custom Quote – Send your nozzle dimensions, wattage, voltage, and HT-CLW-450 drawing requirements.
• 🔧 Free Design Consultation – Work with our thermal engineers to optimize heat distribution and lead insulation.
• 📦 Order Test Samples – Evaluate thermal performance on your injection molding machine.
• 📞 Contact Hot Runner Experts – Response within 2 hours
