Introduction & The End of Stuffy Heat
For decades, the traditional sauna experience has been defined by one sensation: oppressive heat. By relying on a central stove to superheat the air (convection), old-school saunas often leave users feeling suffocated, with burning lungs and dry skin, yet surprisingly little core perspiration. The heat stays on the surface, and the experience is often more endurance test than therapy.
The next generation of wellness technology belongs to Full Spectrum Infrared. By utilizing advanced quartz infrared sauna heaters (combining Halogen and Carbon Fiber technologies), we simulate the healing spectrum of natural sunlight without the harmful UV rays. This radiant energy bypasses the air completely, penetrating deep into the subcutaneous tissue to trigger a profuse “Deep Detox” sweat at much lower, more comfortable ambient temperatures (45°C – 50°C).
To engineer a truly therapeutic experience, you must understand how different wavelengths interact with human skin. Consult our Industrial Quartz Heating Tubes: The Complete Engineering Guide to master the physics of IR-A, IR-B, and IR-C spectrums before designing your cabin.

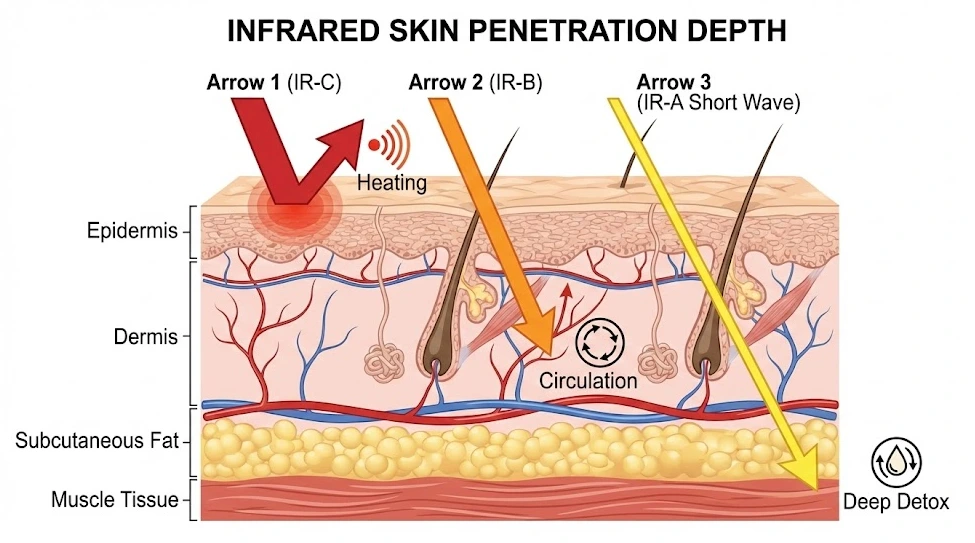

The ABCs of Infrared: Why “Full Spectrum” Matters
In the premium wellness market, a single-wavelength heater is no longer competitive. High-end spas demand “Full Spectrum” therapy, which requires a precise blend of three distinct infrared bands.
1. IR-A (Near Infrared / Short Wave)
- The Source: High-performance Halogen Tungsten Quartz emitters.
- The Benefit: Penetration. IR-A wavelengths (0.78 – 1.4 μm) are the only ones capable of traveling 4-5mm deep into the skin, reaching the dermis and subcutaneous layers. This deep heat stimulates mitochondria, accelerates wound healing, and promotes collagen production for anti-aging effects. Traditional ceramic heaters (which only emit Far Infrared) cannot provide this benefit.
2. IR-B (Medium Infrared / Medium Wave)
- The Source: Carbon Fiber Quartz emitters.
- The Benefit: Circulation. Operating in the 1.4 – 3.0 μm range, IR-B penetrates the epidermis, triggering a cardiovascular response similar to light exercise. It improves blood flow and reduces inflammation in soft tissues.
3. IR-C (Far Infrared / Long Wave)
- The Source: Both Carbon Fiber and Ceramic emitters.
- The Benefit: Comfort. These long waves (3.0 – 1000 μm) are absorbed by the very surface of the skin and the water in our sweat, providing that enveloping “warm blanket” sensation that relaxes the body.
The Hongtai Solution: Our “Vitae-Style” Full Spectrum heaters combine a tungsten filament (for IR-A) and a carbon filament (for IR-B/C) inside a single or twin quartz tube, delivering the complete “Life Light” spectrum in one installable unit.
Safety Core: Low EMF (Electromagnetic Field) Engineering
In the European and North American wellness markets, the “Invisible Killer”—Electromagnetic Fields (EMF)—is a primary consumer concern. Standard electrical heating wires can generate high magnetic fields, which some studies link to health risks with prolonged exposure.
1. The Market Fear
If your sauna cabin measures high in EMF (e.g., > 10 mG), health-conscious consumers and bio-hackers will reject it. They are looking for a sanctuary, not a microwave.
2. Hongtai’s Cancellation Technology
To solve this, Hongtai engineers utilize a proprietary Counter-Wound Filament technique inside our infrared sauna heaters.
- The Logic: We run the internal heating element wiring in opposing pairs. The magnetic field generated by the “outgoing” current is perfectly cancelled out by the equal and opposite magnetic field of the “returning” current.
- The Result: This cancellation effect drives the EMF output down to near-background levels (typically < 2 mG at surface contact), compliant with the strictest Swedish and Californian safety standards.
Visual Comfort: Ruby Red & Frosted Filters
While IR-A (Short Wave) provides the best therapy, it comes with a downside: Glare. A raw halogen bulb is blindingly bright (2400K). In a relaxing spa environment, no one wants to sit in front of a searchlight.
1. Ruby Red Quartz (The Amber Glow)
By utilizing doped Ruby Quartz glass, we create an optical high-pass filter. The glass absorbs 95% of the harsh visible light (blue/green/yellow) while letting the healing infrared heat pass through. The result is a warm, candle-like amber glow that enhances the relaxing atmosphere of the cabin.
2. Frosted / Satin Quartz (The Soft Diffusion)
For an even softer look, we offer Frosted (Satin) quartz tubes. The acid-etched surface diffuses the light emissions, turning the point-source filament into a gentle, glowing bar of light, eliminating all sharp shadows and glare.
Instant Control: Quartz vs. Ceramic/Carbon Panels
Why are premium OEMs switching from carbon panels to quartz tubes? Speed and Control.
1. Zero Pre-Heat Time
- Old Tech: Carbon panels and ceramic heaters are slow thermal masses. Users must turn the sauna on 20 minutes before they want to use it.
- New Tech: Quartz infrared sauna heaters have a thermal response time of < 1 second. A user can walk into a cold cabin, hit “Start,” and immediately feel the therapeutic heat. This “On-Demand” capability is a massive selling point for busy modern lifestyles.
2. Linear Dimmability
Quartz heaters act like lightbulbs—they can be dimmed instantly. This allows OEMs to design sophisticated “Zone Control” programs.
- Example: You can run the back heaters at 100% intensity for deep tissue work, while dimming the front calf heaters to 60% to prevent stinging, all adjustable in real-time via a touchscreen controller.

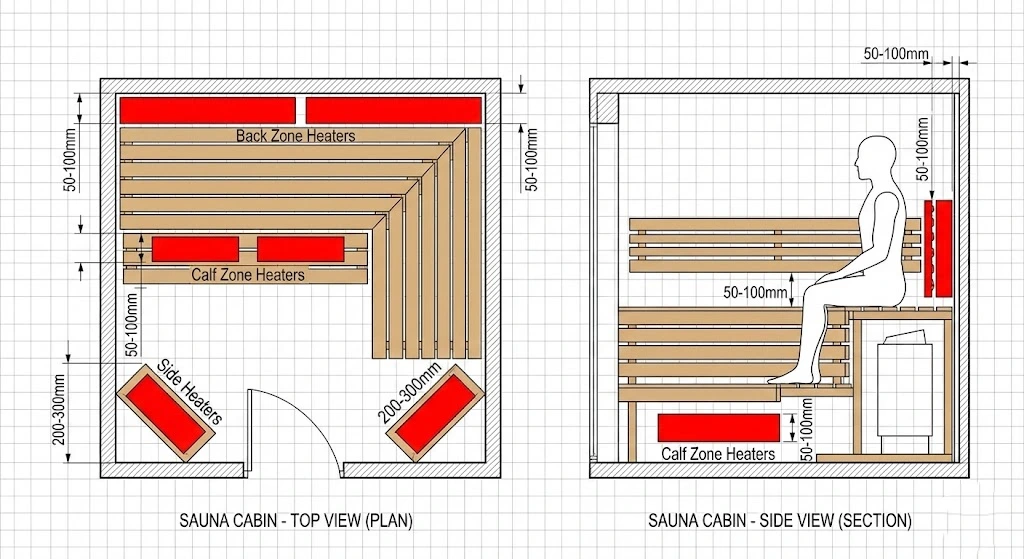

OEM Customization: Fitting Your Cabin Design
We don’t just sell tubes; we sell integrated heating sub-assemblies.
1. Back Heaters (The Spine Zone)
The most critical therapy zone is the spine. We recommend custom U-Shape or W-Shape quartz tubes. These wide-profile heaters provide a broad, uniform field of radiation that covers the entire back surface area, rather than a thin vertical strip of heat from a straight tube.
2. Flocked Safety Grills
To meet UL/CE burn safety regulations, the surface temperature of the heater grill must be touch-safe. Hongtai offers Flocked Metal Grills (sprayed with a velvet-like heat-resistant coating). Even if a user accidentally leans against the heater mesh, the flocking acts as an insulator, preventing skin burns.
FAQ: Questions from Sauna Manufacturers
What is the lifespan of full spectrum quartz heaters?
Our industrial-grade quartz emitters are rated for 5,000 hours. In a commercial gym running 10 hours a day, that is 1.5 years. In a residential home sauna used 1 hour a day, that is over 13 years of service life.
Does infrared heat damage the eyes?
Unfiltered short-wave radiation can be harmful to the retina over long periods. This is why we mandate the use of Ruby Quartz or Gold-Coated filters for all eye-level sauna heaters. These filters block the high-energy visible and UV spectrum, ensuring the emitter is completely safe for human vision (IEC 62471 Exempt Group).
Can I retrofit an existing dry sauna with infrared?
Yes, and it is a popular upgrade. Our modular infrared heater housings are compact and surface-mountable. You can screw them directly onto the cedar walls of an existing traditional sauna without removing the rock stove, creating a high-value “Hybrid Sauna” that offers both dry heat and infrared therapy.
Conclusion: Build the Tesla of Saunas
Modern wellness consumers are no longer satisfied with just “sweating.” They want Bio-Hacking tools. They demand Full Spectrum therapy, Low EMF safety, and instant gratification.
If you are still building cabins with slow, high-EMF ceramic heaters, you are building the technology of the past. Upgrade to Full Spectrum Infrared Sauna Heaters and give your customers a true therapeutic experience.
Ready to upgrade your cabin specs? Request our OEM Sauna Component Catalog, featuring our complete range of Low EMF Ruby Quartz emitters, U-Shape back heaters, and touch-safe flocked grills.
