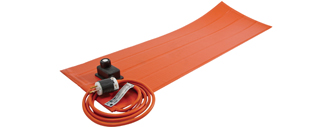

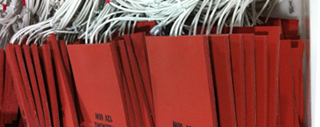

Silicone rubber heater

Silicone rubber heater produced by Hongtai is extremely thin, light and flexible. And the heater with the silicon rubber electric heating plate can transfer heat to any required place. In processing, it can improve heat transfer, accelerate temperature rising and reduce power need. Glass fiber-reinforced silicon rubber can ensure the heater to be stable in dimension, without losing flexibility.
(1) Design according to actual shape and dimension, and adopt three-dimensional geometry to satisfy the requirements of your equipment.
(2) Moisture-proof chemical defense silicon rubber material makes the service life of heater much longer.
(3) It can be simply pasted or attached to your component by vulcanizing, adhesive or fastener, etc.

Applications

  • Freezing and compression prevention for various instruments and devices.
  • Medical equipment such as blood analyzer, test tube heater.
  • Computer auxiliary equipment, such as laser printer.
  • Vulcanized surface of plastic film.

Technical Data

Rated Power

Customized

Lead Length

200mm

Rated voltage

12V—380V

Wire tension

15N×15N

Maximum size

1000m—1200m

Minimum size

20mm×20mm

Ambient Temperature

--60-----250℃

Highest temperature

250℃

Maximum thickness

1.5mm—4mm

Withstand voltage

1.5KV

Insulation resistance

≥5MΩ

Size deviation

±0.5﹪

Power deviation

±5﹪

Wire Type

Silicone braided wire

Oil drum heater

It is beneficial to take out liquid and coagulum in drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.

Product Specification




Oil Drum Heater
200Liter

Oil Drum Heater
20Liter

Oil Drum Heater
200Liter

Oil Drum Heater
200Liter

Size

250×1740

200×860

125×1740

150*1740

Capacity

200V 2000W

200V 800W

200V 1000W

200V 1000w

The temperature regulates

30~150℃

Weight

Invite:0.5kg

Invite:0.4kg

Invite:0.3kg

Invite:0.35kg

For other size,please consult Hongtai.
